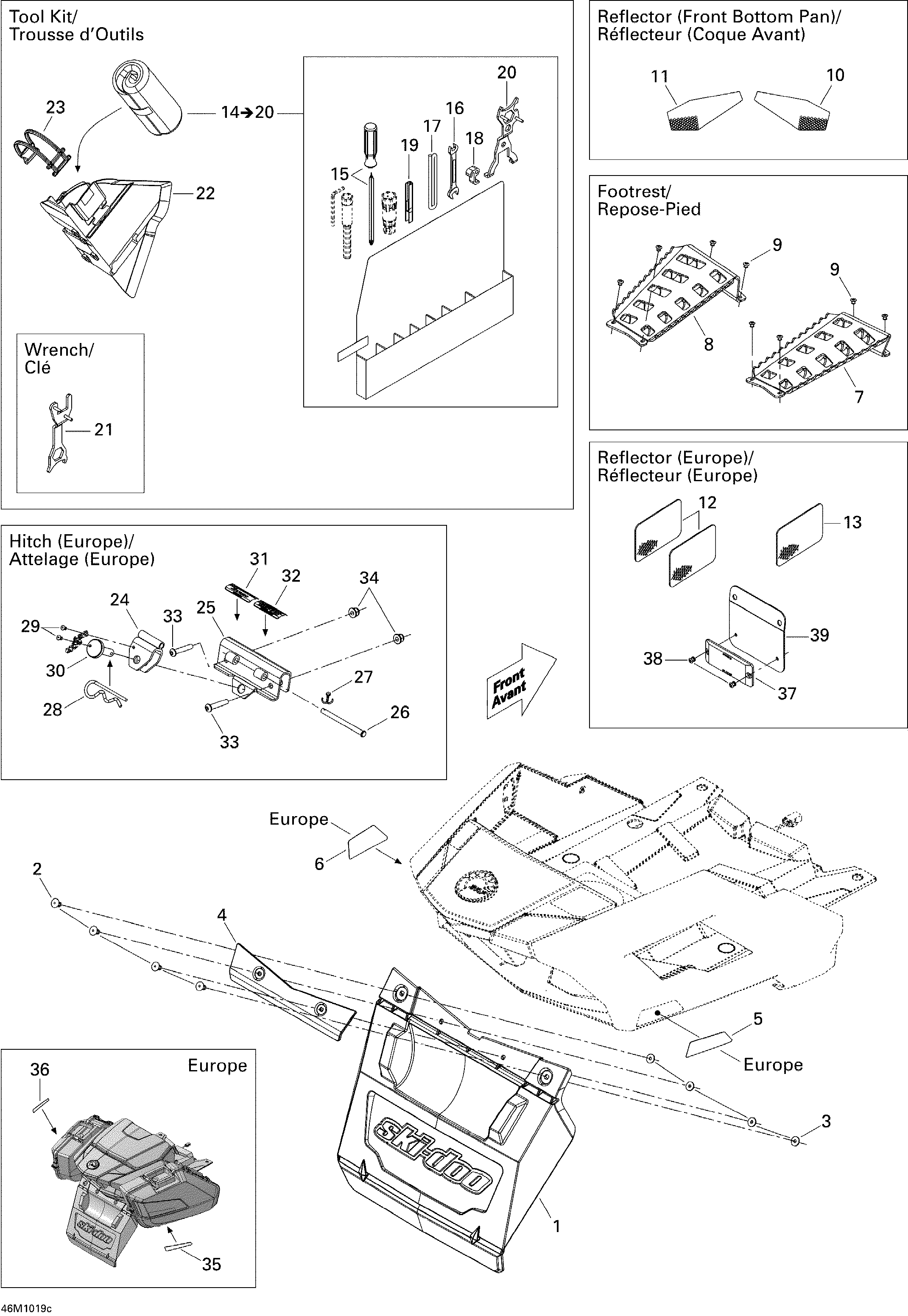

09- Utilities SE 1200 для BRP Ski-Doo Grand-Touring SE 1200 - 2010
-
№АртикулНазвание
-
1520000659 Snow GuardSnow Guard
-
2293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
3517124300 WasherWasher
-
4520000751 ReinforcementReinforcement
-
5520000803 RH Rear Reflector. EuropeRH Rear Reflector. Europe
-
6520000804 LH Rear Reflector. EuropeLH Rear Reflector. Europe
-
7520000768 RH FootrestRH Footrest
-
8520000769 LH FootrestLH Footrest
-
9293150102 Rivet 3/16Rivet 3/16
-
10520000759 RH Front ReflectorRH Front Reflector
-
11520000760 LH Front ReflectorLH Front Reflector
-
12520000271 Reflector, Amber. EuropeReflector, Amber. Europe
-
13415037900 Reflector, White. EuropeReflector, White. Europe
-
14529000050 Tool Kit. Includes 14 to 20Tool Kit. Includes 14 to 20
-
15529000004 Screw DriverScrew Driver
-
16529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
17412500200 Starter Rope, MeterStarter Rope, Meter
-
18529019400 Starter GripStarter Grip
-
19529035501 Spacing ToolSpacing Tool
-
20520000956 Wrench SuspensionWrench Suspension
-
21520000721 WrenchWrench
-
22520000720 Tool Kit RackTool Kit Rack
-
23520000528 LatchLatch
-
24511000554 Support. EuropeSupport. Europe
-
25511000588 Hitch Plate. EuropeHitch Plate. Europe
-
26511000520 Clevis Pin. EuropeClevis Pin. Europe
-
27371800200 Cotter Pin. EuropeCotter Pin. Europe
-
28114045200 Hair Pin. EuropeHair Pin. Europe
-
29390404300 Pop Rivet 5/32''. EuropePop Rivet 5/32''. Europe
-
30511000555 Pin. EuropePin. Europe
-
31516003037 Warning Decal-Security-English. EuropeWarning Decal-Security-English. Europe
-
32516003038 Warning Decal-Security-French. EuropeWarning Decal-Security-French. Europe
-
33205484546 Socket Head Screw M8 X 45. EuropeSocket Head Screw M8 X 45. Europe
-
34233281414 Hex. Flanged Elastic Nut M8. EuropeHex. Flanged Elastic Nut M8. Europe
-
35520000831 RH Rear Reflector. EuropeRH Rear Reflector. Europe
-
36520000832 LH Rear Reflector. EuropeLH Rear Reflector. Europe
-
37510004350 Lens. EuropeLens. Europe
-
38390402000 Pop Rivet 3/16''. EuropePop Rivet 3/16''. Europe
-
39520000933 Reflector Support. EuropeReflector Support. Europe
