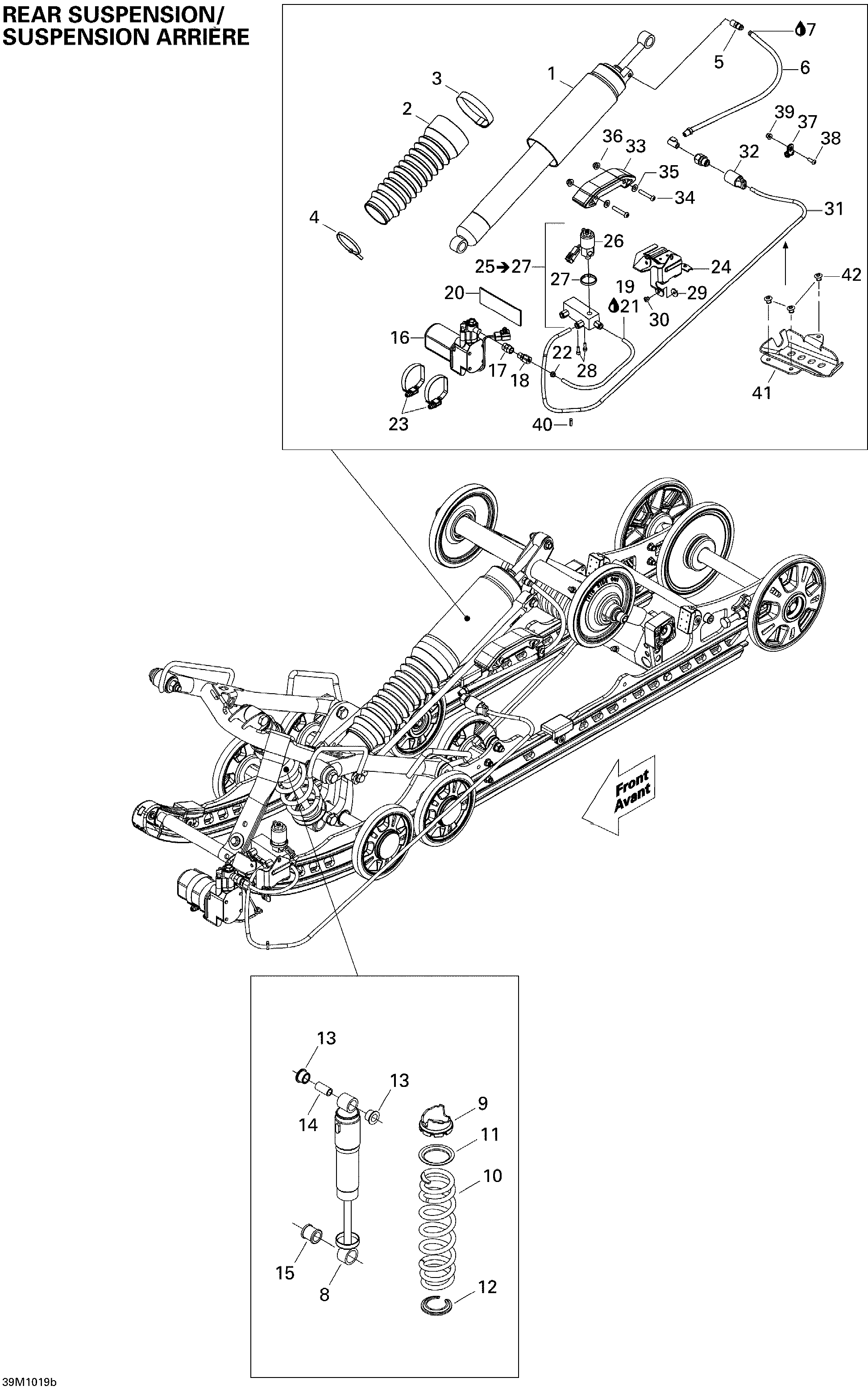

08- Rear Suspension Shocks 2, SE для BRP Ski-Doo Grand-Touring SE 1200 - 2010
-
№АртикулНазвание
-
1503191824 Rear Shock Ass'yRear Shock Ass'y
-
2570278300 Protection BootProtection Boot
-
3293650064 Tridon ClampTridon Clamp
-
4293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
5503191939 Male Pneumatic ConnectorMale Pneumatic Connector
-
6503191933 Pneumatic Hose Ass'yPneumatic Hose Ass'y
-
7293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
8503191887 Center ShockCenter Shock
-
9505070150 Adjustment CamAdjustment Cam
-
10503191882 SpringSpring
-
11503191872 Spring GuideSpring Guide
-
12503192029 Spring StopperSpring Stopper
-
13503189117 CushionCushion
-
14503189282 BushingBushing
-
15503189271 CushionCushion
-
16503191735 CompressorCompressor
-
17503191825 Female Nipple 1/8 NPTFemale Nipple 1/8 NPT
-
18503191903 Ckeck ValveCkeck Valve
-
19415129507 HoseHose
-
20503191940 Rubber DamperRubber Damper
-
21293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
22503192028 Insert BushingInsert Bushing
-
23293650090 Norma Gear ClampNorma Gear Clamp
-
24503191932 Pressure Collector BracketPressure Collector Bracket
-
25503191928 Pressure Collector Ass'y. Includes 25 to 27Pressure Collector Ass'y. Includes 25 to 27
-
26503189097 ValveValve
-
27414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
28205041284 Socket Head Screw M4 X 12Socket Head Screw M4 X 12
-
29517124300 WasherWasher
-
30390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
31415129507 HoseHose
-
32503191826 CapCap
-
33503191935 Protector PadProtector Pad
-
34250000406 Socket Screw Head Flange M6 X 35Socket Screw Head Flange M6 X 35
-
35224061121 Flat WasherFlat Washer
-
36232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
37705600459 ClampClamp
-
38235551494 Torx Screw M5 X 14Torx Screw M5 X 14
-
39233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
40414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
41518326391 Air Suspension BracketAir Suspension Bracket
-
42293150102 Rivet 3/16Rivet 3/16
