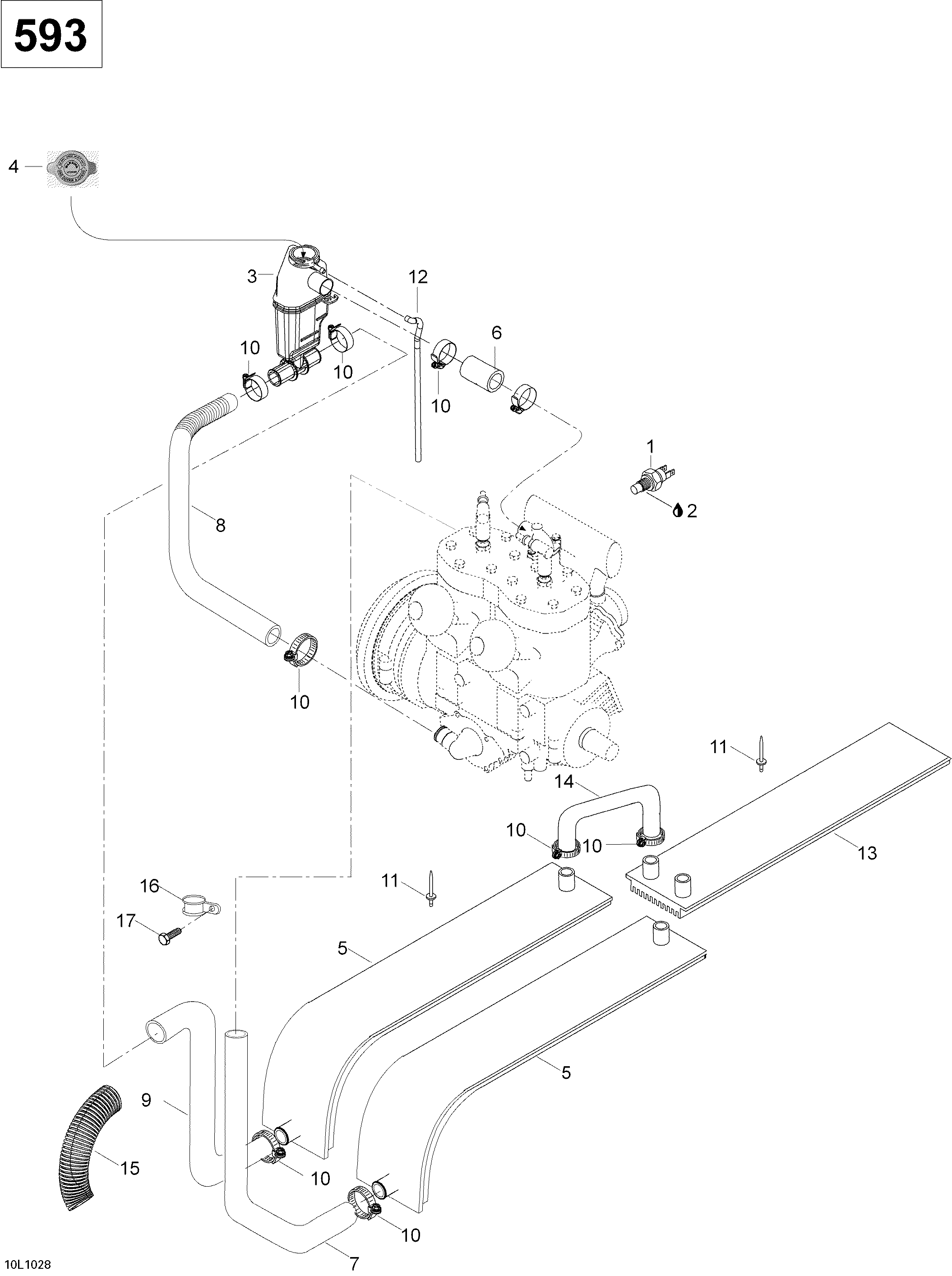

01- Cooling System для BRP Ski-Doo Skandic WT 600 - 2010
-
№АртикулНазвание
-
1515176043 Temperature SensorTemperature Sensor
-
3509000134 Tank CoolantTank Coolant
-
4509000187 Pressure CapPressure Cap
-
5605151690 RH RadiatorRH Radiator
-
5605151689 LH RadiatorLH Radiator
-
6605354602 HoseHose
-
7605353565 HoseHose
-
8605355768 HoseHose
-
9605353567 HoseHose
-
10408800400 Tridon Gear ClampTridon Gear Clamp
-
11M36108 RivetRivet
-
12415080200 Hose, PolyurethaneHose, Polyurethane
-
13605351687 Radiator, RearRadiator, Rear
-
14605253904 Front Radiator HoseFront Radiator Hose
-
15M28036 TubingTubing
-
16M27011 ClipClip
-
17M40327 Allen Screw M6 X 12Allen Screw M6 X 12
