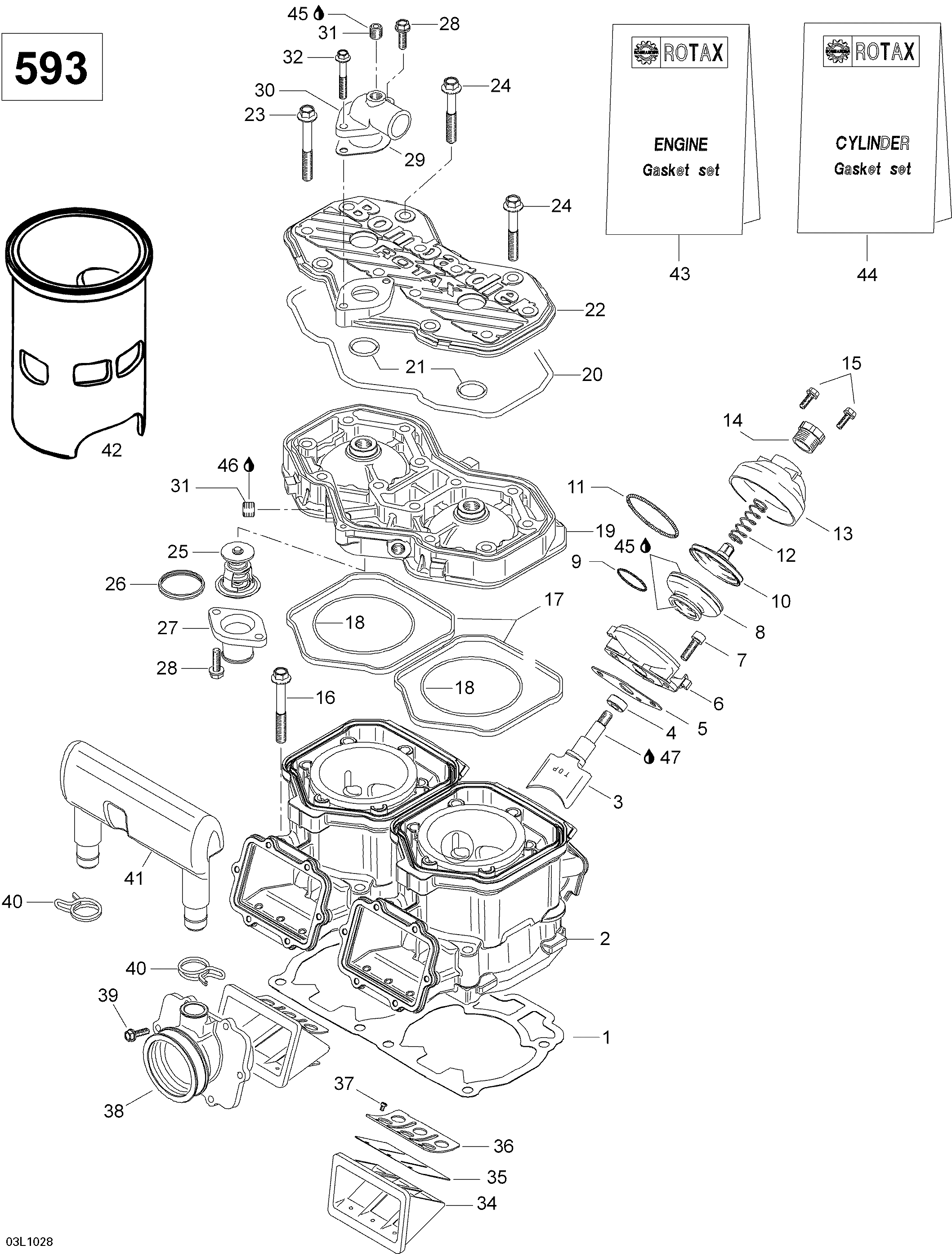

01- Cylinder and Cylinder Head для BRP Ski-Doo Skandic WT 600 - 2010
-
№АртикулНазвание
-
1420931581 Double Gasket 0.4 mmDouble Gasket 0.4 mm
-
1420931583 Double Gasket 0.5 mmDouble Gasket 0.5 mm
-
1420931582 Double Gasket 0.6 mmDouble Gasket 0.6 mm
-
1420931962 Double Gasket 0.7 mmDouble Gasket 0.7 mm
-
1420431423 Double Gasket 0.8 mmDouble Gasket 0.8 mm
-
2420613628 Cylinder With SleeveCylinder With Sleeve
-
3420854370 Exhaust ValveExhaust Valve
-
4420950730 Oil SealOil Seal
-
5420250239 GasketGasket
-
6420854266 Valve HousingValve Housing
-
7205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
8420260723 Exhaust BellowsExhaust Bellows
-
9420838255 Hose SpringHose Spring
-
10420854449 Exhaust ValveExhaust Valve
-
11420939280 Hose SpringHose Spring
-
12420239948 SpringSpring
-
13420911552 Valve CoverValve Cover
-
14420241221 Adjuster ScrewAdjuster Screw
-
15420841555 Hex. Tapping Screw M5 X 20Hex. Tapping Screw M5 X 20
-
16420640951 Hex. Screw M8 X 68.5Hex. Screw M8 X 68.5
-
17420931590 Rubber RingRubber Ring
-
18293300026 O-RingO-Ring
-
19420613845 Cylinder HeadCylinder Head
-
20420950320 O-RingO-Ring
-
21420430782 O-RingO-Ring
-
22420923465 Cylinder Head CoverCylinder Head Cover
-
23420841306 Hex. Collar Screw M8 X 65Hex. Collar Screw M8 X 65
-
24420941627 Hex. Screw M8 X 56.5Hex. Screw M8 X 56.5
-
25420922519 ThermostatThermostat
-
26420931272 Sealing RingSealing Ring
-
27420922025 Bent Outlet SocketBent Outlet Socket
-
28420941250 Hex. Tapping Screw M6 X 20Hex. Tapping Screw M6 X 20
-
29420850338 GasketGasket
-
30420922062 Bent Outlet SocketBent Outlet Socket
-
31420240480 Plug ScrewPlug Screw
-
32420941451 Hex. Collar Screw M6 X 40Hex. Collar Screw M6 X 40
-
33420924519 Reed Valve Ass'y. Includes 33 to 37Reed Valve Ass'y. Includes 33 to 37
-
35420924532 Reed PedalReed Pedal
-
36420924539 Reed Pedal StopReed Pedal Stop
-
37420941215 Phillips Screw M3 X 5Phillips Screw M3 X 5
-
38420867862 Carburetor SocketCarburetor Socket
-
39420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
40420851440 ClampClamp
-
41420867815 Intake ResonatorIntake Resonator
-
42420923443 Cylinder SleeveCylinder Sleeve
-
43420893070 Gasket Set, EngineGasket Set, Engine
-
44420893075 Gasket Set, CylinderGasket Set, Cylinder
-
45413707000 Dow Corning 111, 150 gDow Corning 111, 150 g
-
46293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
47420297433 Molykote G-N, 50 gMolykote G-N, 50 g
