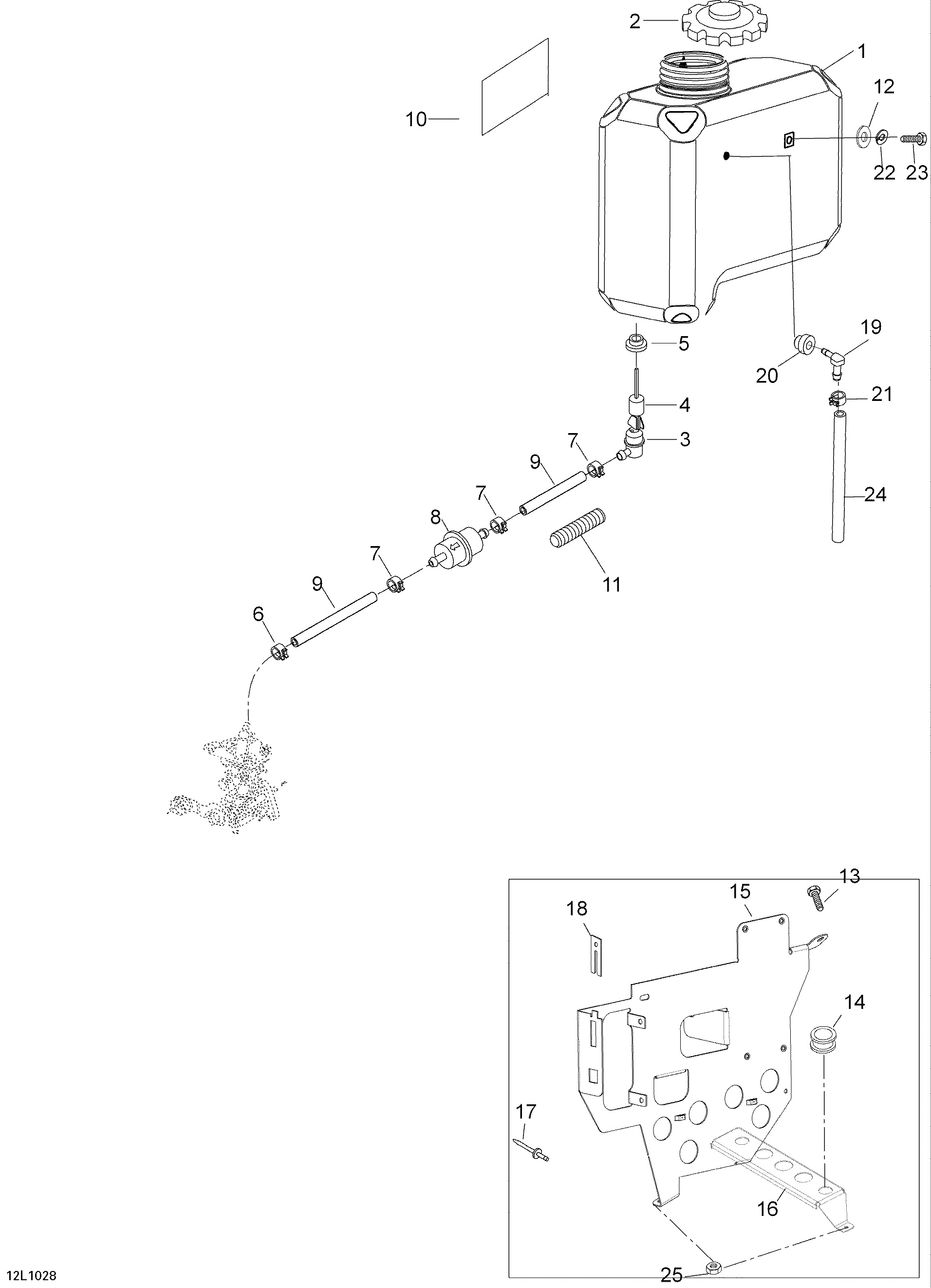

02- Oil System для BRP Ski-Doo Skandic WT 600 - 2010
-
№АртикулНазвание
-
1605155569 Oil TankOil Tank
-
2519000044 CapCap
-
3605452095 Oil SensorOil Sensor
-
5570023000 Insulating RingInsulating Ring
-
6414420700 Spring ClipSpring Clip
-
7414415200 Universal Spring ClampUniversal Spring Clamp
-
8414536500 FilterFilter
-
9415080700 Polyurethane Hose, 8 mmPolyurethane Hose, 8 mm
-
10M5443578 Reflecting SheetReflecting Sheet
-
11M28015 HousingHousing
-
12M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
13M40327 Allen Screw M6 X 12Allen Screw M6 X 12
-
14M28022 GrommetGrommet
-
15605255412 Reservoir SupportReservoir Support
-
16605355414 Air Intake Silencer SupportAir Intake Silencer Support
-
17M36108 RivetRivet
-
18M5447032 LockLock
-
19414580700 Male ConnectorMale Connector
-
20570135100 GrommetGrommet
-
21414554800 Spring ClampSpring Clamp
-
22234161471 Lock Washer M6, BlackLock Washer M6, Black
-
23207161044 Hex. Screw M6 X 10Hex. Screw M6 X 10
-
24415080200 Hose, PolyurethaneHose, Polyurethane
-
25M33200 Nut M6Nut M6
