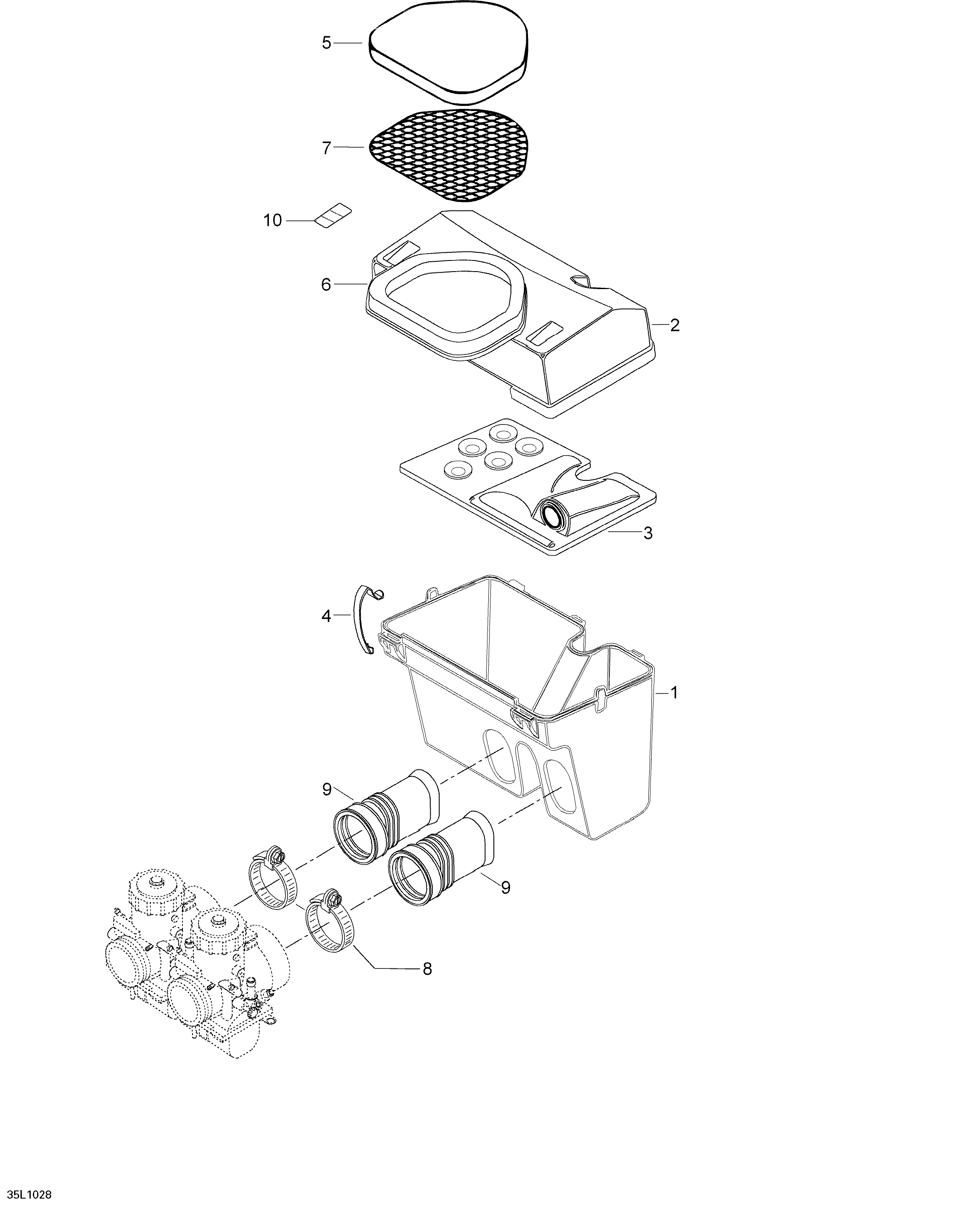

02- Air Intake System для BRP Ski-Doo Skandic WT 600 - 2010
-
№АртикулНазвание
-
1M5148040 Air IntakeAir Intake
-
2M5147636 Intake CoverIntake Cover
-
3M5346744 Tube PlateTube Plate
-
4M5448209 Lock SpringLock Spring
-
5605349057 Air FilterAir Filter
-
6M5342959 Sealing FoamSealing Foam
-
7M5342960 Intake GrillIntake Grill
-
8M27018 ClampClamp
-
9570134300 RH Air Intake AdaptorRH Air Intake Adaptor
-
9M5346828 LH Air Intake AdaptorLH Air Intake Adaptor
-
10605628003 ClampClamp
