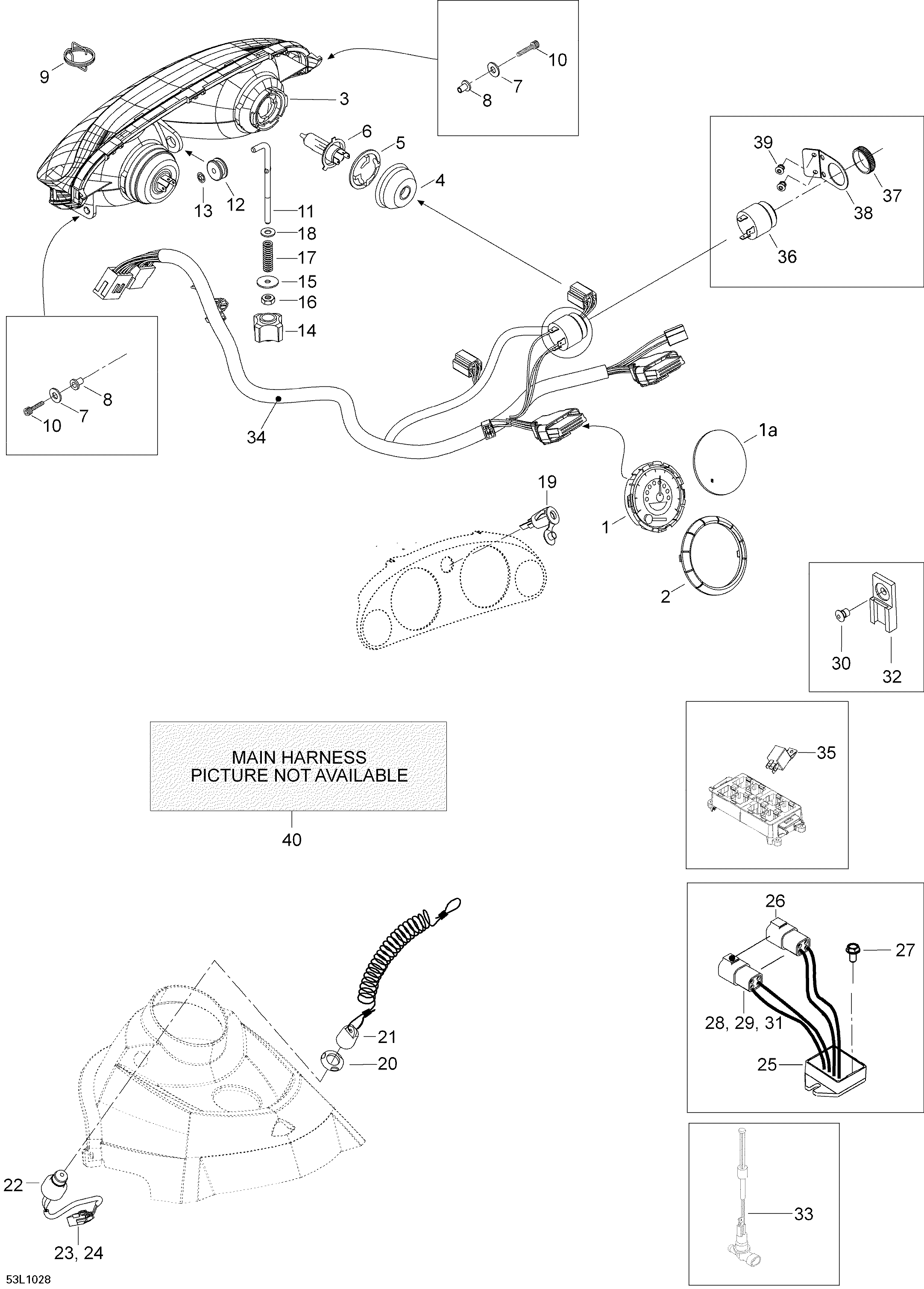

10- Electrical System для BRP Ski-Doo Skandic WT 600 - 2010
-
№АртикулНазвание
-
1515176477 Speedometer. Includes 1 to 1aSpeedometer. Includes 1 to 1a
-
1a415129319 LensLens
-
2515176242 Gauge RingGauge Ring
-
3515176311 Halogen Headlamp Ass'yHalogen Headlamp Ass'y
-
4515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
5515176385 Bulb HolderBulb Holder
-
6515175911 CoverCover
-
7M20008 Washer 5 mmWasher 5 mm
-
8250100018 Nut M5Nut M5
-
9M5447238 SpringSpring
-
11605450023 Adjuster RodAdjuster Rod
-
12415100800 GrommetGrommet
-
13m36084 WasherWasher
-
14515175548 HandleHandle
-
15M20038 WasherWasher
-
16232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
17415100600 SpringSpring
-
18234061410 Flat Washer 6 mmFlat Washer 6 mm
-
19710001248 Outlet DCOutlet DC
-
20278000508 Safety Switch NutSafety Switch Nut
-
21515176936 DESS CapDESS Cap
-
22515176815 Dess SwitchDess Switch
-
23515175232 Male TerminalMale Terminal
-
24515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
25515175968 Voltage RegulatorVoltage Regulator
-
26278001477 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
27278001674 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
28515175568 Male TerminalMale Terminal
-
29278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
30278001672 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
31293000052 Sealing CapSealing Cap
-
32515175917 ClipClip
-
33605452095 Oil SensorOil Sensor
-
34605355923 Harness Ass'yHarness Ass'y
-
35410113604 RelayRelay
-
36515176035 HornHorn
-
37414805101 Plastic NutPlastic Nut
-
38M5447941 HolderHolder
-
39M36005 RivetRivet
-
40605354749 Main HarnessMain Harness
