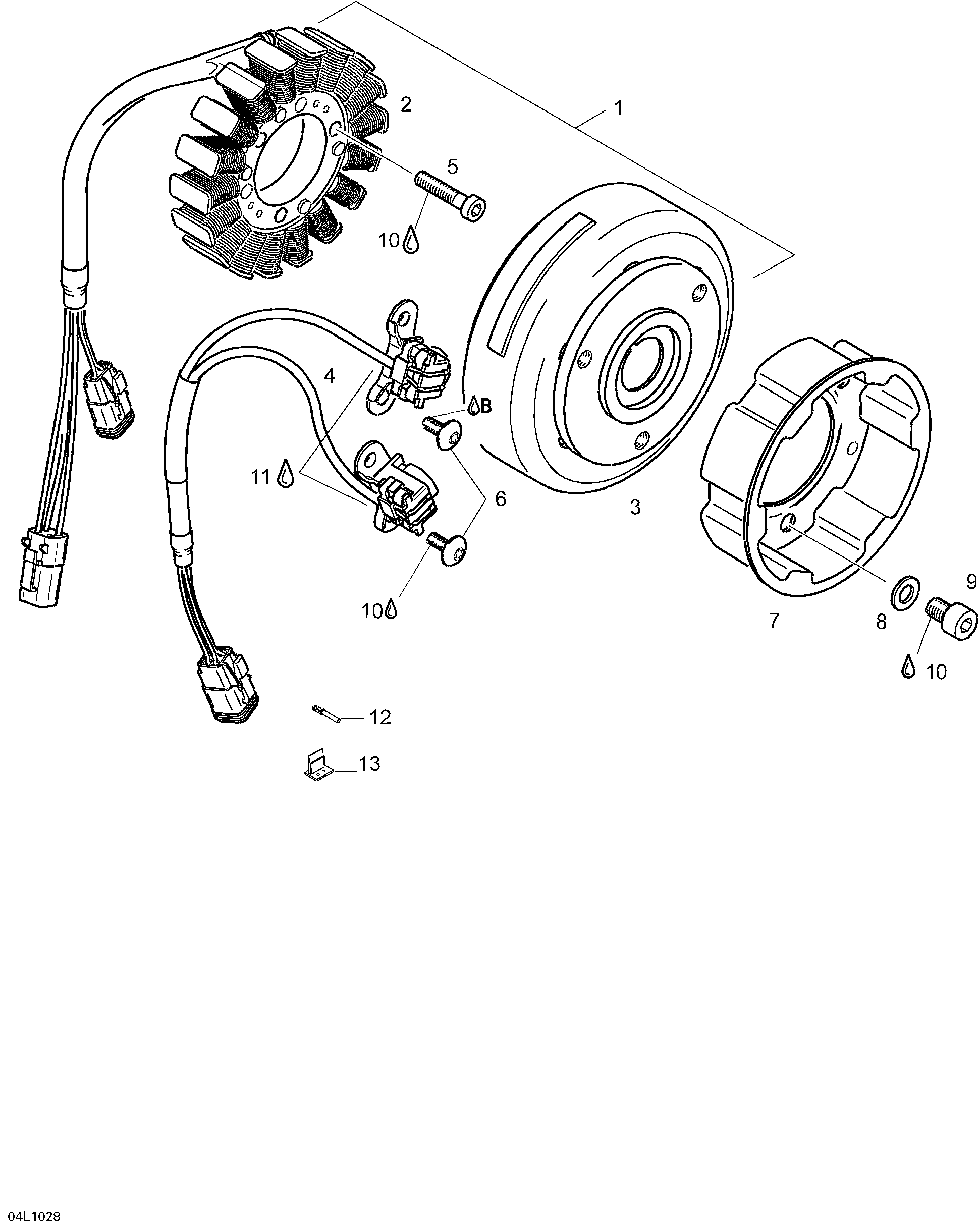

03- Magneto для BRP Ski-Doo Skandic WT 600 - 2010
-
№АртикулНазвание
-
2420889905 Stator Plate AStator Plate A
-
3420665722 FlywheelFlywheel
-
4410922948 Pickup Ass'yPickup Ass'y
-
5205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
6420640321 Hex. Taptite Screw M6 X 16Hex. Taptite Screw M6 X 16
-
7420852590 Starting PulleyStarting Pulley
-
8420827405 Flat WasherFlat Washer
-
9420841520 Socket Head Screw M8 X 12Socket Head Screw M8 X 12
-
10293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
12278000632 Female TerminalFemale Terminal
-
13409207100 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
