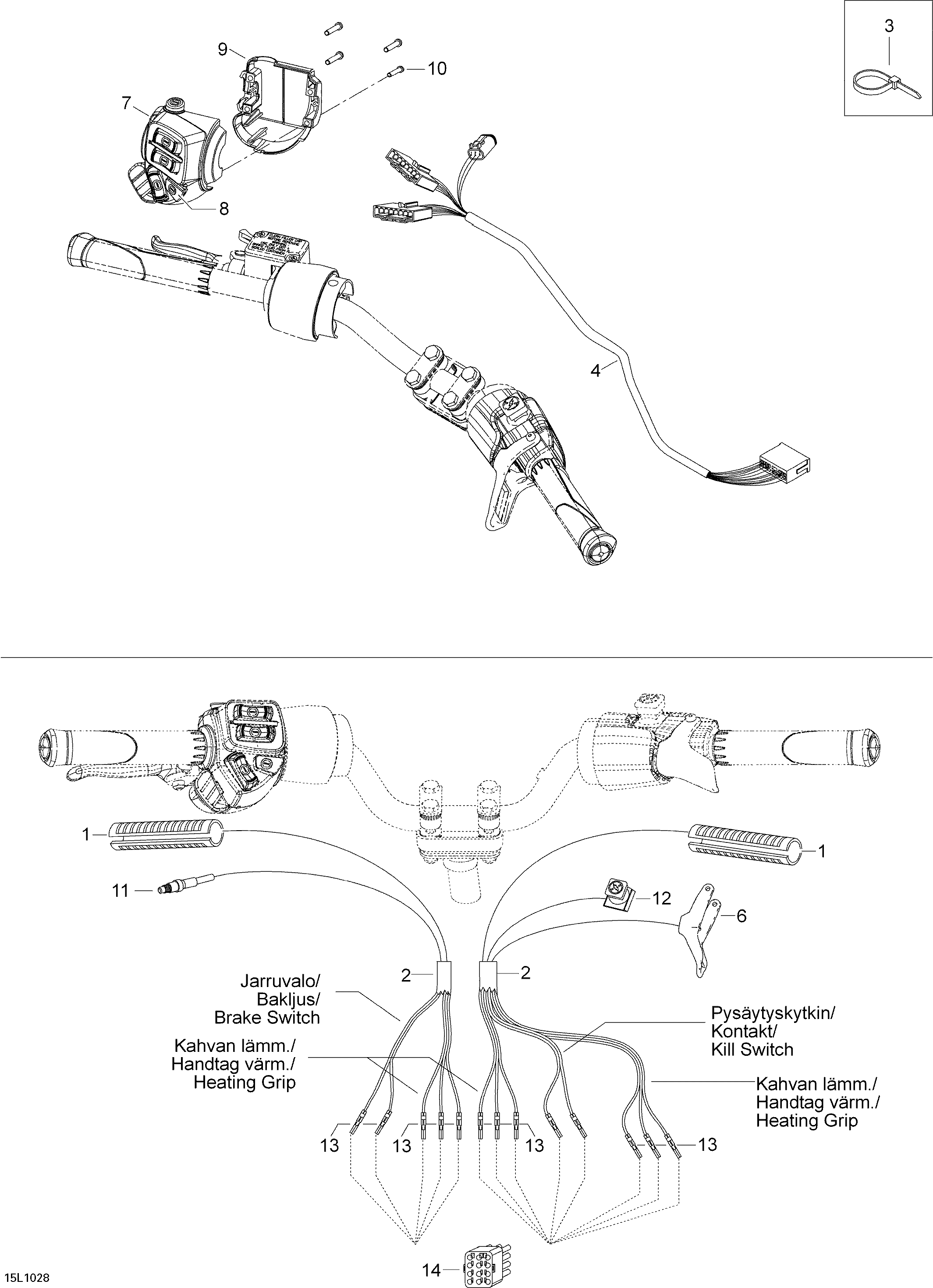

10- Steering Wiring Harness для BRP Ski-Doo Skandic WT 600 - 2010
-
№АртикулНазвание
-
1515176139 Heater ElementHeater Element
-
2M39023 HousingHousing
-
3M27100 Tie Rap 290 mmTie Rap 290 mm
-
4605353266 Steering harnessSteering harness
-
5605354749 Main Harness. Not shown in the pictureMain Harness. Not shown in the picture
-
6512059348 Handle Ass'yHandle Ass'y
-
7515176062 LH Switch HousingLH Switch Housing
-
8515176088 Start/RER ButtonStart/RER Button
-
9515175926 Housing Switch PlateHousing Switch Plate
-
11507032366 MicroswitchMicroswitch
-
12515176725 Kill SwitchKill Switch
-
13605642628 ConnectorConnector
-
14M42617 Male Connector HousingMale Connector Housing
