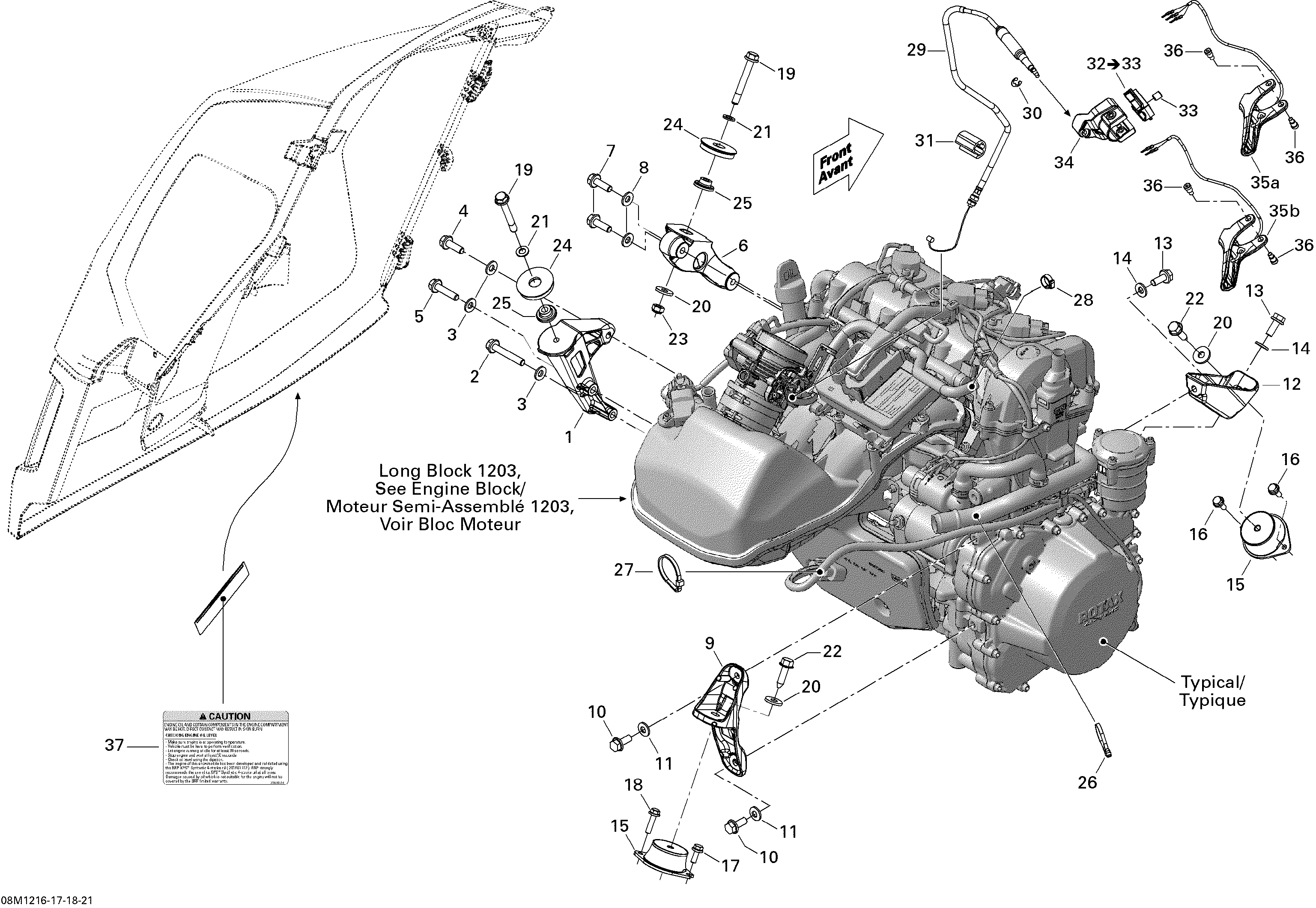

01- Engine для BRP Ski-Doo GSX LE & SE 1200 XR - 2012
-
№АртикулНазвание
-
1512060591 Rear Support, PTORear Support, PTO
-
2207585086 Hex. Flanged Screw M8 X 50, Scotch GripHex. Flanged Screw M8 X 50, Scotch Grip
-
3234281474 Conical Spring Washer M8Conical Spring Washer M8
-
4207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
5207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
6512060593 Front Support, PTOFront Support, PTO
-
7207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
8234281474 Conical Spring Washer M8Conical Spring Washer M8
-
9512060594 Rear Support, MAGRear Support, MAG
-
10207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
11234281474 Conical Spring Washer M8Conical Spring Washer M8
-
12512060596 Front Support, MAGFront Support, MAG
-
13207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
14234281474 Conical Spring Washer M8Conical Spring Washer M8
-
15512060729 Rubber MountRubber Mount
-
16207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
17207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
18207562534 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
19207586044 Hex. Flanged Screw M8 X 60, Scotch GripHex. Flanged Screw M8 X 60, Scotch Grip
-
20503183200 Washer, YellowWasher, Yellow
-
21250200008 Flat Washer 8 mmFlat Washer 8 mm
-
22250000257 Cone Bolt, M8 X 30Cone Bolt, M8 X 30
-
23232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
24512060244 StopperStopper
-
25512060285 SpacerSpacer
-
26414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
27414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
28293650046 Oetiker ClampOetiker Clamp
-
29512060673 Throttle CableThrottle Cable
-
30414274500 CirclipCirclip
-
31512060313 ProtectorProtector
-
32512060198 Upper Housing Ass'y. Includes 32 to 33Upper Housing Ass'y. Includes 32 to 33
-
33414440800 Socket Set Screw M8 X 10Socket Set Screw M8 X 10
-
34512060430 Lower HousingLower Housing
-
35b512060618 Throttle HandleThrottle Handle
-
36732601143 Flanged ScrewFlanged Screw
-
37516004718 Caution Decal, Checking Engine Oil LevelCaution Decal, Checking Engine Oil Level
