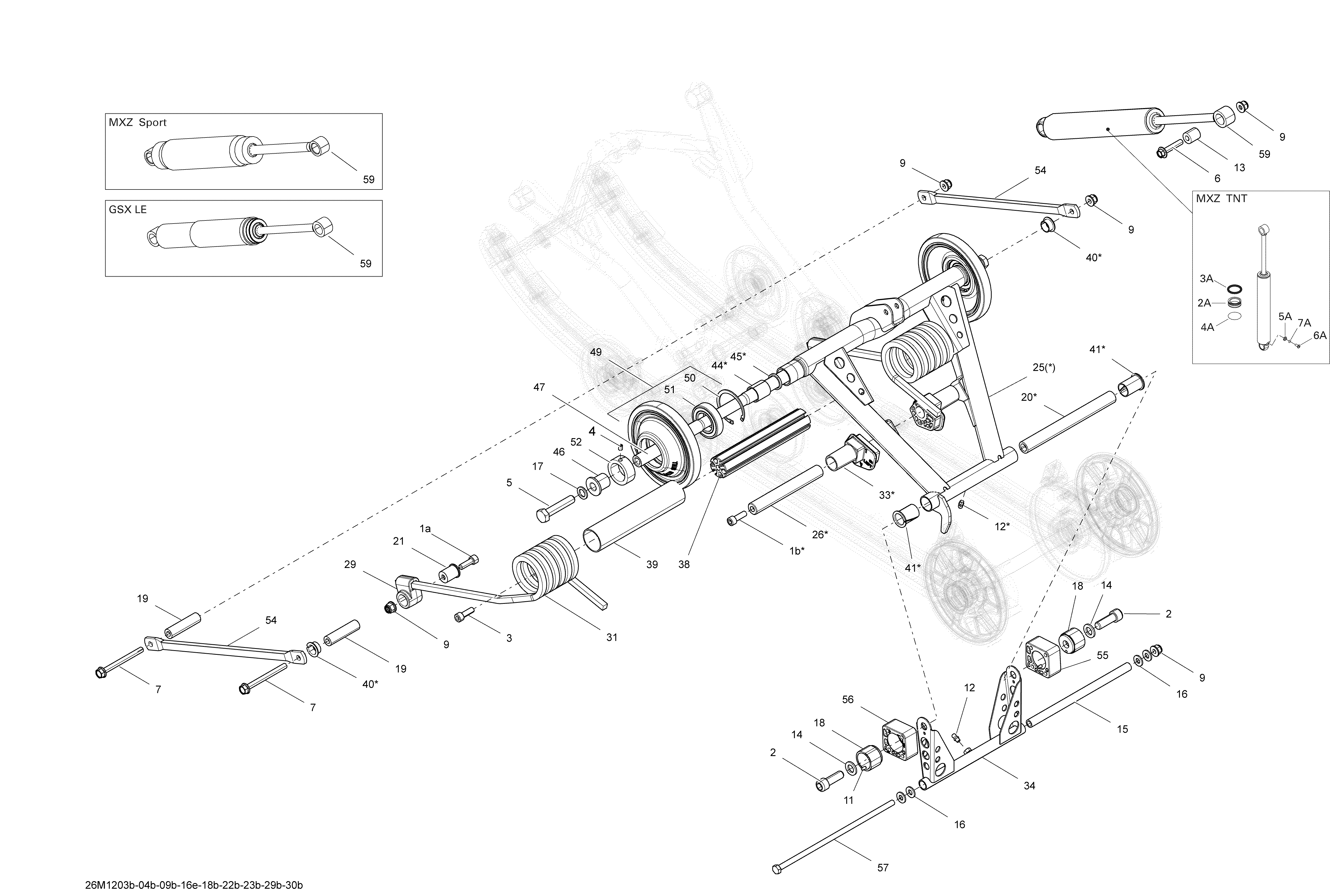

08- Rear Suspension (LE) Rear Arm And Shock для BRP Ski-Doo GSX LE & SE 1200 XR - 2012
-
№АртикулНазвание
-
2205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
3205582544 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
4206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
5250000485 Hex. Cap Screw M12 X 60Hex. Cap Screw M12 X 60
-
6207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
7207688544 Hex. Flanged ScewHex. Flanged Scew
-
9250100131 Elastic Flange Nut M8Elastic Flange Nut M8
-
11250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
-
12408200700 Grease FittingGrease Fitting
-
13414936000 CushionCushion
-
14503189148 WasherWasher
-
15503189156 Pivot Arm AxlePivot Arm Axle
-
16503192494 WasherWasher
-
17503192491 WasherWasher
-
18503189488 Block GuideBlock Guide
-
19503190643 Bar AxleBar Axle
-
20503192330 Lower ShaftLower Shaft
-
21503190754 Retainer CushionRetainer Cushion
-
25503191785 Rear Arm Ass'yRear Arm Ass'y
-
26503191178 Spring Cam AxeSpring Cam Axe
-
29503191183 Spring SupportSpring Support
-
31503191188 LH Spring, SquareLH Spring, Square
-
31503191186 RH Spring, SquareRH Spring, Square
-
33503191191 LH Spring CamLH Spring Cam
-
33503191190 RH Spring CamRH Spring Cam
-
34503191302 Pivot ArmPivot Arm
-
38503191344 Spring AxleSpring Axle
-
39503191345 Plastic BushingPlastic Bushing
-
40503191555 Swivel BushingSwivel Bushing
-
41503191640 CushionCushion
-
44503191773 BushingBushing
-
45503191774 WasherWasher
-
46503191775 BushingBushing
-
47503191776 Upper ShaftUpper Shaft
-
49503191777 Wheel 144Wheel 144
-
50415129371 Retaining RingRetaining Ring
-
51503191778 Ball BearingBall Bearing
-
52503191782 Retaining RingRetaining Ring
-
54503191802 Link RodLink Rod
-
55503192300 RH Block, 4 PositionsRH Block, 4 Positions
-
56503192301 LH Block, 4 PositionsLH Block, 4 Positions
-
57503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
59503191588 Rear ShockRear Shock
-
1a250000477 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
1b205582544 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
