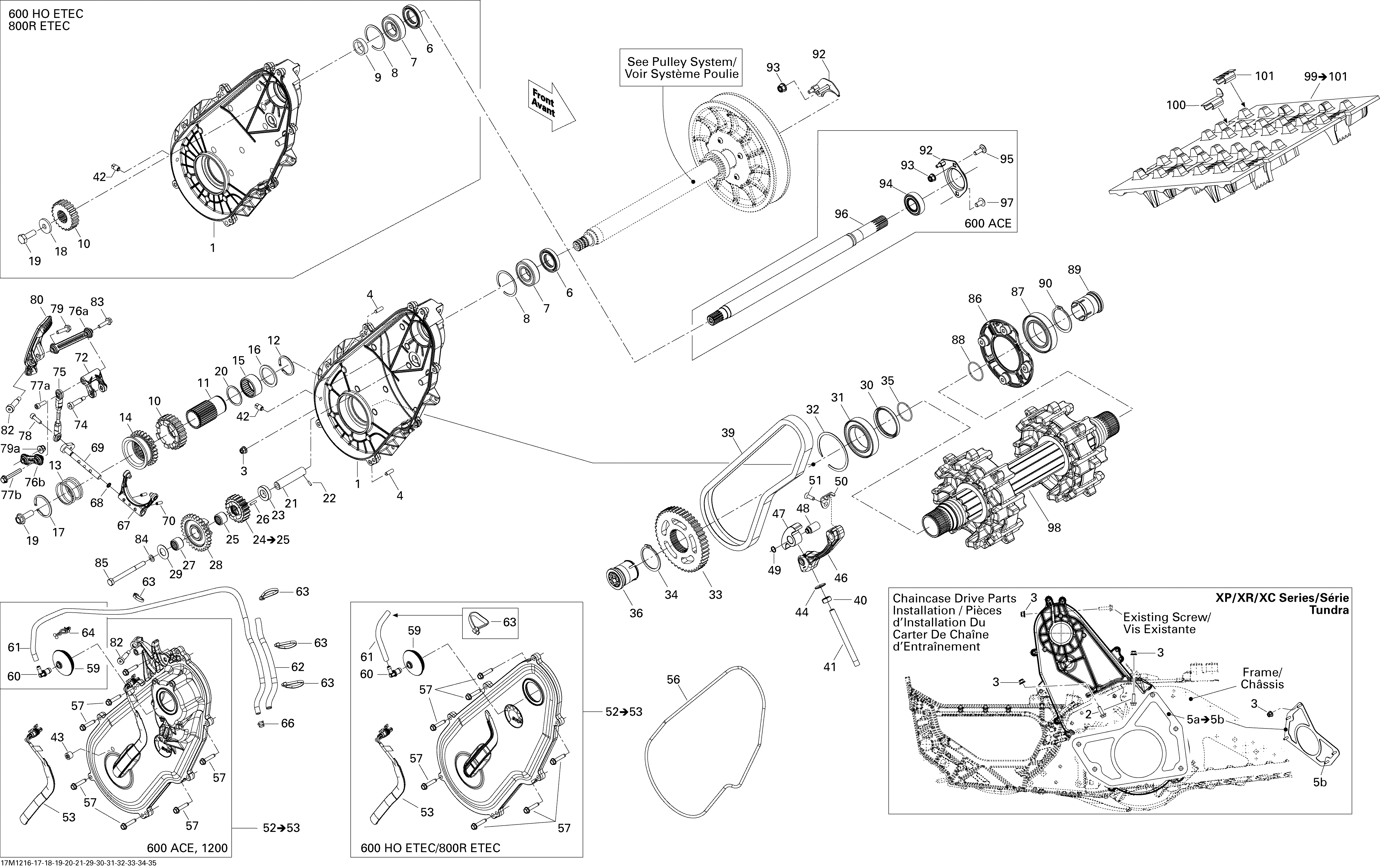

05- Drive System для BRP Ski-Doo GSX LE & SE 1200 XR - 2012
-
№АртикулНазвание
-
1504152996 Chaincase. GSX LEChaincase. GSX LE
-
1504153029 Chaincase. GSX SEChaincase. GSX SE
-
2207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
4250400048 Dowel PinDowel Pin
-
6415049300 Oil SealOil Seal
-
7293350055 Ball BearingBall Bearing
-
8504152576 CirclipCirclip
-
9504152628 ShimShim
-
10504152961 Sprocket, 24 TeethSprocket, 24 Teeth
-
11504152979 CouplingCoupling
-
12293370054 CirclipCirclip
-
13504096600 Release SpringRelease Spring
-
14504152960 Slinding Gear, 27 TeethSlinding Gear, 27 Teeth
-
15293350063 Needle BearingNeedle Bearing
-
16504152689 WasherWasher
-
17293370055 CirclipCirclip
-
18504152784 Spring Washer M10Spring Washer M10
-
19207103044 Hex. Screw M10 X 30Hex. Screw M10 X 30
-
19207503044 Hex. Screw M10 X 1.5 X 30Hex. Screw M10 X 1.5 X 30
-
20504152862 WasherWasher
-
21504083100 Reverse ShaftReverse Shaft
-
22250400010 Rolled Pin M3 X 10Rolled Pin M3 X 10
-
23504078700 RingRing
-
24581096900 Sprock Ass'y, 19 Teeth. Includes 24 to 25Sprock Ass'y, 19 Teeth. Includes 24 to 25
-
25293350064 Needle BearingNeedle Bearing
-
26570048600 Alignement RodAlignement Rod
-
27293350064 Needle BearingNeedle Bearing
-
28504152724 Sprocket, 29 TeethSprocket, 29 Teeth
-
29504077300 SpacerSpacer
-
30504152571 SealSeal
-
31293350059 Ball BearingBall Bearing
-
32504152582 CirclipCirclip
-
33504152593 Sprocket, 45 Teeth. GSX SESprocket, 45 Teeth. GSX SE
-
33504152726 Sprocket, 43 Teeth. GSX LESprocket, 43 Teeth. GSX LE
-
34504152572 CirclipCirclip
-
35293300122 O-RingO-Ring
-
36504152619 Magnetic CapMagnetic Cap
-
39504152629 Drive Chain, 104 LinksDrive Chain, 104 Links
-
40232006414 Hex. Nut M10Hex. Nut M10
-
41504152602 Adjustment ScrewAdjustment Screw
-
42504152636 Magnetic Plug. GSX LEMagnetic Plug. GSX LE
-
42504152854 Magnetic Plug. GSX SEMagnetic Plug. GSX SE
-
43250500012 Allen Drive Plug 1/8-27 PTFAllen Drive Plug 1/8-27 PTF
-
44250200100 Bonded WasherBonded Washer
-
46504152748 Chain TensionerChain Tensioner
-
47504153031 Slider Chain Ass'ySlider Chain Ass'y
-
48504152841 Tensionner AxleTensionner Axle
-
49504152282 CirclipCirclip
-
50504153122 Chain SliderChain Slider
-
51205862044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
52504153023 Chaincase Cover Ass'y. Includes 52 to 53, GSX LEChaincase Cover Ass'y. Includes 52 to 53, GSX LE
-
52504153026 Chaincase Cover Ass'y. Includes 52 to 53, GSX SEChaincase Cover Ass'y. Includes 52 to 53, GSX SE
-
53504152896 SensorSensor
-
53504152896 SensorSensor
-
56293300130 O-RingO-Ring
-
57210263080 Hex. Flanged Screw M6 X 30. GSX SEHex. Flanged Screw M6 X 30. GSX SE
-
57250000360 Flanged Hex. Screw M6 X 30. GSX LEFlanged Hex. Screw M6 X 30. GSX LE
-
59504152860 CapCap
-
60414580700 Male ConnectorMale Connector
-
61415080200 Hose, PolyurethaneHose, Polyurethane
-
62504152900 Protector TubeProtector Tube
-
63414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
64291000714 BracketBracket
-
66414554800 Spring ClampSpring Clamp
-
67504152954 Fork Ass'yFork Ass'y
-
68414484400 O-RingO-Ring
-
69504152956 Welded Axel ForkWelded Axel Fork
-
70250400045 Spring Pin M5 X 16Spring Pin M5 X 16
-
72504152788 LeverLever
-
74250000340 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
75504152951 Ball JointBall Joint
-
78205562044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
79233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
84504082900 WasherWasher
-
85207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
86504152949 Housing BearingHousing Bearing
-
87293350059 Ball BearingBall Bearing
-
88293300122 O-RingO-Ring
-
89504152619 Magnetic CapMagnetic Cap
-
90504152572 CirclipCirclip
-
92504152974 Bearing HousingBearing Housing
-
93233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
94293350074 Ball BearingBall Bearing
-
95207783044 Carriage Bolt M8 X 30Carriage Bolt M8 X 30
-
96504153000 CountershaftCountershaft
-
97250000198 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
98504153083 Drive Axle Ass'yDrive Axle Ass'y
-
99504152606 Track Ass'y 15X120X1.2RS. Includes 99 to 101Track Ass'y 15X120X1.2RS. Includes 99 to 101
-
99504152905 Track Ass'y 15X137X1.2. Includes 99 to 101Track Ass'y 15X137X1.2. Includes 99 to 101
-
100415129528 Track GuideTrack Guide
-
100415129528 Track GuideTrack Guide
-
101504152651 CleatCleat
-
101504152651 CleatCleat
-
5a518325816 Plate. Includes 5a to 5bPlate. Includes 5a to 5b
-
76a504152710 Double Ball JointDouble Ball Joint
-
76b504152766 Double Ball Joint. Electro-Mechanical SystemDouble Ball Joint. Electro-Mechanical System
-
77a205562044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
77b207564044 Socket Head Screw M6 X 40, Scotch Grip. Electro-Mechanical SystemSocket Head Screw M6 X 40, Scotch Grip. Electro-Mechanical System
-
79a233261414 Hex. Flanged Elastic Nut M6. Electro-Mechanical SystemHex. Flanged Elastic Nut M6. Electro-Mechanical System
