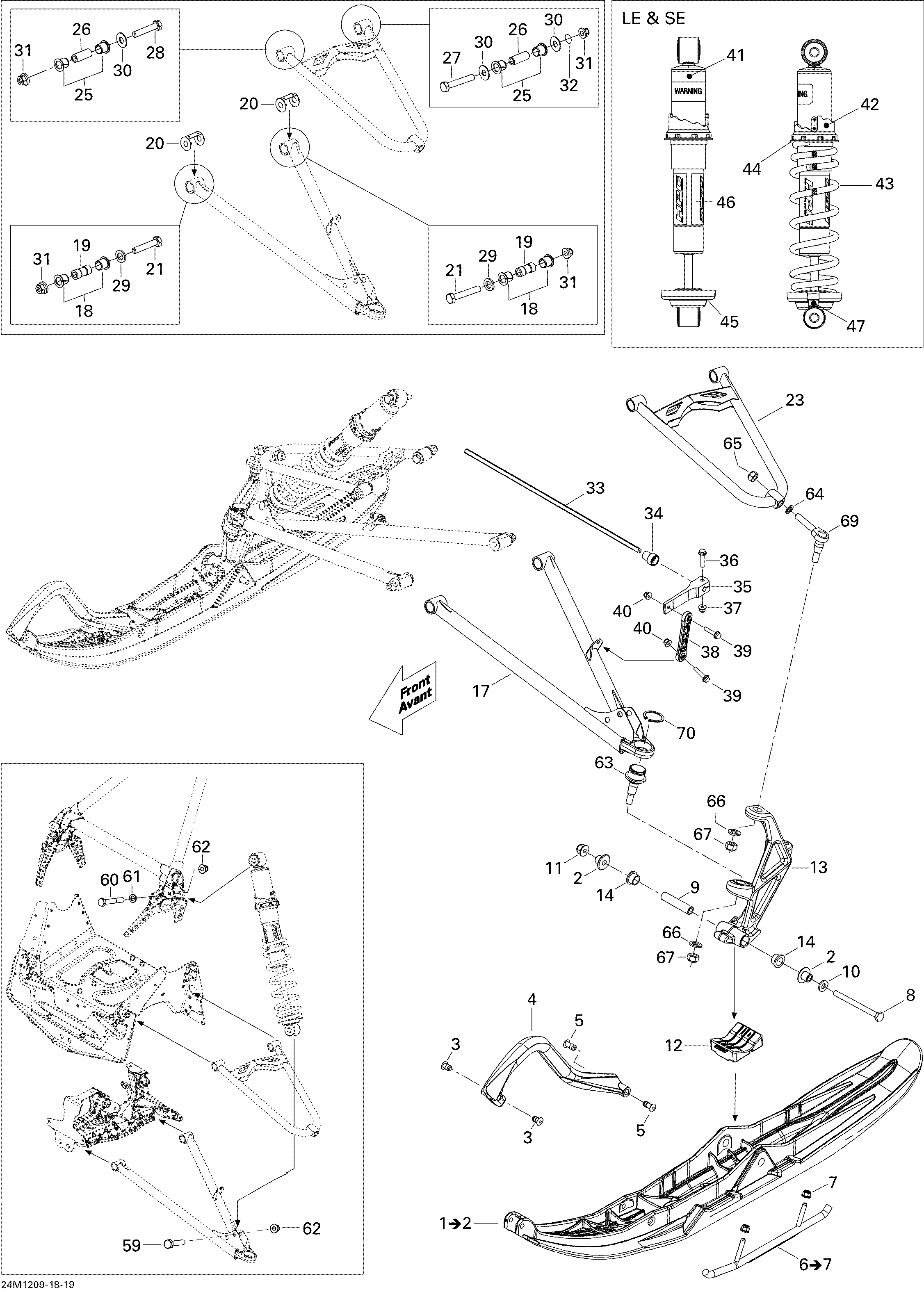

07- Front Suspension And Ski для BRP Ski-Doo GSX LE & SE 1200 XR - 2012
-
№АртикулНазвание
-
1505072943 RH Pilot Ski, Black. Includes 1 to 2RH Pilot Ski, Black. Includes 1 to 2
-
1505072942 LH Pilot Ski, Black. Includes 1 to 2LH Pilot Ski, Black. Includes 1 to 2
-
2505071781 CushionCushion
-
3505071812 RetainerRetainer
-
4505070963 Handle, Black. LE, White-BlackHandle, Black. LE, White-Black
-
4505071059 Handle, Viper Red. SE, Red-RedHandle, Viper Red. SE, Red-Red
-
4505071556 Handle, Full Moon. SE, Black-BlackHandle, Full Moon. SE, Black-Black
-
5505072133 RetainerRetainer
-
6860200141 Carbide Runner Kit. Includes 6 to 7Carbide Runner Kit. Includes 6 to 7
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
9506133300 SpacerSpacer
-
10732900049 WasherWasher
-
11233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
12505072594 Ski StopperSki Stopper
-
13505073007 LH Ski LegLH Ski Leg
-
13505073008 RH Ski LegRH Ski Leg
-
14505072690 Leg CushionLeg Cushion
-
17505072522 RH Lower ArmRH Lower Arm
-
17505072523 LH Lower ArmLH Lower Arm
-
18505072208 BushingBushing
-
19505072393 BushingBushing
-
20505072634 Wear PlateWear Plate
-
21250000291 Screw Hex. M10 X 70. Rear AttachmentScrew Hex. M10 X 70. Rear Attachment
-
21250000218 Hex. Screw M10 X 75. Front AttachmentHex. Screw M10 X 75. Front Attachment
-
23505072389 Upper ArmUpper Arm
-
25505072250 BushingBushing
-
26505072143 BushingBushing
-
27250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
28250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
29503189564 WasherWasher
-
30505072392 WasherWasher
-
31250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
32505072448 O-RingO-Ring
-
33505072602 StabilisatorStabilisator
-
34505072064 BushingBushing
-
35505072394 Stabilisator LeverStabilisator Lever
-
36207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
37233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
38505072204 Double Ball Joint LinkDouble Ball Joint Link
-
39207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
40233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
41505072489 Front ShockFront Shock
-
42505070150 Adjustment CamAdjustment Cam
-
43505072515 Painted Spring. LE, White-BlackPainted Spring. LE, White-Black
-
43505072993 Painted Spring. SE, Red-RedPainted Spring. SE, Red-Red
-
43505072518 Painted Spring. SE, Black-BlackPainted Spring. SE, Black-Black
-
44503187500 Spring GuideSpring Guide
-
45706200881 Spring StopperSpring Stopper
-
46516004540 Shock DecalShock Decal
-
47706200785 CapCap
-
59207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
60207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
61503189564 WasherWasher
-
62233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
63505072682 Lower Ball JointLower Ball Joint
-
64503189276 WasherWasher
-
65250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
66234021410 Flat Washer 12 mmFlat Washer 12 mm
-
67250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
69505072257 Upper Ball JointUpper Ball Joint
-
70293370035 CirclipCirclip
