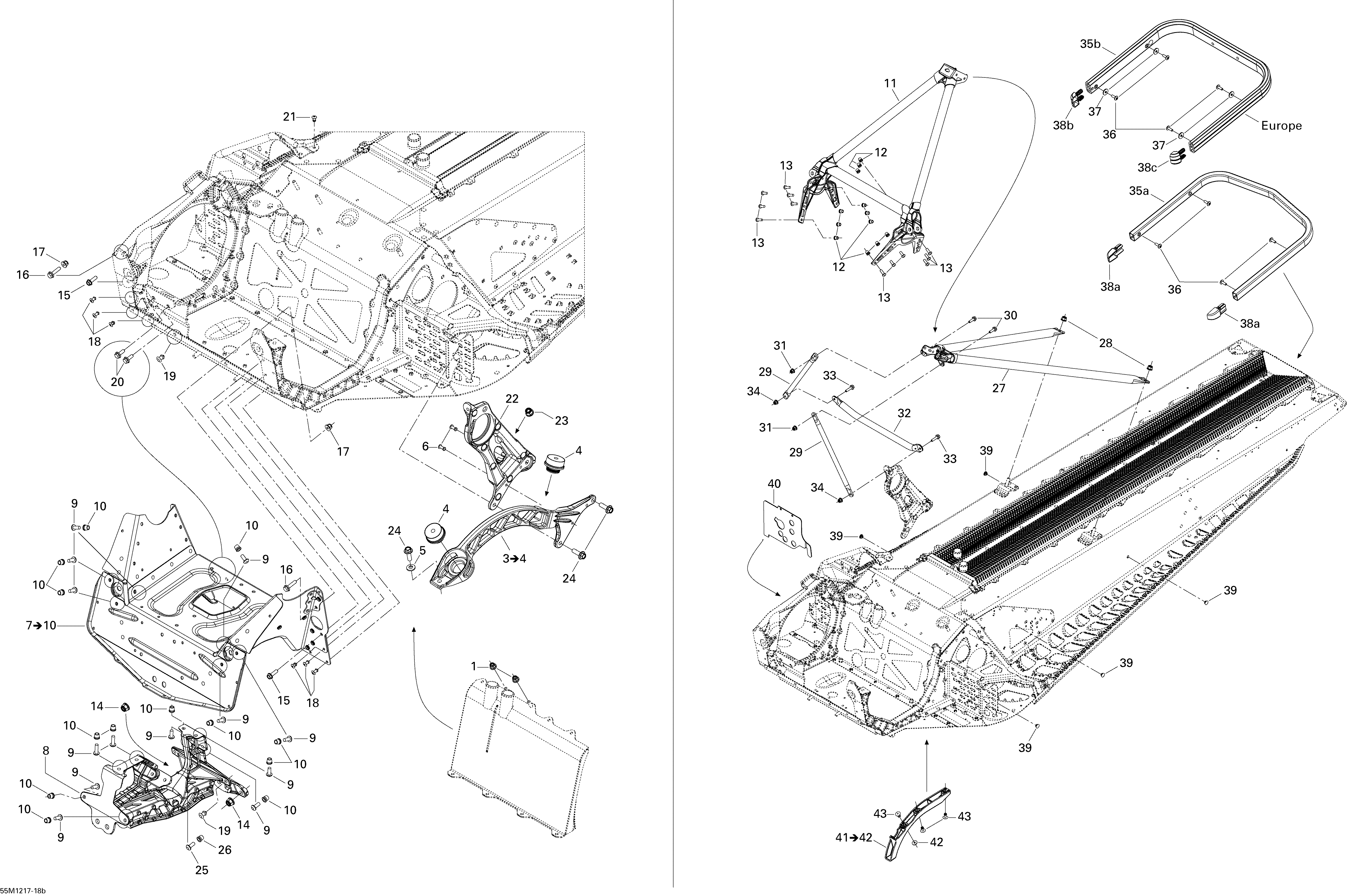

09- Frame and Components SE 137'' для BRP Ski-Doo GSX LE & SE 1200 XR - 2012
-
№АртикулНазвание
-
1233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3518326336 Brace Ass'y. Includes 3 to 4Brace Ass'y. Includes 3 to 4
-
4512060295 Rubber MountRubber Mount
-
5234281474 Conical Spring Washer M8Conical Spring Washer M8
-
6390407200 Pop Rivet 3/16''Pop Rivet 3/16''
-
7518326686 S-Module. Includes 7 to 10S-Module. Includes 7 to 10
-
8518325925 Front Suspension SupportFront Suspension Support
-
9207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11518326970 Front MemberFront Member
-
12233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
13207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
14233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
15210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
16207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
19293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
20207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
21390909100 Avex RivetAvex Rivet
-
22518326192 Driven Pulley SupportDriven Pulley Support
-
23233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
24250000351 Hex. Flanged Screw M8 X 25, NylonHex. Flanged Screw M8 X 25, Nylon
-
25207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
26233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
27518326559 Rear MemberRear Member
-
28233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
29518325114 Upper Column SupportUpper Column Support
-
30207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
31233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
32518326657 Center Column SupportCenter Column Support
-
33207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
34233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
36250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
39293730047 Dart 8 mm, BlackDart 8 mm, Black
-
40518325418 Heat ShieldHeat Shield
-
41518326973 Front Protector. Includes 41 to 42Front Protector. Includes 41 to 42
-
42517124300 WasherWasher
-
43293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
35a518325481 Rear Bumper. GSX&P-SERear Bumper. GSX&P-SE
-
38a520000840 CapCap
