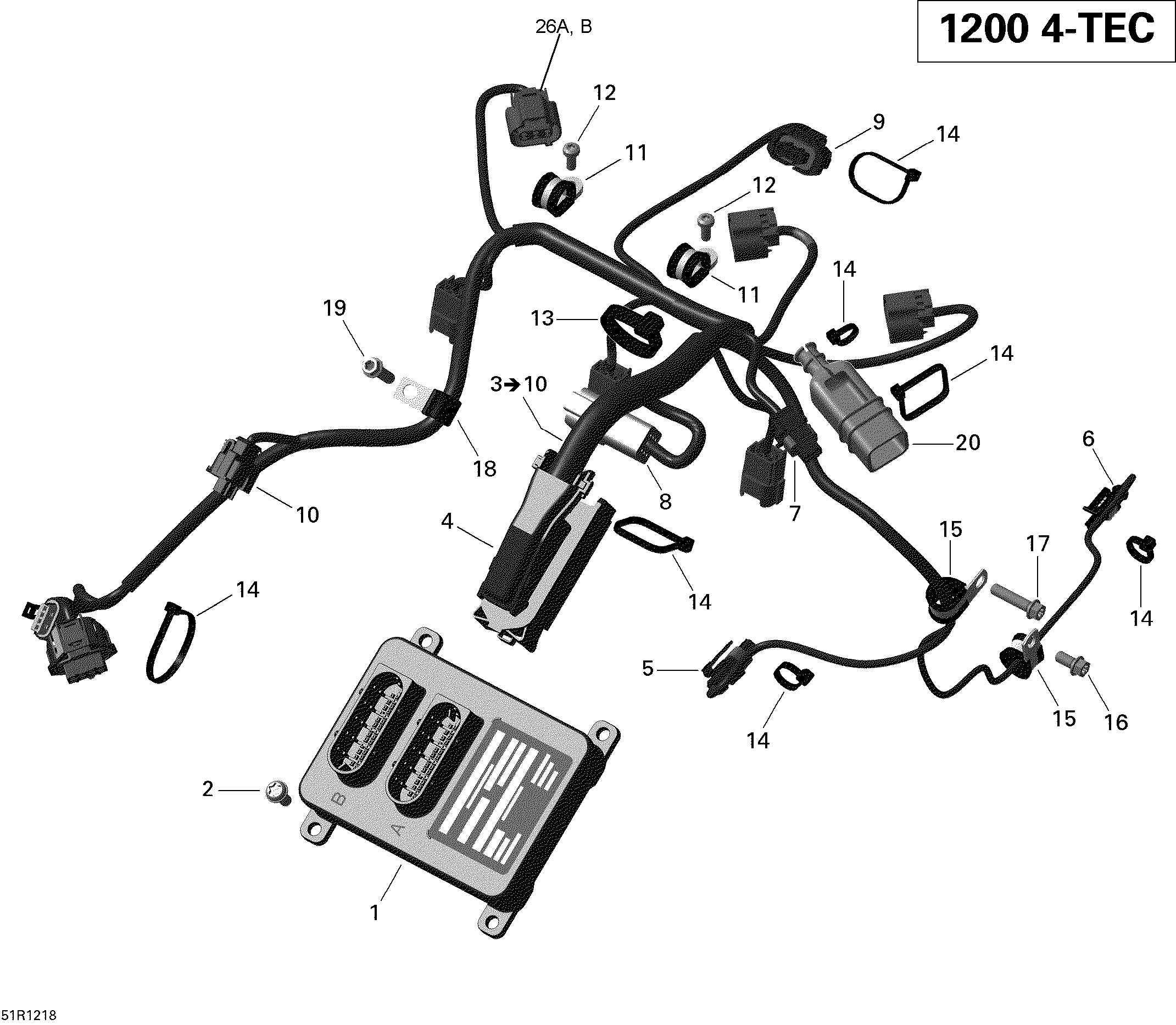

10- Engine Harness And Electronic Module для BRP Ski-Doo GSX LE & SE 1200 XR - 2012
-
№АртикулНазвание
-
1420666128 ECM, Engine Control ModuleECM, Engine Control Module
-
2420641583 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
3420665637 Engine Wiring Harness Ass'y. Includes 3 to 10Engine Wiring Harness Ass'y. Includes 3 to 10
-
4420664450 ECM ConnectorECM Connector
-
5278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
6278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
7278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
8270000137 Female Connector, 6 CircuitsFemale Connector, 6 Circuits
-
9278001830 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
10278001829 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
11420851108 Cable ClampCable Clamp
-
12420640081 Torx Screw M5 X 12Torx Screw M5 X 12
-
13420866716 Tie-RapTie-Rap
-
14420651396 Tie RapTie Rap
-
15420851492 Cable ClampCable Clamp
-
16420440147 Flanged Hex. Screw M6 X 12Flanged Hex. Screw M6 X 12
-
17420440232 Torx Screw M6 X 25Torx Screw M6 X 25
-
18420251812 Cable ClampCable Clamp
-
19420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
20420201070 ProtectorProtector
-
26a710000335 Female TerminalFemale Terminal
-
26b409012300 SealSeal
