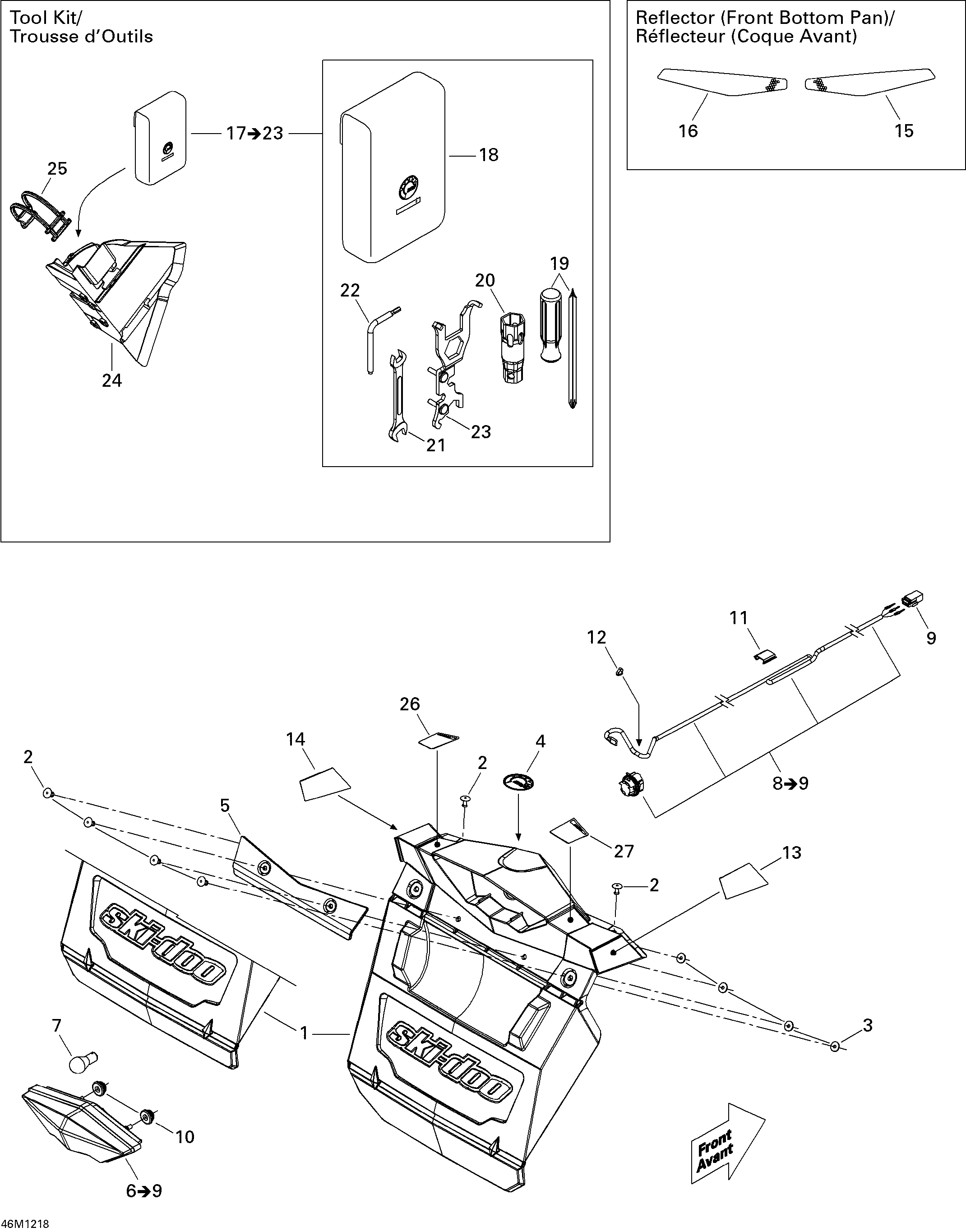

09- Utilities SE для BRP Ski-Doo GSX LE & SE 1200 XR - 2012
-
№АртикулНазвание
-
1520001034 Snow Guard. Black-Black ModelSnow Guard. Black-Black Model
-
1520001035 Snow Guard. Red-Red ModelSnow Guard. Red-Red Model
-
2293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
3517124300 WasherWasher
-
4219903305 BRP Logo, 48 mmBRP Logo, 48 mm
-
5520000751 ReinforcementReinforcement
-
6520000679 Rear Light. Includes 6 a 9Rear Light. Includes 6 a 9
-
7520000758 BulbBulb
-
8520000680 Wiring Harness. Includes 8 a 9Wiring Harness. Includes 8 a 9
-
9515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
10705003666 Rubber GrommetRubber Grommet
-
11520000829 Radiator TrimRadiator Trim
-
12293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
13520001162 RH Rear Reflector. North AmericaRH Rear Reflector. North America
-
14520001161 LH Rear Reflector. North AmericaLH Rear Reflector. North America
-
15520000759 RH Front ReflectorRH Front Reflector
-
16520000760 LH Front ReflectorLH Front Reflector
-
17529000066 Tool Kit. Includes 17 a 23Tool Kit. Includes 17 a 23
-
19529000004 Screw DriverScrew Driver
-
21529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
22520001142 Spacing ToolSpacing Tool
-
23520000988 Wrench SuspensionWrench Suspension
-
24520000720 Tool Kit RackTool Kit Rack
-
25520000528 LatchLatch
-
26516004550 Warning Decal, SecurityWarning Decal, Security
-
27516004601 Warning Decal, SecurityWarning Decal, Security
