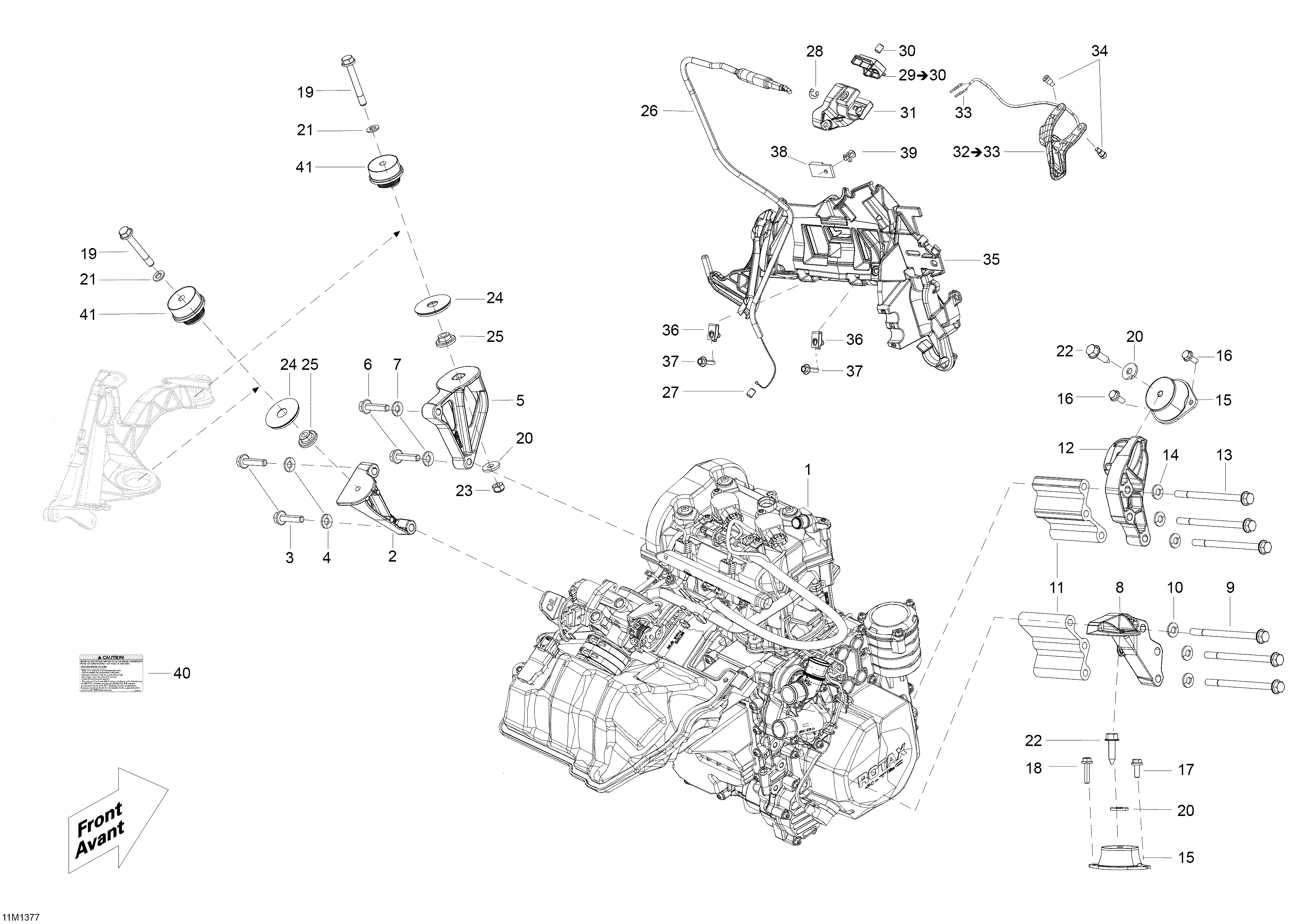

01- Engine And Engine Support для BRP Ski-Doo Skandic SWT 600 ACE (4-strokes) XU - 2013
-
№АртикулНазвание
-
1420060201 Engine 602 ACEEngine 602 ACE
-
2512060660 Rear Support, PTORear Support, PTO
-
3207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
4234281474 Conical Spring Washer M8Conical Spring Washer M8
-
5512060661 Front Support, PTOFront Support, PTO
-
6207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
7234281474 Conical Spring Washer M8Conical Spring Washer M8
-
8512060662 Rear Support, MAGRear Support, MAG
-
9230582544 Hex. Flanged Screw M8 X 125, Scotch GripHex. Flanged Screw M8 X 125, Scotch Grip
-
10234281474 Conical Spring Washer M8Conical Spring Washer M8
-
11512060505 ShimShim
-
12512060663 Front Support, MAGFront Support, MAG
-
13230582544 Hex. Flanged Screw M8 X 125, Scotch GripHex. Flanged Screw M8 X 125, Scotch Grip
-
14234281474 Conical Spring Washer M8Conical Spring Washer M8
-
15512060729 Rubber MountRubber Mount
-
16207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
17207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
18207562534 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
19207586044 Hex. Flanged Screw M8 X 60, Scotch GripHex. Flanged Screw M8 X 60, Scotch Grip
-
20503183200 Washer, YellowWasher, Yellow
-
21250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
22250000257 Cone Bolt, M8 X 30Cone Bolt, M8 X 30
-
23232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
24512060647 StopperStopper
-
25512060285 SpacerSpacer
-
26512060607 Throttle CableThrottle Cable
-
27707000434 Cable GuideCable Guide
-
28414274500 CirclipCirclip
-
29512060859 Upper Housing. Includes 29 To 30Upper Housing. Includes 29 To 30
-
30414440800 Socket Set Screw M8 X 10Socket Set Screw M8 X 10
-
31512060860 Lower HousingLower Housing
-
32512060616 Throttle Handle. Includes 32 To 33Throttle Handle. Includes 32 To 33
-
33515175232 Male TerminalMale Terminal
-
34732601143 Flanged ScrewFlanged Screw
-
35512060509 Module SupportModule Support
-
36250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
37207552044 Hex. Flanged Screw M5 X 20, Scotch GripHex. Flanged Screw M5 X 20, Scotch Grip
-
38270000141 ClipClip
-
39293150027 Avdel RivetAvdel Rivet
-
40516005521 Check Oil DecalCheck Oil Decal
-
41512060295 Rubber MountRubber Mount
