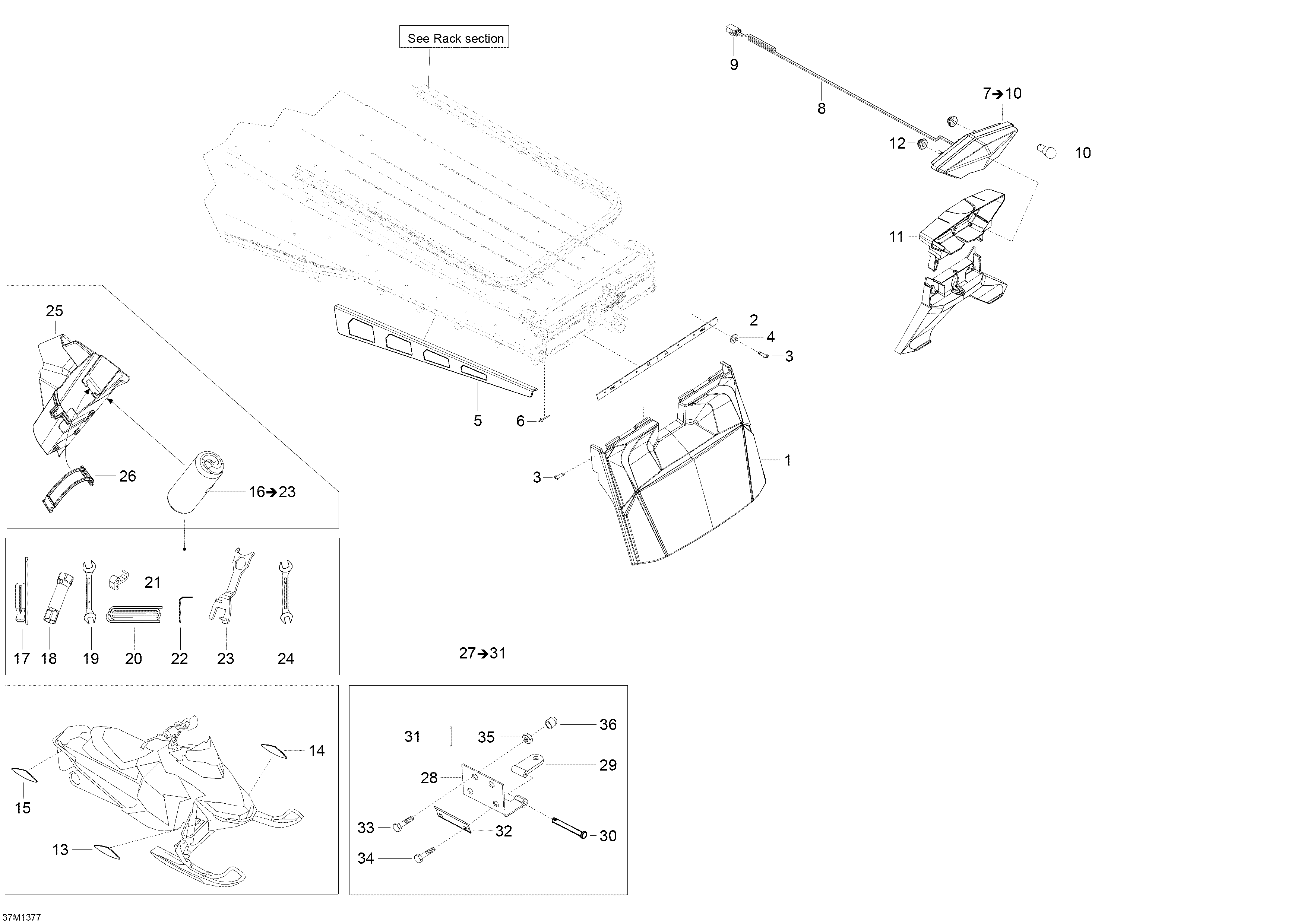

09- Utilities для BRP Ski-Doo Skandic SWT 600 ACE (4-strokes) XU - 2013
-
№АртикулНазвание
-
1520001005 Snow Guard, 600 Long, BlackSnow Guard, 600 Long, Black
-
2520001022 PlatePlate
-
3732600030 ScrewScrew
-
4250200025 Washer M5Washer M5
-
5520000693 RH ProtectorRH Protector
-
5520000694 LH ProtectorLH Protector
-
6293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
7520000848 Rear Light. Includes 7 To 10Rear Light. Includes 7 To 10
-
8520000849 Rear Wiring HarnessRear Wiring Harness
-
9515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
10520000758 BulbBulb
-
11511000764 Rear Light CoverRear Light Cover
-
12705003666 Rubber GrommetRubber Grommet
-
13520000843 RH ReflectorRH Reflector
-
14520000844 LH ReflectorLH Reflector
-
15705003412 Red ReflectorRed Reflector
-
16529000065 Tool Kit. Includes 16 To 23Tool Kit. Includes 16 To 23
-
17529000004 Screw DriverScrew Driver
-
18529000046 Set Key 16 / 21 MMSet Key 16 / 21 MM
-
19529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
20412500200 Starter Rope, MeterStarter Rope, Meter
-
21529000060 Starter GripStarter Grip
-
22520001142 Spacing ToolSpacing Tool
-
23520000988 Wrench SuspensionWrench Suspension
-
24M34017 WrenchWrench
-
25520000894 Tool Kit RackTool Kit Rack
-
26520000528 LatchLatch
-
27M5344152 Hitch Ass'y. Includes 27 To 31Hitch Ass'y. Includes 27 To 31
-
28M5344151 PlatePlate
-
29M548745 Hitch PlateHitch Plate
-
30560309200 Pin-RetainerPin-Retainer
-
31M41031 PinPin
-
32520000727 PlatePlate
-
33207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
34207784044 Bolt Carriage M8 X 40Bolt Carriage M8 X 40
-
35233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
36M28056 CapCap
