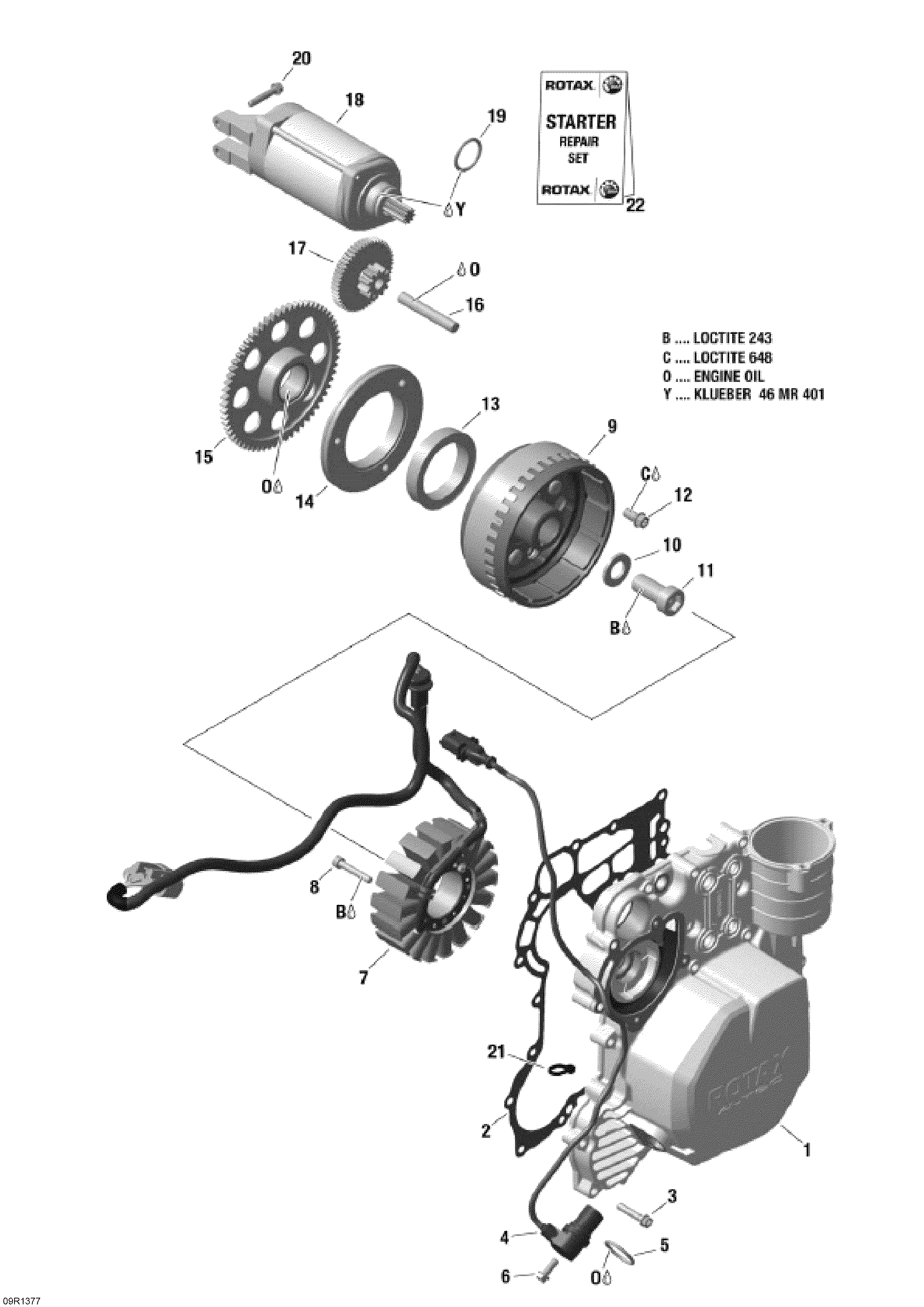

03- Magneto And Electric Starter для BRP Ski-Doo Skandic SWT 600 ACE (4-strokes) XU - 2013

№

Артикул

Название
1

420911052 Cover

Cover

16 360 ₽
2

420431640 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

7 230 ₽
3

420440647 Flanged Torx Screw M6 X 30

Flanged Torx Screw M6 X 30

740 ₽
4

420966570 Crankshaft Position Sensor Ass'y. Includes 4 To 5

Crankshaft Position Sensor Ass'y. Includes 4 To 5

49 280 ₽
5

420431580 O-Ring. Included In Gasket Kit

O-Ring. Included In Gasket Kit

2 400 ₽
6

420440162 Flanged Torx Screw M6 X 16

Flanged Torx Screw M6 X 16

1 120 ₽
7

420685635 Stator Plate 650W

Stator Plate 650W

47 200 ₽
8

420241956 Allen Screw M6 X 40

Allen Screw M6 X 40

300 ₽
9

420685646 Magneto Flywheel

Magneto Flywheel

0 ₽
10

420627270 Shim

Shim

1 080 ₽
11

420241549 Socket Head Screw M16 X 35

Socket Head Screw M16 X 35

2 230 ₽
12

420440854 Flanged Torx Screw M8 X 16

Flanged Torx Screw M8 X 16

1 540 ₽
13

420659113 Sprag Clutch

Sprag Clutch

25 650 ₽
14

420659261 Sprag Clutch Housing

Sprag Clutch Housing

14 090 ₽
15

420434238 Free Wheel Gear, 64 Teeth

Free Wheel Gear, 64 Teeth

10 090 ₽
16

420229475 Needle Pin

Needle Pin

3 900 ₽
17

420634741 Double Gear

Double Gear

17 890 ₽
18

420892423 Starter Ass'y. Includes 18 To 19

Starter Ass'y. Includes 18 To 19

0 ₽
19

420250140 O-Ring. Included In Gasket Kit

O-Ring. Included In Gasket Kit

3 000 ₽
20

420440647 Flanged Torx Screw M6 X 30

Flanged Torx Screw M6 X 30

740 ₽
21

420866714 Tie Rap

Tie Rap

670 ₽
22

420881140 Carbon Brush Set

Carbon Brush Set

4 890 ₽
B

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
Y

420297616 Klueber Paste, 46 MR 401, 60 g

Klueber Paste, 46 MR 401, 60 g

2 860 ₽
