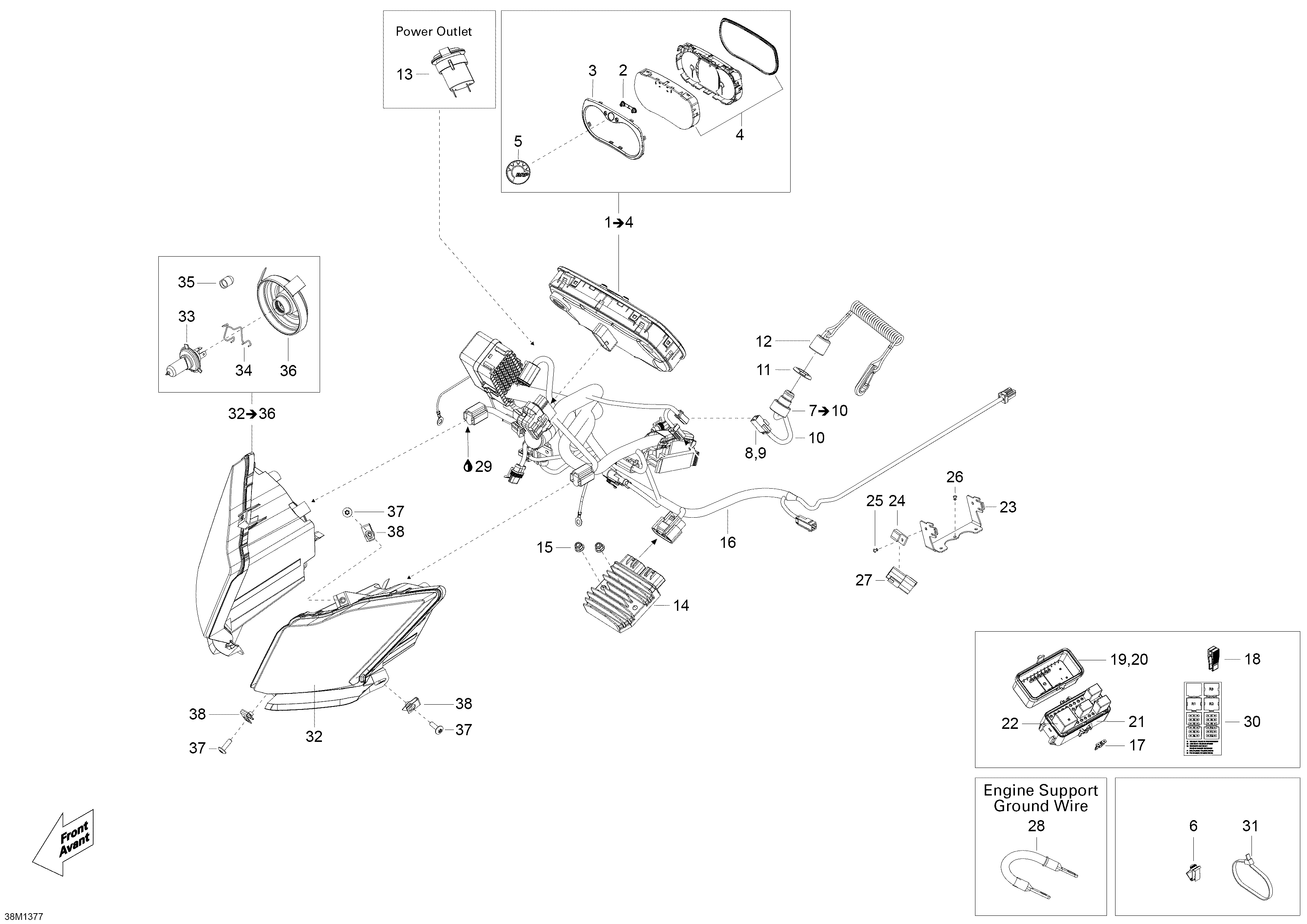

10- Electrical System для BRP Ski-Doo Skandic SWT 600 ACE (4-strokes) XU - 2013
-
№АртикулНазвание
-
1515177395 Speedometer Ass'y. Includes 1 To 4Speedometer Ass'y. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 LensLens
-
5219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
6414227300 ClipClip
-
7515177249 DESS Switch. Includes 7 To 10DESS Switch. Includes 7 To 10
-
8515175232 Male TerminalMale Terminal
-
9515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
10409902000 Tubing 12 mmTubing 12 mm
-
11278000508 Safety Switch NutSafety Switch Nut
-
12515177057 DESS CapDESS Cap
-
13710001248 Outlet DCOutlet DC
-
14515177325 RegulatorRegulator
-
15233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
16515177075 Main Harness Ass'yMain Harness Ass'y
-
17710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
17710000743 Little Fuse, 7.5 AmperesLittle Fuse, 7.5 Amperes
-
17710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
17710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
17710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
17710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
18710000781 Fuse PullerFuse Puller
-
19710001026 Fuse CoverFuse Cover
-
20278002172 FoamFoam
-
21710000660 Fuse Box Ass'yFuse Box Ass'y
-
22515176775 Relay, 50 AMPRelay, 50 AMP
-
22515176774 Relay, 30 AMPRelay, 30 AMP
-
23515177073 Fusebox SupportFusebox Support
-
24270000141 ClipClip
-
25293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
26390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
27515176234 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
28515176883 Ground WireGround Wire
-
30516004376 Decal, FuseboxDecal, Fusebox
-
31414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
31293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
31293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
32517304194 RH Headlamp Ass'y. Includes 32 To 36RH Headlamp Ass'y. Includes 32 To 36
-
32517304195 LH Headlamp Ass'y. Includes 32 To 36LH Headlamp Ass'y. Includes 32 To 36
-
33515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
35515176498 CapCap
-
36515176499 CoverCover
-
37250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
38250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
