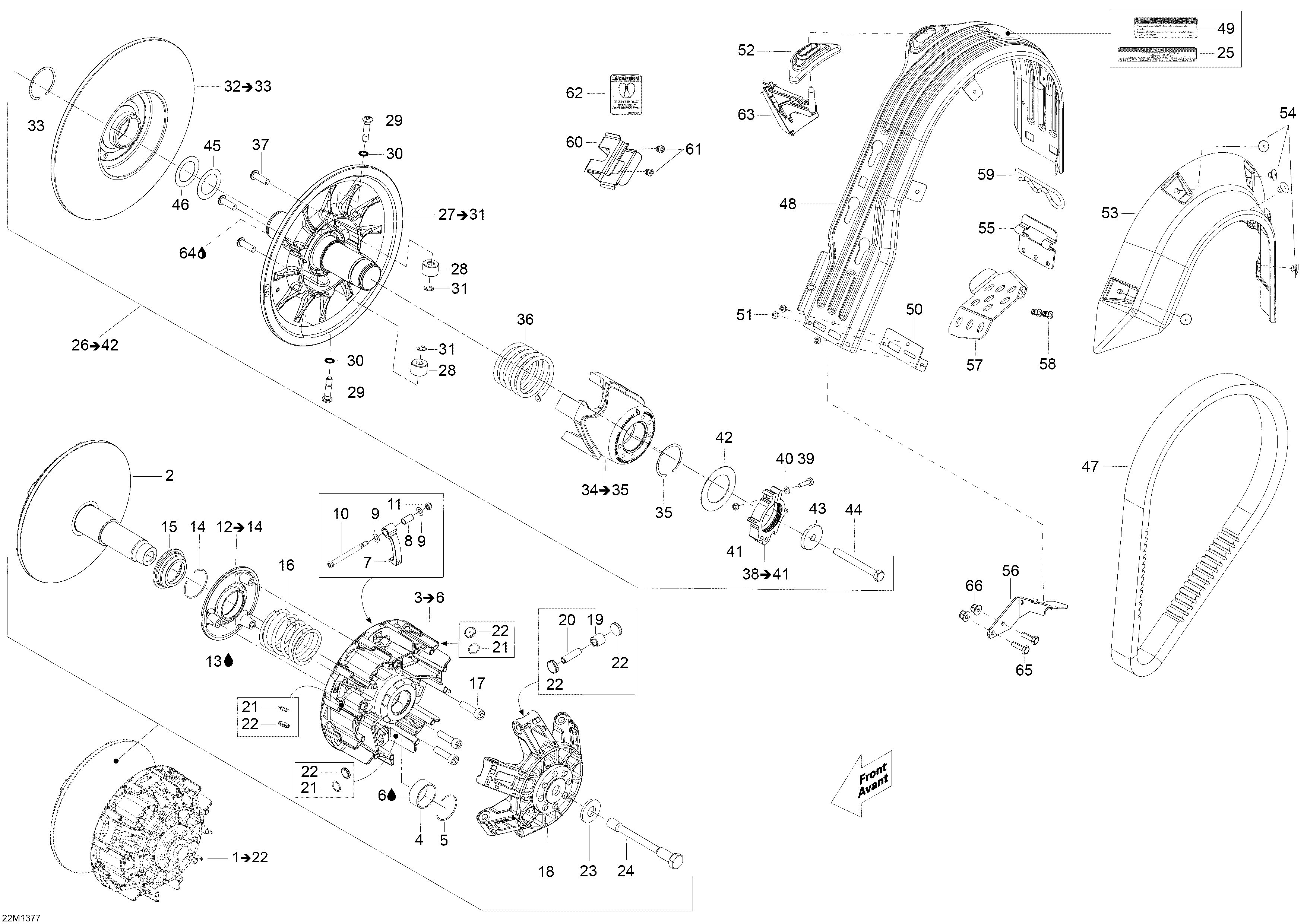

05- Pulley System для BRP Ski-Doo Skandic SWT 600 ACE (4-strokes) XU - 2013
-
№АртикулНазвание
-
2417223286 Fixe Flange Ass'yFixe Flange Ass'y
-
3417223606 Slider Flange Ass'y. Includes 3 To 6Slider Flange Ass'y. Includes 3 To 6
-
4293350079 Sliding Flange Ass'ySliding Flange Ass'y
-
5293370065 CirclipCirclip
-
7417223450 Ramp 716Ramp 716
-
8293350078 Journal BearingJournal Bearing
-
9417223255 Thrust WasherThrust Washer
-
10417223694 Ramp AxleRamp Axle
-
11232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
12417223461 Slider Adaptor Ass'y. Includes 12 To 14Slider Adaptor Ass'y. Includes 12 To 14
-
14293370063 CirclipCirclip
-
15417223155 Spring SeatSpring Seat
-
16417223314 Spring ClutchSpring Clutch
-
17250000473 Hex. Socket Head ScrewHex. Socket Head Screw
-
18417223565 Governor Cup Ass'yGovernor Cup Ass'y
-
19417223767 RollerRoller
-
20417223257 Roller AxleRoller Axle
-
21293300145 O-ringO-ring
-
22417223269 Slider ShoeSlider Shoe
-
23250200006 Spring Washer 14 mmSpring Washer 14 mm
-
24417300407 Drive Bolt PulleyDrive Bolt Pulley
-
25516005503 Decal, EnglishDecal, English
-
27417127346 Fixed Flange Ass'y. Includes 27 To 31Fixed Flange Ass'y. Includes 27 To 31
-
28417127189 RollerRoller
-
29417127294 Pivot StudPivot Stud
-
30250200009 Lock Washer 8 mmLock Washer 8 mm
-
31250400061 Spring Pin M3 X 18Spring Pin M3 X 18
-
32417127231 Slider Flange Ass'y. Includes 32 To 33Slider Flange Ass'y. Includes 32 To 33
-
33293370049 CirclipCirclip
-
34417127240 Cam Ass'y. Includes 34 To 35Cam Ass'y. Includes 34 To 35
-
35293370049 CirclipCirclip
-
36417127344 Spring ReleaseSpring Release
-
37250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
38415129604 Calibration Ass'y. Includes 38 To 41Calibration Ass'y. Includes 38 To 41
-
39205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
40234051410 Flat Washer M5Flat Washer M5
-
41232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
42417127155 WasherWasher
-
43517302322 Strength WasherStrength Washer
-
44207287544 Hex. Cap Screw M8 X 75Hex. Cap Screw M8 X 75
-
45417300265 SpacerSpacer
-
46504112000 ShimShim
-
47417300127 Drive BeltDrive Belt
-
48417300382 Belt GuardBelt Guard
-
49516004649 Security label, Belt GuardSecurity label, Belt Guard
-
50417300380 ReinforcementReinforcement
-
51390909200 Avex RivetAvex Rivet
-
52417300381 GuideGuide
-
53417300356 Side ProtectorSide Protector
-
54293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
55417300413 Belt Guard BracketBelt Guard Bracket
-
56417300451 Belt Guard BracketBelt Guard Bracket
-
57518327035 Brake Hose CoverBrake Hose Cover
-
58293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
59114045200 Hair PinHair Pin
-
60517281905 BracketBracket
-
61390909100 Avex RivetAvex Rivet
-
62516005511 Belt Decal, EnglishBelt Decal, English
-
63512060509 Module SupportModule Support
-
65207162044 Hex. Screw M6 X 20Hex. Screw M6 X 20
-
66233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
