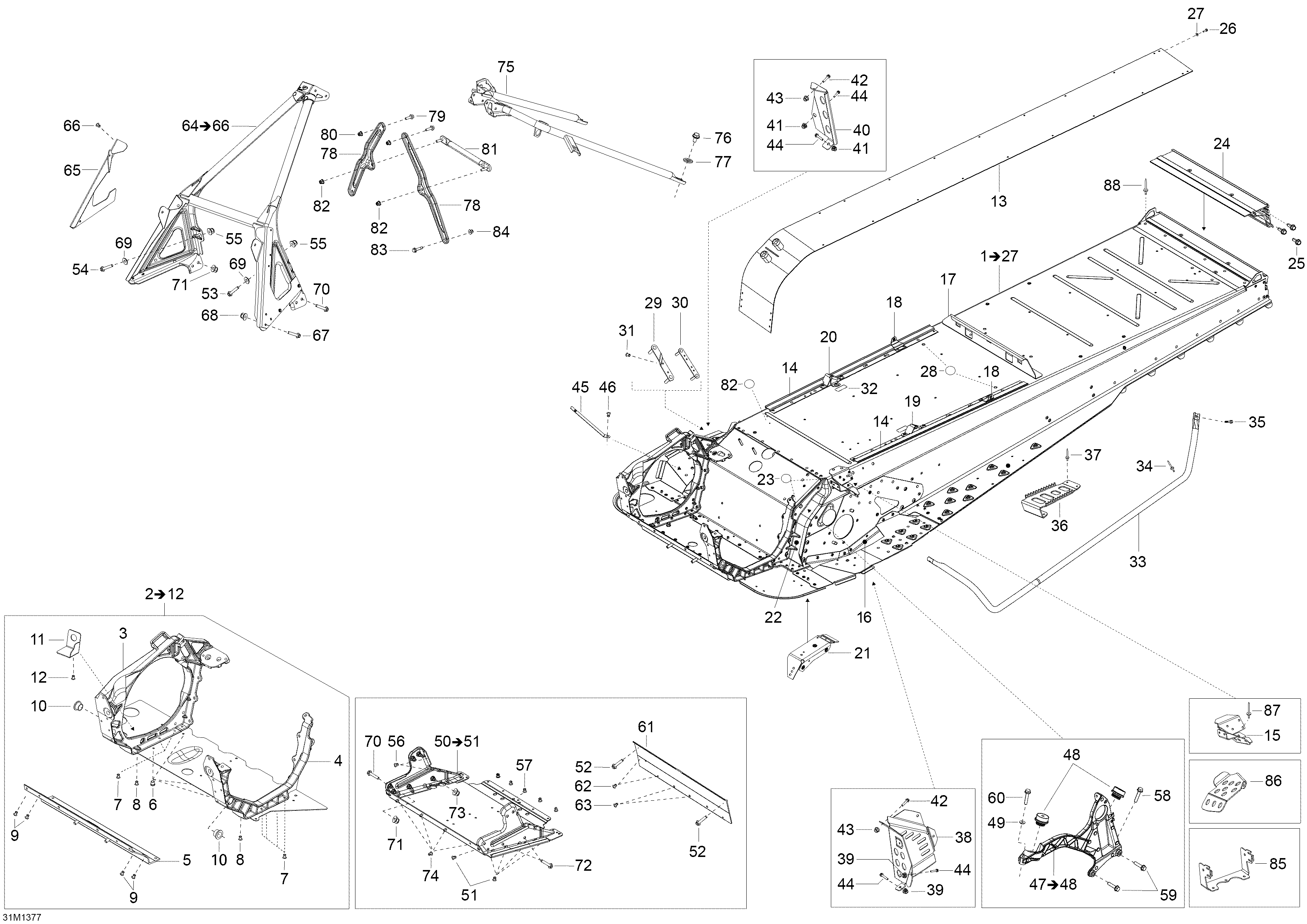

09- Frame для BRP Ski-Doo Skandic SWT 600 ACE (4-strokes) XU - 2013
-
№АртикулНазвание
-
1518327038 Frame. Includes 1 To 27. Includes 1 To 27Frame. Includes 1 To 27. Includes 1 To 27
-
2518326518 E Module. Includes 2 To 12. Includes 2 To 12E Module. Includes 2 To 12. Includes 2 To 12
-
3518326328 RH Side MemberRH Side Member
-
4518326330 LH Side MemberLH Side Member
-
5518326198 Front MemberFront Member
-
6605636002 Clinch Nut Hexsert M8Clinch Nut Hexsert M8
-
7390909100 Avex RivetAvex Rivet
-
8293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
9293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10505072690 Leg CushionLeg Cushion
-
11518327185 Muffler SupportMuffler Support
-
12293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
13509000645 Radiator TunnelRadiator Tunnel
-
14518326107 Fastening railFastening rail
-
18518327457 Seat Box BracketSeat Box Bracket
-
19518326109 Support Tube Bracket LHSupport Tube Bracket LH
-
20518326110 Support Tube Bracket RHSupport Tube Bracket RH
-
21518326430 Clinch nut plateClinch nut plate
-
23518325560 Adhesive PatchAdhesive Patch
-
24518325645 Rear ProfileRear Profile
-
25207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
26205061244 Socket ScrewSocket Screw
-
28518325560 Adhesive PatchAdhesive Patch
-
29518326123 Gearbox Front PlateGearbox Front Plate
-
30518326124 Gearbox Rear PlateGearbox Rear Plate
-
31390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
32518326357 Rubber CoverRubber Cover
-
33518325641 Footboard Support Tube, LHFootboard Support Tube, LH
-
33518325642 Footboard Support Tube, RHFootboard Support Tube, RH
-
34390909100 Avex RivetAvex Rivet
-
35207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
36520000492 FootrestFootrest
-
37390909100 Avex RivetAvex Rivet
-
38518327445 Toe Hook LHToe Hook LH
-
39605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
40518327447 Toe Hook RHToe Hook RH
-
41605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
42207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
43233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
44250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
45514054846 Spring BracketSpring Bracket
-
46390909200 Avex RivetAvex Rivet
-
47518327645 Brace Ass'y LH. Includes 47 To 48. Includes 47 To 48Brace Ass'y LH. Includes 47 To 48. Includes 47 To 48
-
48512060295 Rubber MountRubber Mount
-
49234281474 Conical Spring Washer M8Conical Spring Washer M8
-
50518326213 S Module. Includes 50 To 51. Includes 50 To 51S Module. Includes 50 To 51. Includes 50 To 51
-
51390909200 Avex RivetAvex Rivet
-
52210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
53207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
54207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
55233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
56390909100 Avex RivetAvex Rivet
-
57390909200 Avex RivetAvex Rivet
-
58207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
59207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
60207584044 Hex. Flanged Screw M8 X 40, Scotch GripHex. Flanged Screw M8 X 40, Scotch Grip
-
61518326140 Engine SupportEngine Support
-
62390909100 Avex RivetAvex Rivet
-
63293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
64518326754 Front Member Ass'y. Includes 64 To 66. Includes 64 To 66Front Member Ass'y. Includes 64 To 66. Includes 64 To 66
-
65502007077 Bumper Fastener LHBumper Fastener LH
-
65502007078 Bumper Fastener RHBumper Fastener RH
-
66390909200 Avex RivetAvex Rivet
-
67207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
68233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
69224061201 Flat WasherFlat Washer
-
70207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
71233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
72207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
73233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
74390909200 Avex RivetAvex Rivet
-
75518326103 Upper Support Tube WeldedUpper Support Tube Welded
-
76207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
78518326848 Upper Column SupportUpper Column Support
-
79207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
80233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
81518326355 Center Column SupportCenter Column Support
-
82233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
83250000522 Hex Flanged Screw M6 x 25Hex Flanged Screw M6 x 25
-
84233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
85515177073 Fusebox SupportFusebox Support
-
86518327035 Brake Hose CoverBrake Hose Cover
-
87390909200 Avex RivetAvex Rivet
-
88293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
