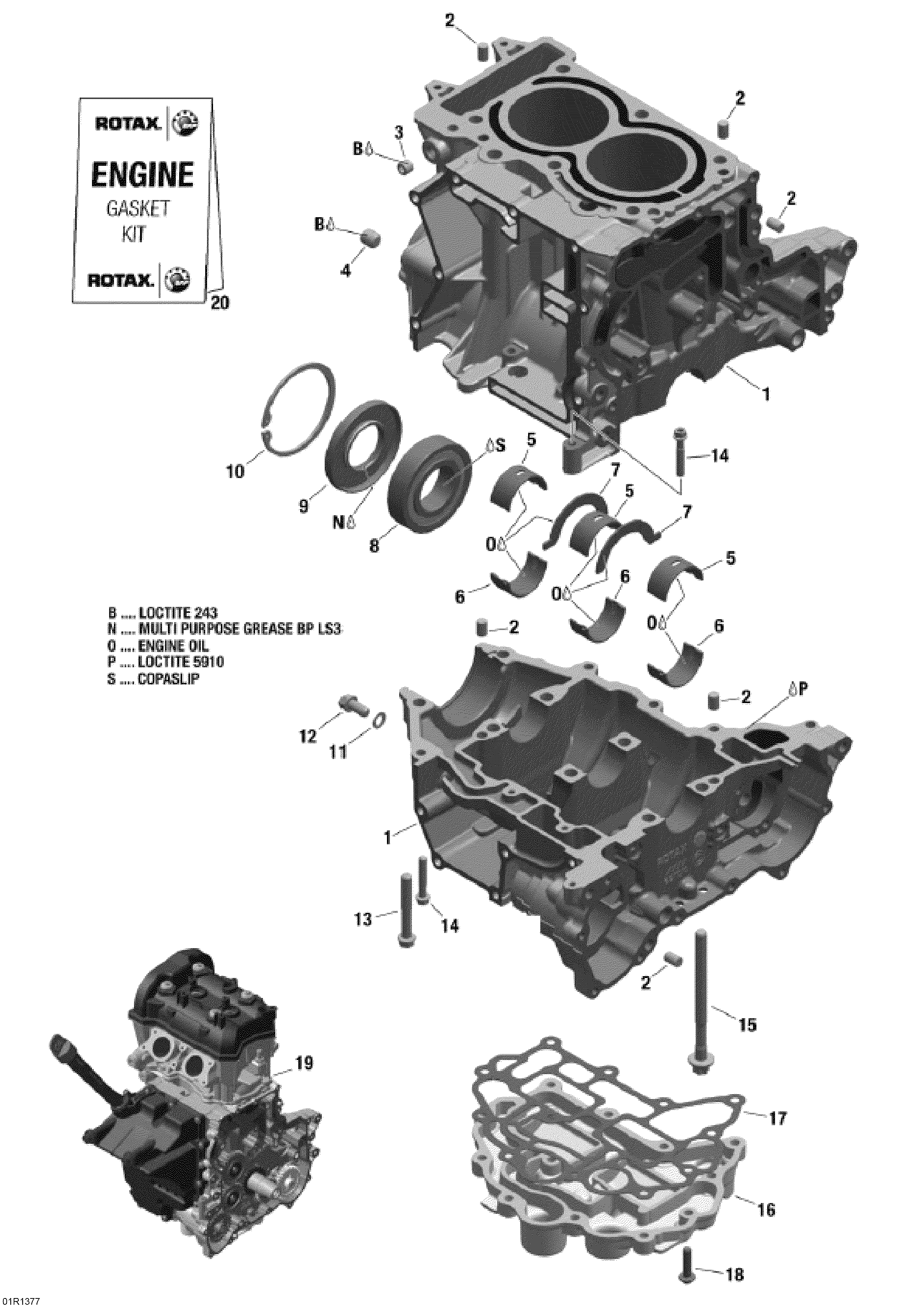

01- Engine Block для BRP Ski-Doo Skandic SWT 600 ACE (4-strokes) XU - 2013
-
№АртикулНазвание
-
1420892853 Crankcase Ass'y. Includes 1 To 6Crankcase Ass'y. Includes 1 To 6
-
2420632010 Center Pin 8 X 12Center Pin 8 X 12
-
3420641323 Plug Screw M10 X 1Plug Screw M10 X 1
-
4420840500 Threaded PinThreaded Pin
-
5420933180 CushionCushion
-
6420933185 CushionCushion
-
7420933140 Ring HalfRing Half
-
8420832232 Ball BearingBall Bearing
-
9420431400 Oil Seal. Included In Gasket KitOil Seal. Included In Gasket Kit
-
10420845790 Retaining RingRetaining Ring
-
11420950141 Sealing Ring. Included In Gasket KitSealing Ring. Included In Gasket Kit
-
12420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
13420641213 Flanged Torx Screw M8 X 55Flanged Torx Screw M8 X 55
-
14420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
15420940945 Flanged Torx Screw M9 X 113Flanged Torx Screw M9 X 113
-
16420911122 Oil Sump CoverOil Sump Cover
-
17420431630 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
18420841546 Flanged Torx Screw M6 X 25. RETRY TORQUE 11 NM +/- 12%Flanged Torx Screw M6 X 25. RETRY TORQUE 11 NM +/- 12%
-
19420060201 Engine 602 ACEEngine 602 ACE
-
20420686020 Gasket Set, EngineGasket Set, Engine
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
P293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
