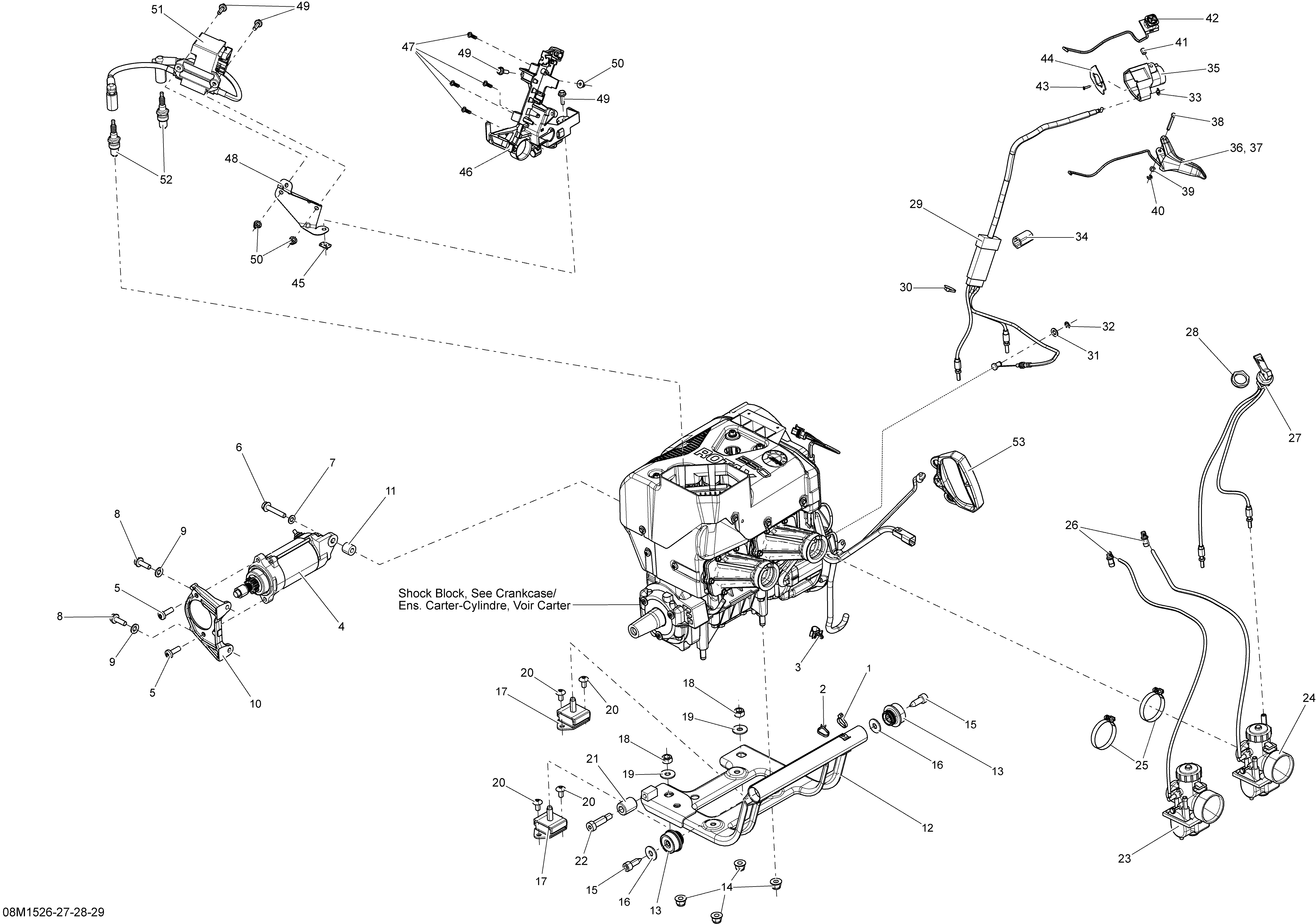

01- Engine _08M1527 для BRP Ski-Doo Grand Touring Sport 550F XP137 - 2015

№

Артикул

Название
1

414115200 Tie-Rap 180 mm

Tie-Rap 180 mm

60 ₽
2

414115200 Tie-Rap 180 mm

Tie-Rap 180 mm

60 ₽
3

515176795 Clip

Clip

1 980 ₽
4

515177389 Starter. Electric Start

Starter. Electric Start

46 810 ₽
5

250000248 Torx Screw M8 X 25, Scotch Grip. Electric Start

Torx Screw M8 X 25, Scotch Grip. Electric Start

280 ₽
6

207584544 Hex. Flanged Screw M8 X 45, Scotch Grip. Electric Start

Hex. Flanged Screw M8 X 45, Scotch Grip. Electric Start

2 650 ₽
7

250200008 Flat Washer With Teflon 8 mm. Electric Start

Flat Washer With Teflon 8 mm. Electric Start

1 330 ₽
8

207582586 Hex. Flanged Screw M8 X 25, Scotch Grip. Electric Start

Hex. Flanged Screw M8 X 25, Scotch Grip. Electric Start

670 ₽
9

250200146 Conical Spring Washer M8. Electric Start

Conical Spring Washer M8. Electric Start

100 ₽
10

512060656 Support. Electric Start

Support. Electric Start

18 870 ₽
11

515176597 Spacer. Electric Start

Spacer. Electric Start

1 150 ₽
12

512060637 Engine Support Ass'y. Includes 12 to 13

Engine Support Ass'y. Includes 12 to 13

18 960 ₽
13

512059691 Rubber Mount

Rubber Mount

16 700 ₽
14

233201414 Hex. Flanged Elastic Nut M10

Hex. Flanged Elastic Nut M10

810 ₽
15

250000094 Screw M10 X 30

Screw M10 X 30

2 100 ₽
16

250200014 Flat Washer M10

Flat Washer M10

540 ₽
17

512060564 Rubber Mount

Rubber Mount

13 300 ₽
18

232500416 Elastic Stop Nut M10

Elastic Stop Nut M10

670 ₽
19

250200014 Flat Washer M10

Flat Washer M10

540 ₽
20

250000198 Torx Truss Screw M8 X 16

Torx Truss Screw M8 X 16

310 ₽
21

512060395 Stopper

Stopper

6 020 ₽
22

250000463 Socket Head Screw, Scotch Grip

Socket Head Screw, Scotch Grip

2 650 ₽
23

403138814 Carburetor VM30-219, PTO

Carburetor VM30-219, PTO

101 850 ₽
24

403138813 Carburetor VM30-218, MAG

Carburetor VM30-218, MAG

129 850 ₽
25

512059834 Gemi Clamp

Gemi Clamp

990 ₽
26

414814100 Male Connector

Male Connector

800 ₽
27

512060674 Choke Cable

Choke Cable

15 470 ₽
28

512060671 Plastic Nut

Plastic Nut

330 ₽
29

512060891 Throttle Cable

Throttle Cable

9 480 ₽
30

293750002 Tie-Rap 142 mm

Tie-Rap 142 mm

380 ₽
31

234081100 Flat Washer 8 mm, Nylon

Flat Washer 8 mm, Nylon

460 ₽
32

414753500 Circlip

Circlip

260 ₽
33

414274500 Circlip

Circlip

320 ₽
34

512060313 Protector

Protector

800 ₽
35

512060603 Throttle Housing

Throttle Housing

3 500 ₽
36

512060307 Handle Ass'y. Includes 36 to 37

Handle Ass'y. Includes 36 to 37

8 000 ₽
37

515175232 Male Terminal

Male Terminal

540 ₽
38

414438700 Lever Pin

Lever Pin

950 ₽
39

234051600 Flat Washer M5, Stainless

Flat Washer M5, Stainless

280 ₽
40

293370050 Circlip

Circlip

150 ₽
41

414440800 Socket Set Screw M8 X 10

Socket Set Screw M8 X 10

1 330 ₽
42

515177362 Kill Switch

Kill Switch

44 260 ₽
43

250000265 Torx Screw M2.9 X 12

Torx Screw M2.9 X 12

50 ₽
44

512060390 Plate

Plate

3 090 ₽
45

293100003 Nut M6

Nut M6

2 690 ₽
46

512060924 Coils Support

Coils Support

3 090 ₽
47

241151640 Hex. Flanged Screw K50 X 16

Hex. Flanged Screw K50 X 16

540 ₽
48

512060460 Support Coils

Support Coils

1 630 ₽
49

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20

1 470 ₽
50

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

490 ₽
51

512060324 Calibrated Module

Calibrated Module

138 320 ₽
52

512059552 Spark Plug, NGK BR9ECS-5

Spark Plug, NGK BR9ECS-5

6 110 ₽
53

512060136 Starter Grip

Starter Grip

7 250 ₽
