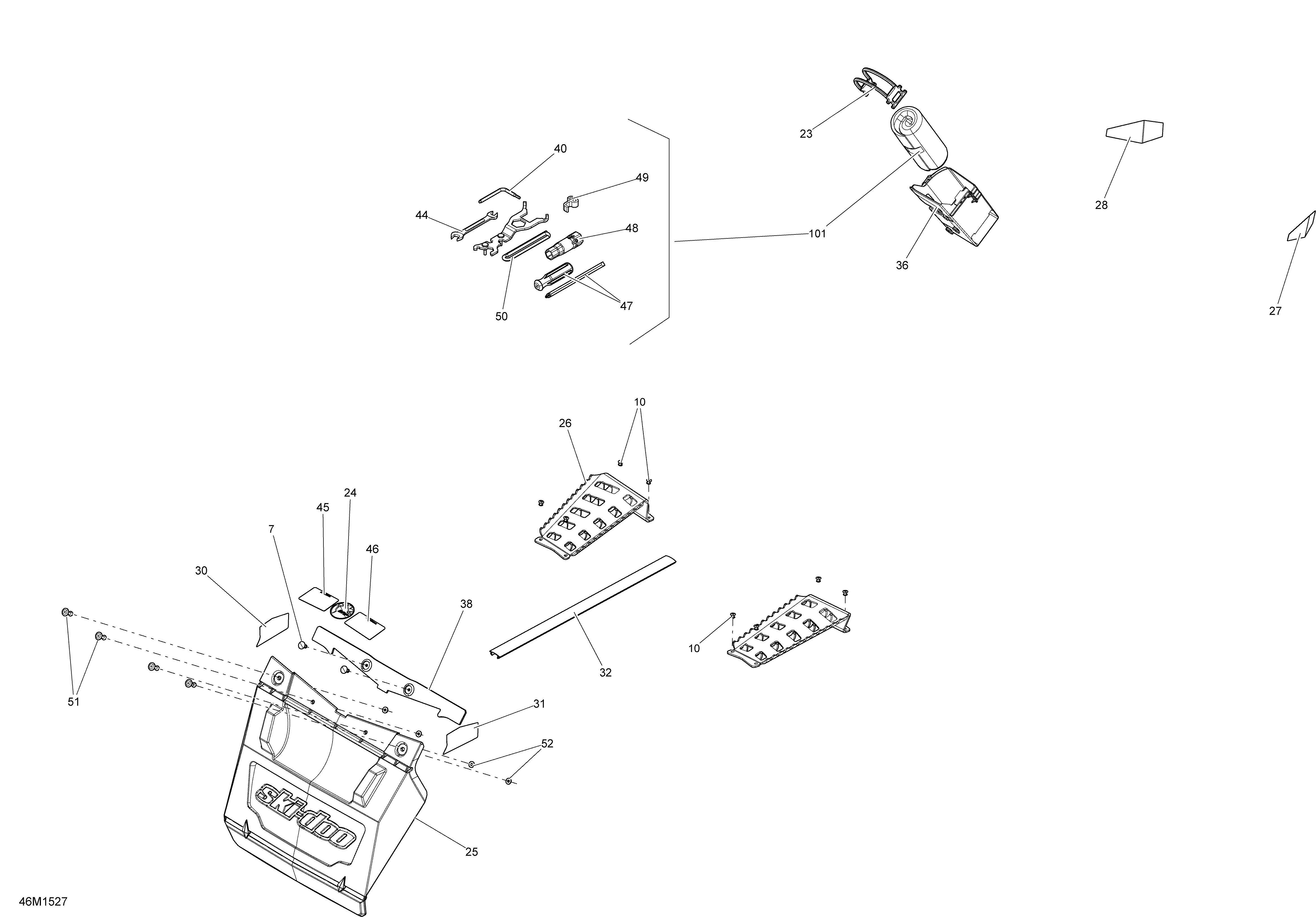

09- Utilities _46M1527 для BRP Ski-Doo Grand Touring Sport 550F XP137 - 2015
-
№АртикулНазвание
-
7293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
10390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
23520000528 LatchLatch
-
24219903947 BRP Logo, 48 mmBRP Logo, 48 mm
-
25520000659 Snow GuardSnow Guard
-
26520000887 RH FootrestRH Footrest
-
26520000888 LH FootrestLH Footrest
-
27520000718 Yellow RH Front ReflectorYellow RH Front Reflector
-
28520000719 Yellow LH Front ReflectorYellow LH Front Reflector
-
30520000880 Red LH Rear ReflectorRed LH Rear Reflector
-
31520000881 Red RH Rear ReflectorRed RH Rear Reflector
-
32520000829 Radiator TrimRadiator Trim
-
36520000894 Tool Kit RackTool Kit Rack
-
38520000953 Esthetic PlateEsthetic Plate
-
40520001142 Spacing ToolSpacing Tool
-
44529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
45516006431 LH Warning Decal, SafetyLH Warning Decal, Safety
-
46516005587 RH Warning Decal, SafetyRH Warning Decal, Safety
-
47529000004 Screw DriverScrew Driver
-
48529000046 Set Key, 16/21 mmSet Key, 16/21 mm
-
49529000060 Starter GripStarter Grip
-
50412500200 Starter Rope, MeterStarter Rope, Meter
-
51293150101 Pop Rivet 3/16''Pop Rivet 3/16''
-
52517124300 WasherWasher
-
101529000077 Tool KitTool Kit
