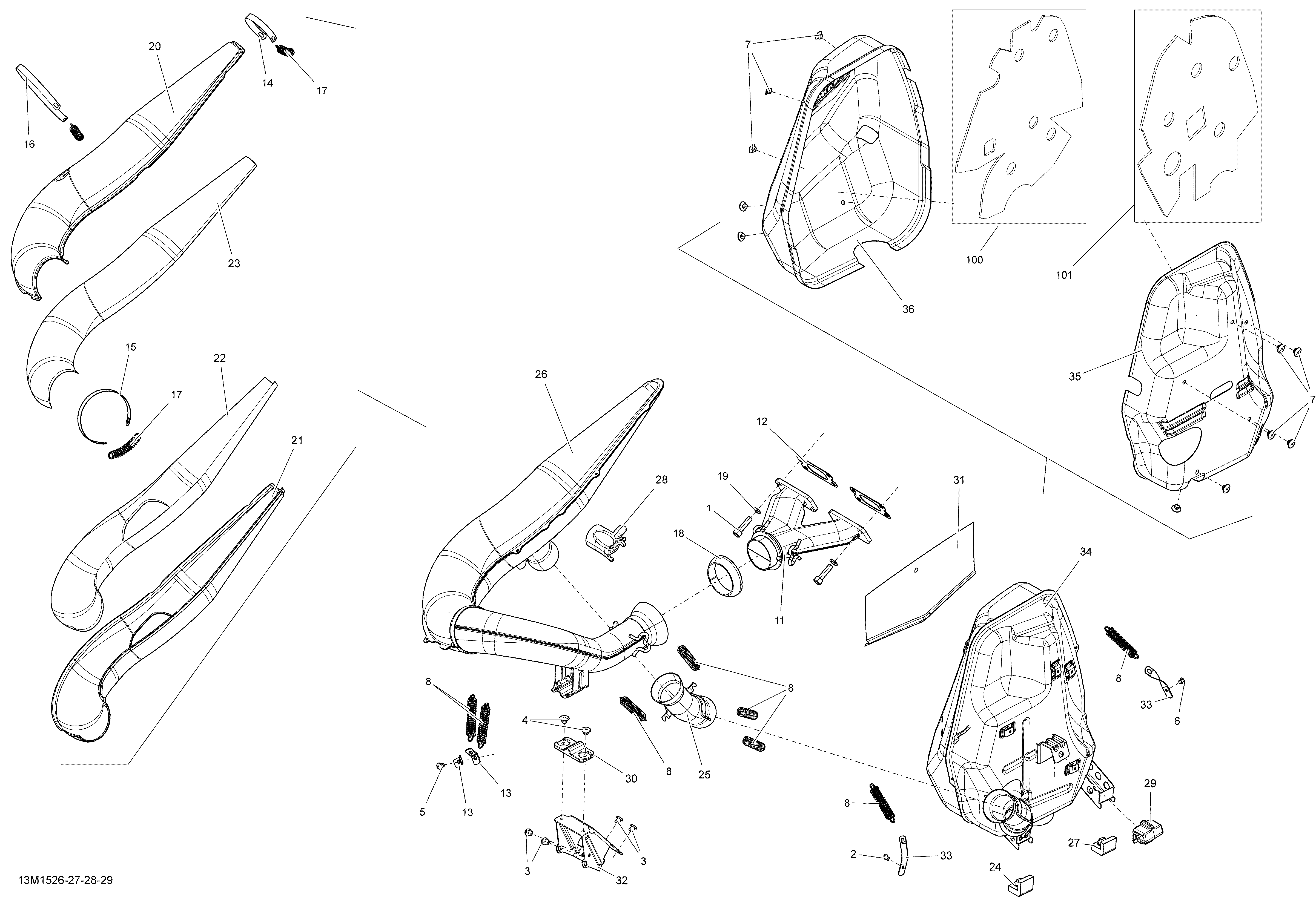

01- Exhaust System _13M1527 для BRP Ski-Doo Grand Touring Sport 550F XP137 - 2015
-
№АртикулНазвание
-
1205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
2293150027 Avdel RivetAvdel Rivet
-
4293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
5390909100 Avex Rivet. <>TUNDRAAvex Rivet. <>TUNDRA
-
6390909200 Avex RivetAvex Rivet
-
7390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
8415107100 SpringSpring
-
11420673065 Exhaust ManifoldExhaust Manifold
-
12420831849 Gasket 1.0 mmGasket 1.0 mm
-
13514053436 Spring Bracket. <>TUNDRASpring Bracket. <>TUNDRA
-
14514053492 Retaining StrapRetaining Strap
-
15514053498 Retaining StrapRetaining Strap
-
16514053502 Retaining StrapRetaining Strap
-
17514053643 SpringSpring
-
18514053644 Exhaust GasketExhaust Gasket
-
19514053837 WasherWasher
-
20514054208 Rear Upper Half-enveloppeRear Upper Half-enveloppe
-
21514054210 Rear Lower Half EnvellopeRear Lower Half Envellope
-
22514054243 Lower Insulating WoolLower Insulating Wool
-
23514054244 Upper Insulating WoolUpper Insulating Wool
-
24514054274 Lower StopperLower Stopper
-
25514054411 Exhaust ElbowExhaust Elbow
-
26514054414 Tuned Pipe Ass'yTuned Pipe Ass'y
-
27514054496 Lower StopperLower Stopper
-
28514054513 BumperBumper
-
29514054606 Upper StopperUpper Stopper
-
30514054617 BumperBumper
-
33514054974 Spring BracketSpring Bracket
-
34514054978 Exhaust Muffler Ass'yExhaust Muffler Ass'y
-
35514054979 LH DeflectorLH Deflector
-
36514054984 RH DeflectorRH Deflector
-
100514054421 LH Insulated WoolLH Insulated Wool
-
101514054711 RH Insulating WoolRH Insulating Wool
