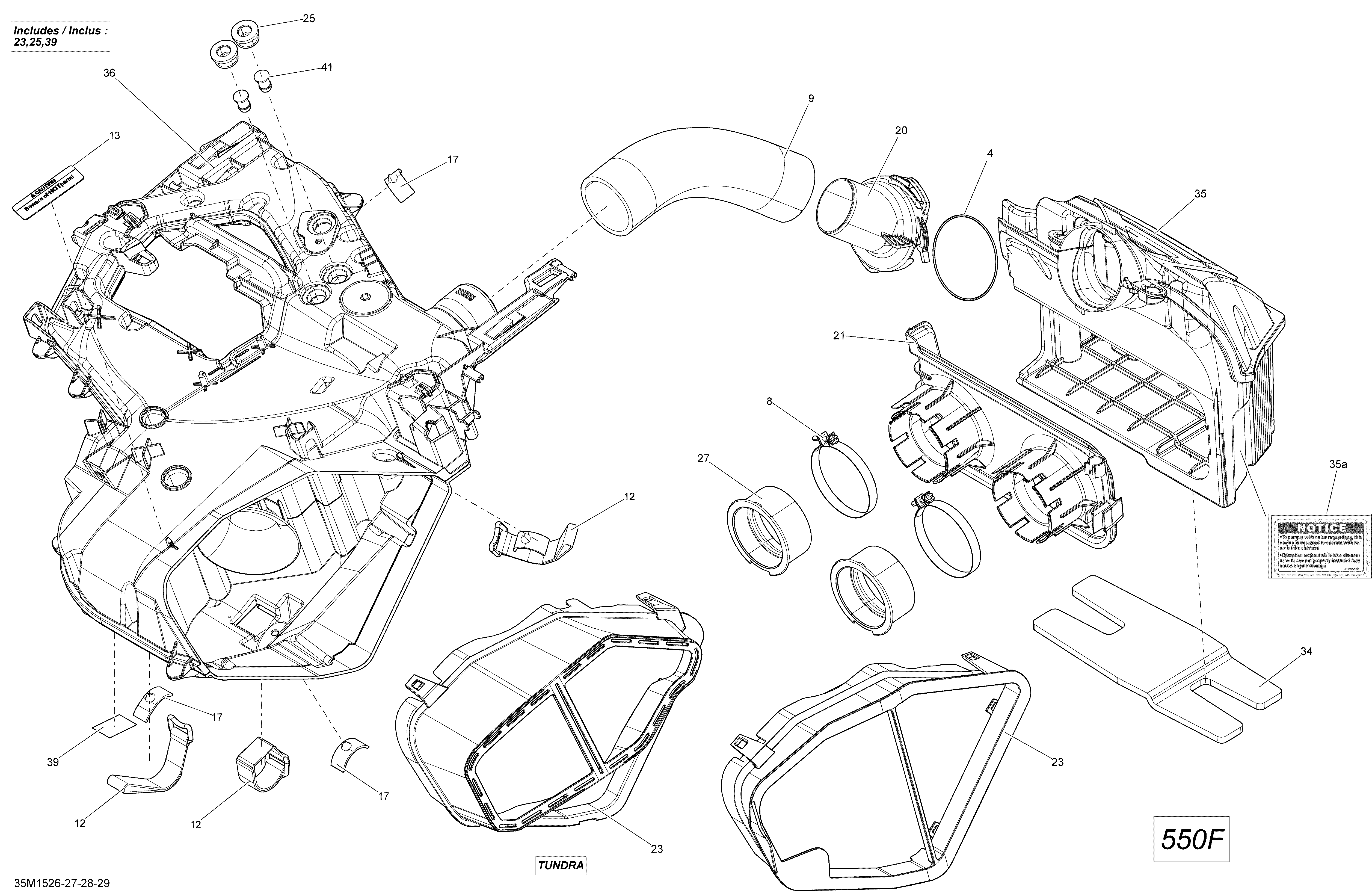

02- Air Intake System _35M1527 для BRP Ski-Doo Grand Touring Sport 550F XP137 - 2015
-
№АртикулНазвание
-
4293300115 O-RingO-Ring
-
8508000369 Gemi ClampGemi Clamp
-
9508000406 TubeTube
-
12508000532 Velcro StripVelcro Strip
-
13516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
17508000744 StopperStopper
-
20508000562 LinkLink
-
21508000564 Adapter PlateAdapter Plate
-
23508000568 Air FilterAir Filter
-
25508000574 GrommetGrommet
-
27508000594 Air Intake AdapterAir Intake Adapter
-
34508000674 Insulated FoamInsulated Foam
-
35508000680 Primary Chamber Ass'y. Includes 35 To 35aPrimary Chamber Ass'y. Includes 35 To 35a
-
35a516005876 Notice Decal, Air Intake SilencerNotice Decal, Air Intake Silencer
-
36508000712 Secondary Chamber Ass'ySecondary Chamber Ass'y
-
39509000688 Reflective SheetReflective Sheet
