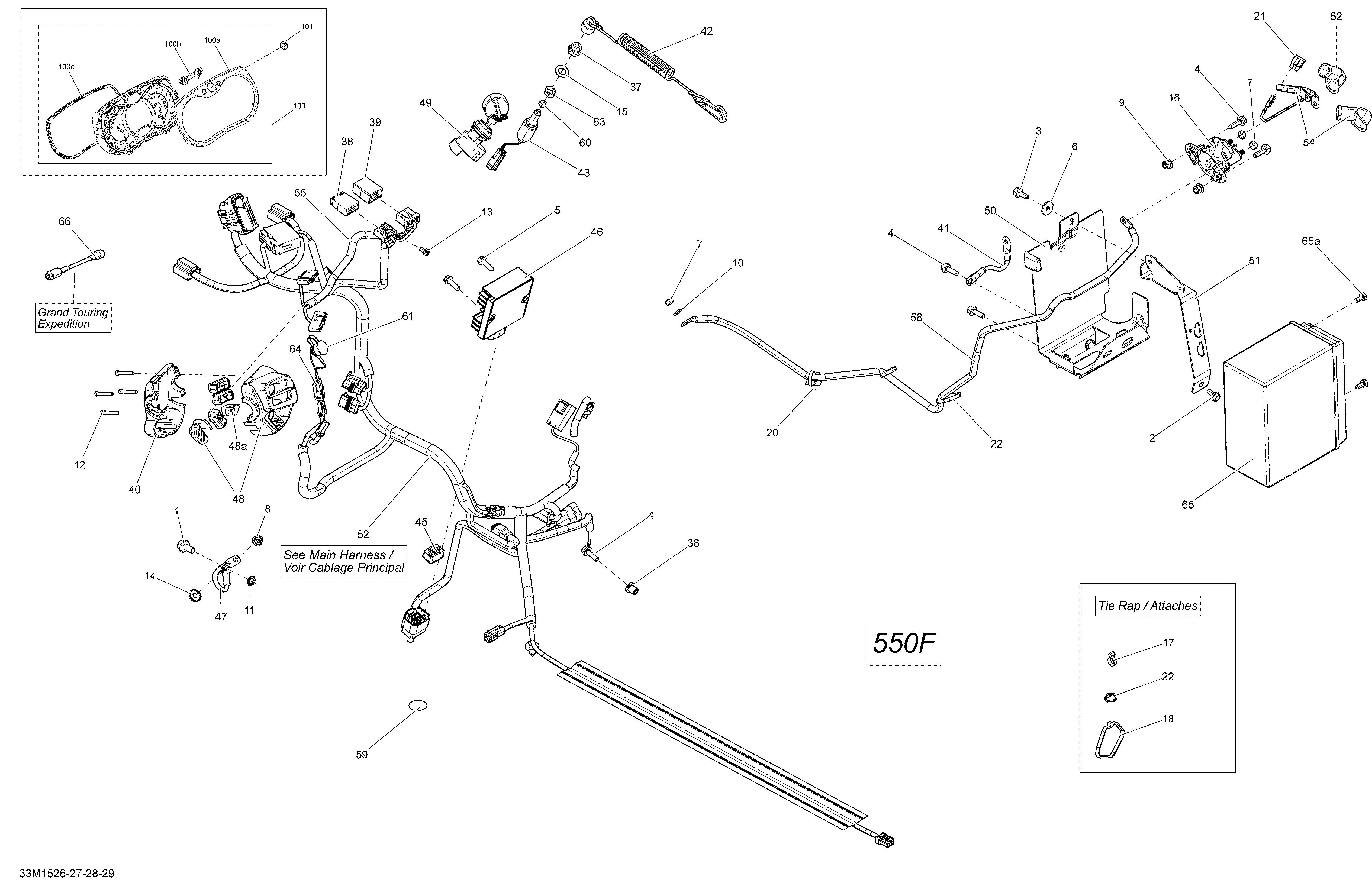

10- Electrical System _33M1527 для BRP Ski-Doo Grand Touring Sport 550F XP137 - 2015
-
№АртикулНазвание
-
1207581646 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
2207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
3207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
6224061201 Flat WasherFlat Washer
-
7232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
10234061410 Flat Washer 6 mmFlat Washer 6 mm
-
11234481608 Serrated Lock Washer 8 mmSerrated Lock Washer 8 mm
-
12250000263 Torx Screw #8-18Torx Screw #8-18
-
13250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
14250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
15250200084 Flat WasherFlat Washer
-
16278003012 Starter RelayStarter Relay
-
17293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
18293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
20293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
21410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
22414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
36293450275 InsertInsert
-
37515145900 Switch NutSwitch Nut
-
38515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
39515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
40515175926 Housing Switch PlateHousing Switch Plate
-
41515176358 Ground WireGround Wire
-
42515176463 Cap Ass'yCap Ass'y
-
43515175653 Brake SwitchBrake Switch
-
45515176681 LockLock
-
46515176699 Voltage RegulatorVoltage Regulator
-
47515176745 Ground WireGround Wire
-
48515177021 LH Housing. Includes 48 To 48aLH Housing. Includes 48 To 48a
-
48a515176088 Start/RER ButtonStart/RER Button
-
49515177063 Ignition SwirchIgnition Swirch
-
50515177264 Battery SupportBattery Support
-
51515177266 Battery StripBattery Strip
-
52515177547 Frame Wiring Harness Ass'yFrame Wiring Harness Ass'y
-
54515177576 Fuse Battery WireFuse Battery Wire
-
55515177609 Steering Wiring HarnessSteering Wiring Harness
-
58515177730 Battery/Starter WireBattery/Starter Wire
-
59518325560 Adhesive PatchAdhesive Patch
-
60570151100 Plunger CapPlunger Cap
-
61572103300 CapCap
-
62710000495 Protector CapProtector Cap
-
63732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
64515177837 Visor HarnessVisor Harness
-
65410301203 Lead Battery 18 Amperes. Includes 65 To 65aLead Battery 18 Amperes. Includes 65 To 65a
-
65a250000282 Battery Bolt KitBattery Bolt Kit
-
66515175851 ExtensionExtension
-
100515177598 Speedometer. Includes 100 To 100cSpeedometer. Includes 100 To 100c
-
100a415129349 LensLens
-
100b415129355 Speedometer ButtonSpeedometer Button
-
100c415129348 Gauge RingGauge Ring
-
101704904616 BRP Logo, 20mmBRP Logo, 20mm
