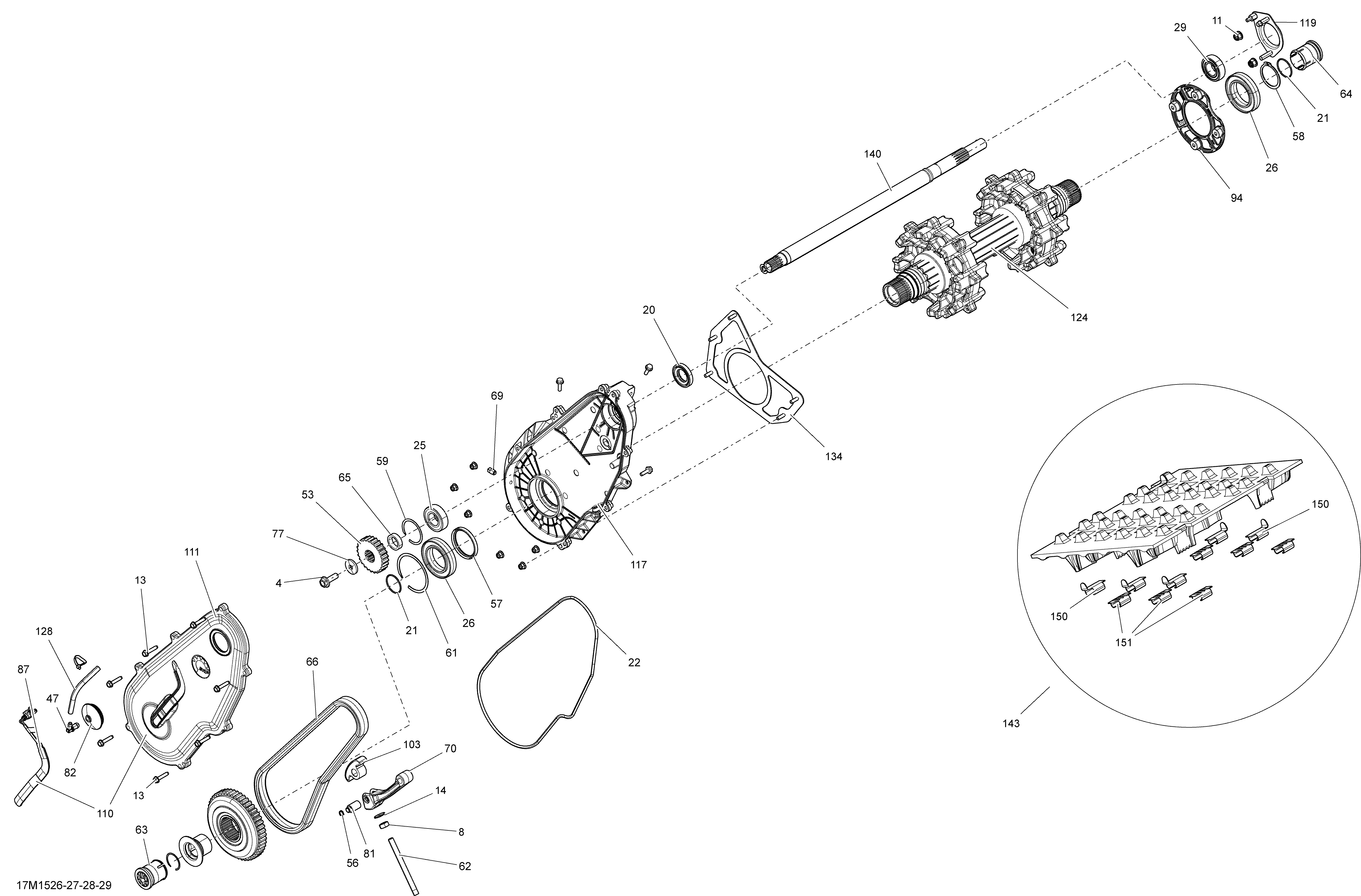

05- Drive System _17M1527 для BRP Ski-Doo Grand Touring Sport 550F XP137 - 2015
-
№АртикулНазвание
-
4207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
8232006414 Hex. Nut M10Hex. Nut M10
-
11233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
13250000360 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
14250200100 Bonded WasherBonded Washer
-
20293250175 Oil SealOil Seal
-
21293300122 O-RingO-Ring
-
22293300130 O-RingO-Ring
-
25293350055 Ball BearingBall Bearing
-
26293350059 Ball BearingBall Bearing
-
29293350074 Ball BearingBall Bearing
-
47414580700 Male ConnectorMale Connector
-
53504152031 Sprocket, 19 TeethSprocket, 19 Teeth
-
56504152282 CirclipCirclip
-
57504152571 SealSeal
-
58504152572 CirclipCirclip
-
59504152576 CirclipCirclip
-
60504152593 Sprocket, 45 TeethSprocket, 45 Teeth
-
61504152582 CirclipCirclip
-
62504152602 Adjustment ScrewAdjustment Screw
-
63504152619 Magnetic CapMagnetic Cap
-
64504152619 Magnetic CapMagnetic Cap
-
65504152628 ShimShim
-
66504152579 Drive Chain, 102 LinksDrive Chain, 102 Links
-
69504152636 Magnetic PlugMagnetic Plug
-
70504152685 Chain TensionerChain Tensioner
-
77504152784 Spring Washer M10Spring Washer M10
-
81504152841 Tensionner AxleTensionner Axle
-
82504152860 CapCap
-
87504152896 SensorSensor
-
94504152949 Housing BearingHousing Bearing
-
103504152739 Slider ChainSlider Chain
-
110504153147 Chaincase Cover Ass'yChaincase Cover Ass'y
-
111504153151 Casting CoverCasting Cover
-
117504153181 ChaincaseChaincase
-
119504153185 Bearing HousingBearing Housing
-
124504153083 Drive Axle Ass'yDrive Axle Ass'y
-
128415080200 Hose, PolyurethaneHose, Polyurethane
-
134518325816 PlatePlate
-
140504153000 CountershaftCountershaft
-
143504152734 Track Ass'y, 16X137X1.2RSTrack Ass'y, 16X137X1.2RS
