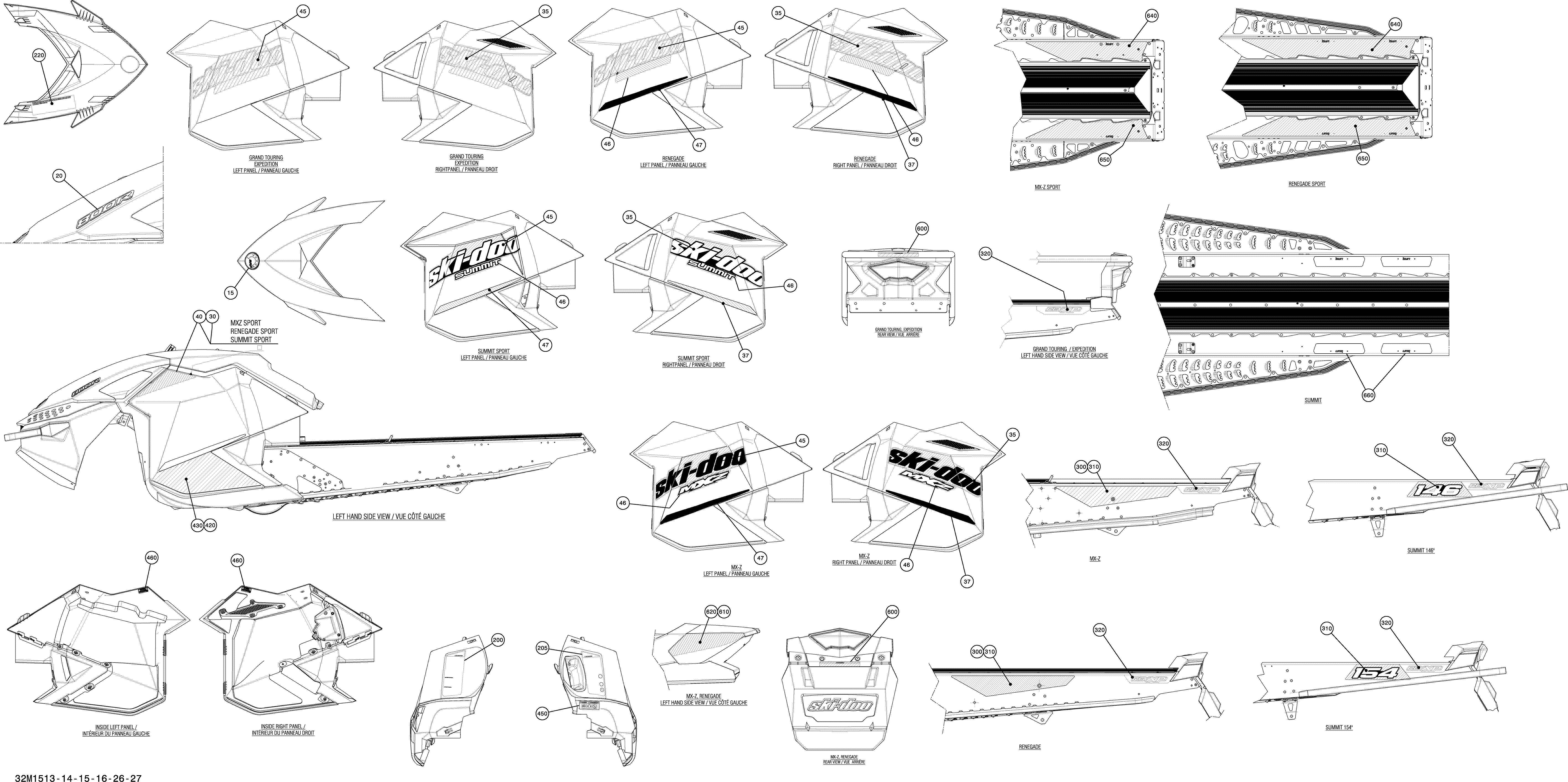

09- Decals _32M1527 для BRP Ski-Doo Grand Touring Sport 550F XP137 - 2015
-
№АртикулНазвание
-
15219903609 Logo BRP, 68 mmLogo BRP, 68 mm
-
20516006151 Hood Decal, Rotax 550fHood Decal, Rotax 550f
-
35516005296 RH Side DecalRH Side Decal
-
45516005295 LH Side DecalLH Side Decal
-
200516005227 Warning Decal, SecurityWarning Decal, Security
-
205516005228 Warning Decal, SecurityWarning Decal, Security
-
320516006321 Decal, REV XPDecal, REV XP
-
420516006180 RH Lower DecalRH Lower Decal
-
430516006179 LH Lower DecalLH Lower Decal
-
450516005226 Warning Decal, PictogramWarning Decal, Pictogram
-
460516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
600516006117 Warning Decal, TrackWarning Decal, Track
