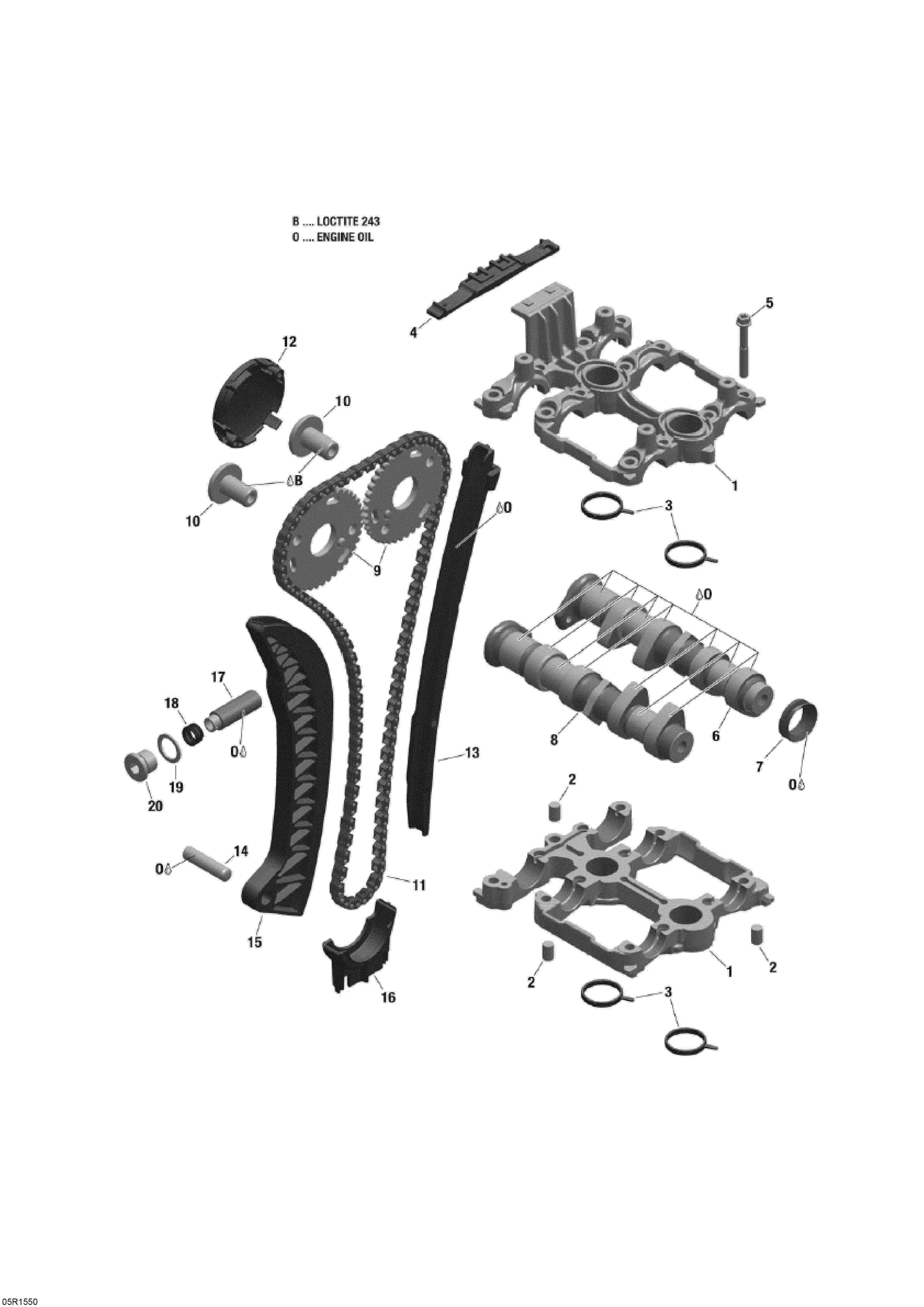

01- Camshafts And Timing Chain _05R1550 для BRP Ski-Doo Skandic WT 600 ACE - 2015
-
№АртикулНазвание
-
1420911035 Camshaft Housing Ass'y. Includes 1 To 2Camshaft Housing Ass'y. Includes 1 To 2
-
2420632010 Center Pin 8 X 12Center Pin 8 X 12
-
3420431760 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
4420936500 Chain Guide, UpperChain Guide, Upper
-
5420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
6420820112 Camshaft, ExhaustCamshaft, Exhaust
-
7420630127 V-Ring. Included In Gasket KitV-Ring. Included In Gasket Kit
-
8420820102 Camshaft, IntakeCamshaft, Intake
-
9420855120 Camshaft Sprocket, 40 TeethCamshaft Sprocket, 40 Teeth
-
10420441360 Flat Head Screw M14 X 1.5Flat Head Screw M14 X 1.5
-
11420297086 Camshaft ChainCamshaft Chain
-
12420460920 CoverCover
-
13420936010 Chain GuideChain Guide
-
14420929937 Needle PinNeedle Pin
-
15420936020 Chain Tension GuideChain Tension Guide
-
16420936510 Chain GuideChain Guide
-
17420236256 Chain TensionerChain Tensioner
-
18420238732 Compression SpringCompression Spring
-
19420430622 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
20420840591 Plug ScrewPlug Screw
