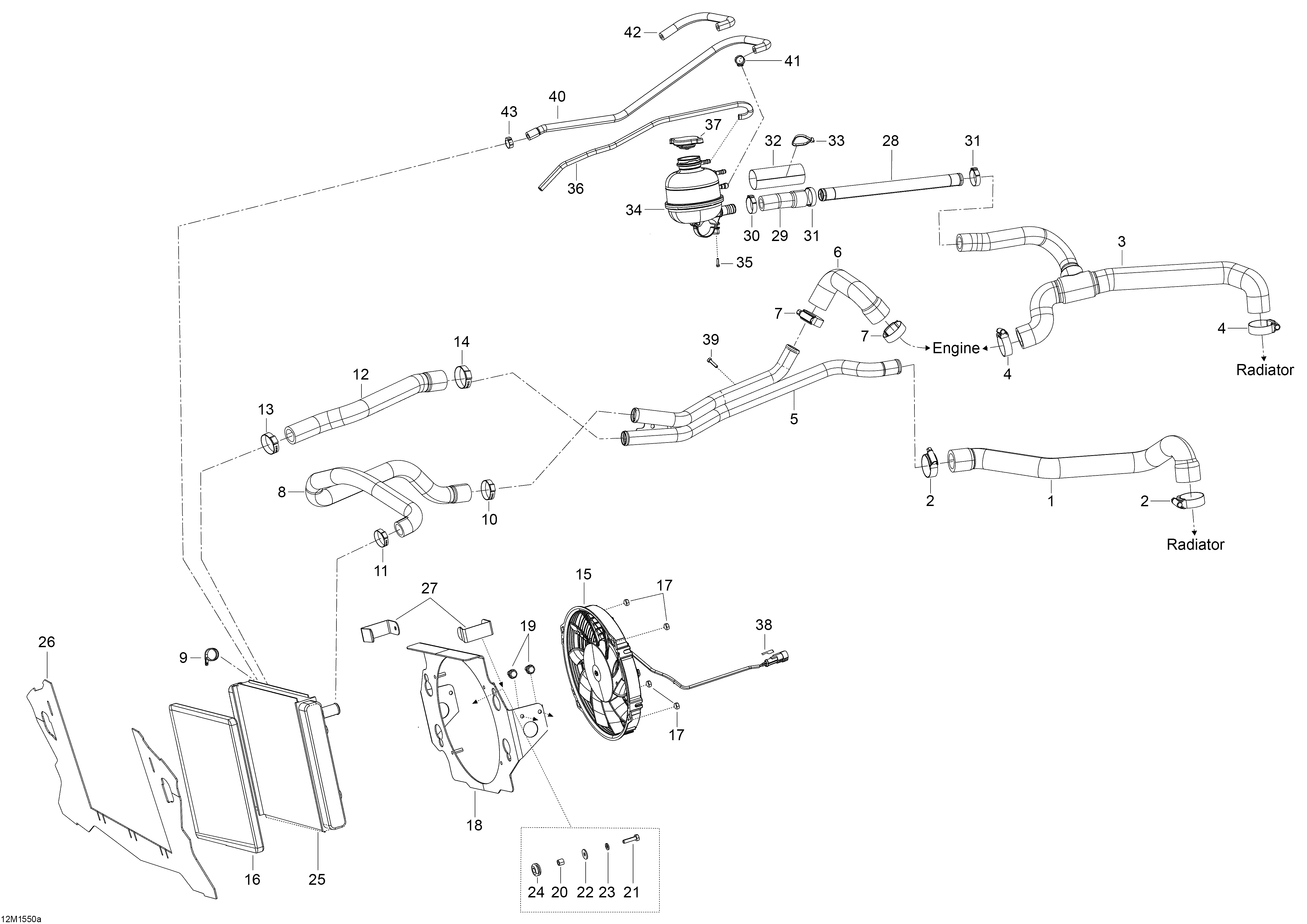

01- Cooling System _12M1550a для BRP Ski-Doo Skandic WT 600 ACE - 2015
-
№АртикулНазвание
-
1509000634 HoseHose
-
2509000443 Aba Gear ClampAba Gear Clamp
-
3509000805 Aba Gear ClampAba Gear Clamp
-
4509000443 Aba Gear ClampAba Gear Clamp
-
5509000800 Water PipeWater Pipe
-
6509000564 Engine Outlet HoseEngine Outlet Hose
-
7509000443 Aba Gear ClampAba Gear Clamp
-
8509000706 Hose, Engine->Air RadHose, Engine->Air Rad
-
9605627008 Clamp With Rubber D=30Clamp With Rubber D=30
-
10509000443 Aba Gear ClampAba Gear Clamp
-
11293650099 Crimp ClampCrimp Clamp
-
12509000707 Hose, Front Air Rad->Tunnel RadHose, Front Air Rad->Tunnel Rad
-
13293650099 Crimp ClampCrimp Clamp
-
14509000443 Aba Gear ClampAba Gear Clamp
-
15509000838 Cooling FanCooling Fan
-
16509000718 InsulationInsulation
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18509000791 Radiator supportRadiator support
-
1940870 Hex. Taping ScrewHex. Taping Screw
-
20605453745 BushingBushing
-
21207162044 Hex. Screw M6 X 20Hex. Screw M6 X 20
-
22234062410 Flat Washer 6 mmFlat Washer 6 mm
-
2320052 Spring WasherSpring Washer
-
24293720053 GrommetGrommet
-
25509000787 RadiatorRadiator
-
26509000784 Air Deflector LtsAir Deflector Lts
-
27509000703 Deflector ClipDeflector Clip
-
28509000644 PipePipe
-
29509000698 HoseHose
-
30509000442 Oetiker Gear ClampOetiker Gear Clamp
-
31293650099 Crimp ClampCrimp Clamp
-
32707001349 Protector TubeProtector Tube
-
33414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
34509000368 Coolant TankCoolant Tank
-
35241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
36276000048 Hose 6 mmHose 6 mm
-
37509000180 Pressure CapPressure Cap
-
38710000992 ClipClip
-
39207561634 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
40509000750 Breather HoseBreather Hose
-
41293650047 Crimp ClampCrimp Clamp
-
42409901800 Tubing 13 mmTubing 13 mm
-
43293650047 Crimp ClampCrimp Clamp
