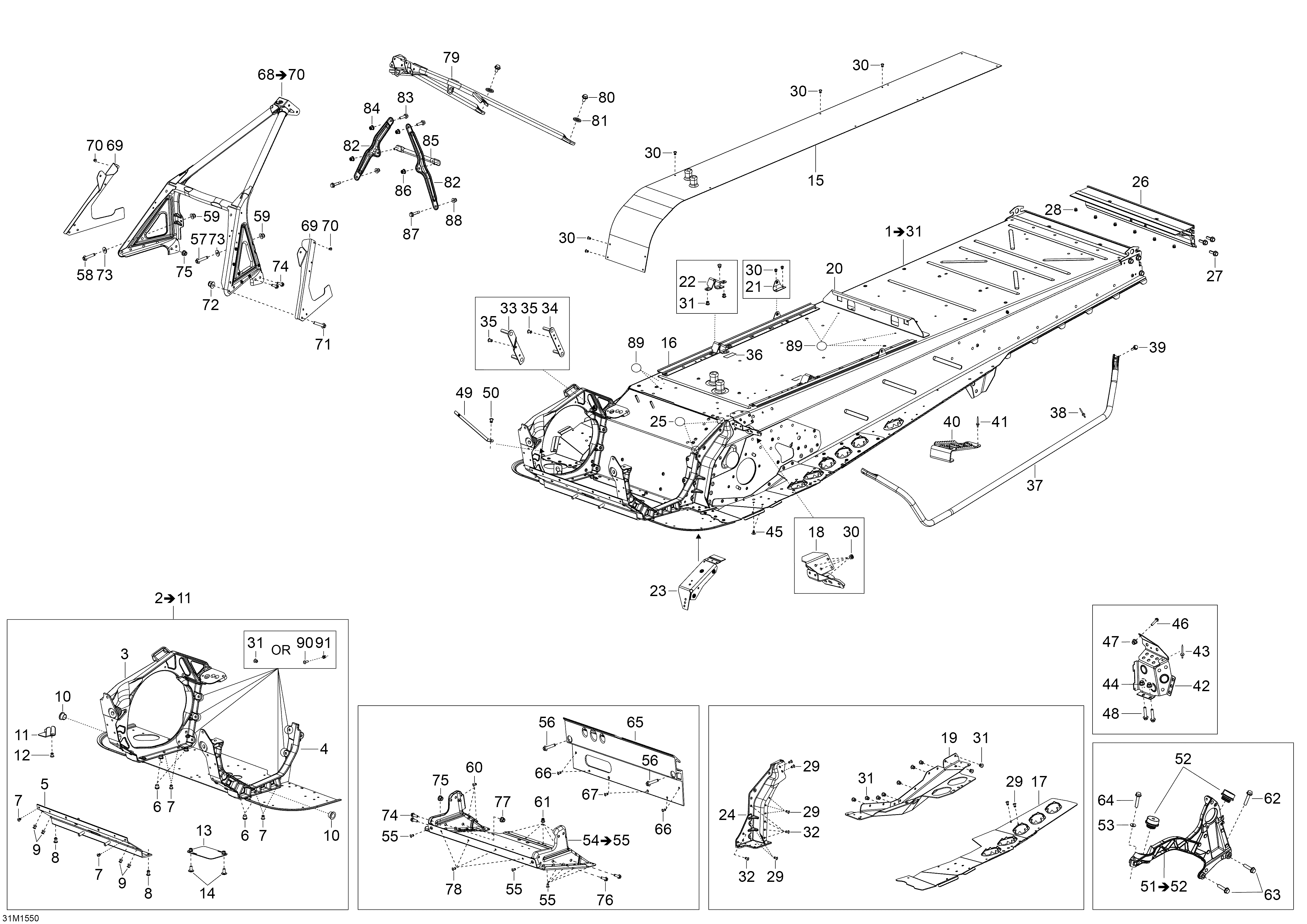

09- Frame _31M1550 для BRP Ski-Doo Skandic WT 600 ACE - 2015
-
№АртикулНазвание
-
1518328202 Frame. Includes 1 To 31Frame. Includes 1 To 31
-
2518328188 Module E. Includes 2 To 11Module E. Includes 2 To 11
-
3518326328 RH Side MemberRH Side Member
-
4518326330 LH Side MemberLH Side Member
-
5518326198 Front MemberFront Member
-
6605636002 Clinch Nut Hexsert M8Clinch Nut Hexsert M8
-
7390909100 Avex RivetAvex Rivet
-
8293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
9293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10505072690 Leg CushionLeg Cushion
-
11518327983 Muffler SupportMuffler Support
-
12293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
13518328317 Oil PlateOil Plate
-
14250000325 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
15509000867 Tunnel RadiatorTunnel Radiator
-
16518326107 Fastening railFastening rail
-
17518326895 Footrest LHFootrest LH
-
17518326896 Footrest RHFootrest RH
-
18605355235 Fastening BracketFastening Bracket
-
20518325986 Battery support plateBattery support plate
-
21518327457 Seat Box BracketSeat Box Bracket
-
22518326109 Support Tube Bracket LHSupport Tube Bracket LH
-
22518326110 Support Tube Bracket RHSupport Tube Bracket RH
-
23518326430 Clinch nut plateClinch nut plate
-
24518325524 Frame Corner LHFrame Corner LH
-
24518328024 Frame Corner RHFrame Corner RH
-
25518325560 Adhesive PatchAdhesive Patch
-
26518327194 Rear ProfileRear Profile
-
27207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
28293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
29390909100 Avex RivetAvex Rivet
-
30390909200 Avex RivetAvex Rivet
-
31293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
32293150183 RivetRivet
-
33518326123 Gearbox Front PlateGearbox Front Plate
-
34518326124 Gearbox Rear PlateGearbox Rear Plate
-
35390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
36518326357 Rubber CoverRubber Cover
-
37518326963 Footboard Support Tube, LHFootboard Support Tube, LH
-
37518326964 Footboard Support Tube, RHFootboard Support Tube, RH
-
38390909100 Avex RivetAvex Rivet
-
39207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
40520000492 FootrestFootrest
-
41390909100 Avex RivetAvex Rivet
-
42518326671 Toe Hook LHToe Hook LH
-
42518326672 Toe Hook RHToe Hook RH
-
43390909200 Avex RivetAvex Rivet
-
44605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
45414644300 DartDart
-
46207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
47233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
48250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
49514054828 Spring BracketSpring Bracket
-
50390909200 Avex RivetAvex Rivet
-
51518327535 Brace Ass'y. Includes 51 To 52Brace Ass'y. Includes 51 To 52
-
52512060295 Rubber MountRubber Mount
-
53234281474 Conical Spring Washer M8Conical Spring Washer M8
-
54518326213 S Module. Includes 54 To 55S Module. Includes 54 To 55
-
55390909200 Avex RivetAvex Rivet
-
56210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
57207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
58207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
59233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
60390909100 Avex RivetAvex Rivet
-
61390909200 Avex RivetAvex Rivet
-
62207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
63207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
64207584044 Hex. Flanged Screw M8 X 40, Scotch GripHex. Flanged Screw M8 X 40, Scotch Grip
-
65518326140 Engine SupportEngine Support
-
66390909100 Avex RivetAvex Rivet
-
67293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
68518326754 Front Member Ass'y. Model-Europe, Includes 68 To 70Front Member Ass'y. Model-Europe, Includes 68 To 70
-
68518327004 Front Member Assy. Model-North America, Includes 68 To 70Front Member Assy. Model-North America, Includes 68 To 70
-
69502007077 Bumper Fastener LHBumper Fastener LH
-
69502007078 Bumper Fastener RHBumper Fastener RH
-
70390909200 Avex RivetAvex Rivet
-
71207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
72233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
73224061201 Flat WasherFlat Washer
-
74207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
75233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
76207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
77233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
78390909200 Avex RivetAvex Rivet
-
79518326103 Upper Support Tube WeldedUpper Support Tube Welded
-
80207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
82518326848 Upper Column SupportUpper Column Support
-
83207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
84233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
85518326355 Center Column SupportCenter Column Support
-
86233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
87207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
88233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
89518325560 Adhesive PatchAdhesive Patch
-
90207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
91233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
