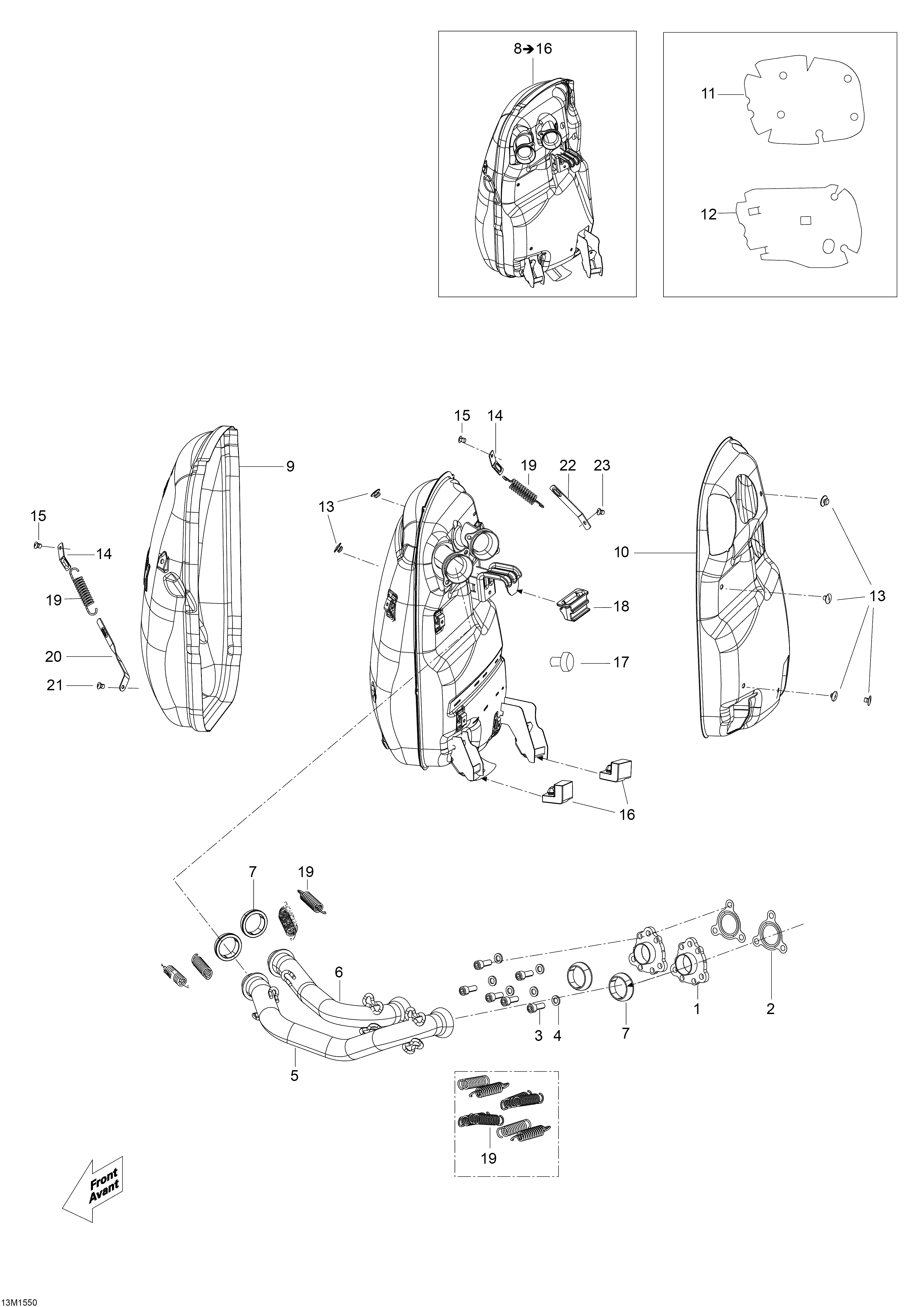

01- Exhaust System _13M1550 для BRP Ski-Doo Skandic WT 600 ACE - 2015
-
№АртикулНазвание
-
1514054673 Exhaust ManifoldExhaust Manifold
-
2514055112 SealSeal
-
3250000414 Socket Head Screw M8 X 22Socket Head Screw M8 X 22
-
4250200111 WasherWasher
-
5514054733 Welded TubeWelded Tube
-
6514054734 Welded TubeWelded Tube
-
7514054807 Exhaust GasketExhaust Gasket
-
8514055003 Muffler Ass'y. Includes 8 To 16Muffler Ass'y. Includes 8 To 16
-
9514054644 RH Heat ShieldRH Heat Shield
-
10514054645 LH Heat ShieldLH Heat Shield
-
11514054769 RH Insulating WoolRH Insulating Wool
-
12514054770 LH Insulating WoolLH Insulating Wool
-
13390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
14514054522 Spring BracketSpring Bracket
-
15390909200 Avex RivetAvex Rivet
-
16514054529 Lower StopperLower Stopper
-
17570044700 Rubber BumperRubber Bumper
-
18514054737 Upper StopperUpper Stopper
-
19415107100 SpringSpring
-
20514055317 Spring BracketSpring Bracket
-
21390909100 Avex RivetAvex Rivet
-
22514054616 Spring BracketSpring Bracket
-
23390909200 Avex RivetAvex Rivet
