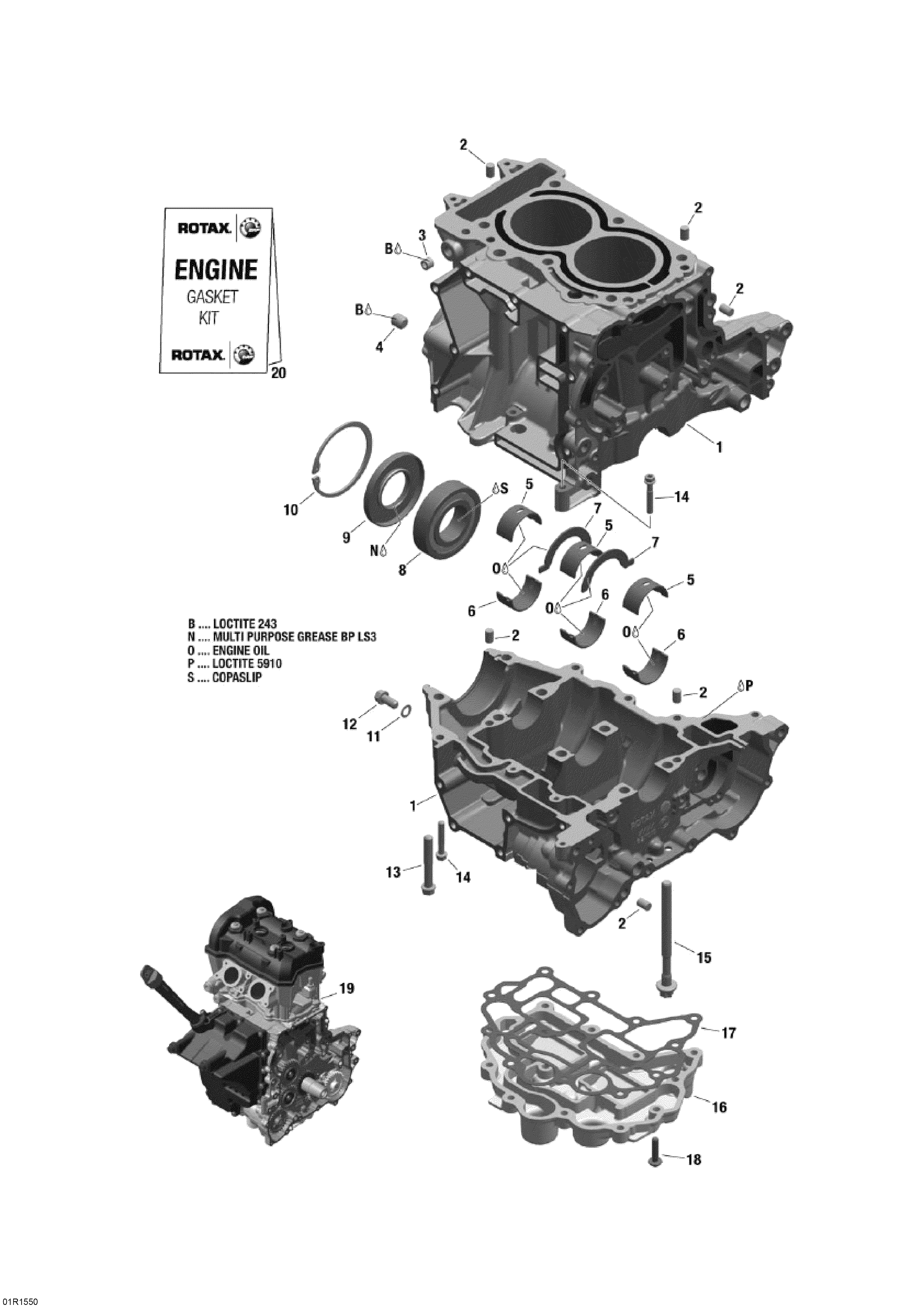

01- Crankcase _01R1550 для BRP Ski-Doo Skandic WT 600 ACE - 2015
-
№АртикулНазвание
-
1420892853 Crankcase Ass'y. Includes 1 To 6Crankcase Ass'y. Includes 1 To 6
-
2420632010 Center Pin 8 X 12Center Pin 8 X 12
-
3420641323 Plug Screw M10 X 1Plug Screw M10 X 1
-
4420840500 Threaded PinThreaded Pin
-
5420933180 CushionCushion
-
6420933185 CushionCushion
-
7420933140 Ring HalfRing Half
-
8420832232 Ball BearingBall Bearing
-
9420431402 Oil Seal. Included In Gasket KitOil Seal. Included In Gasket Kit
-
10420845790 Retaining RingRetaining Ring
-
11420950141 Sealing Ring. Included In Gasket KitSealing Ring. Included In Gasket Kit
-
12420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
13420641213 Flanged Torx Screw M8 X 55Flanged Torx Screw M8 X 55
-
14420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
15420940945 Flanged Torx Screw M9 X 113Flanged Torx Screw M9 X 113
-
16420911122 Oil Sump CoverOil Sump Cover
-
17420431630 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
18420841549 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
19420060201 Long Block 602. EuropeLong Block 602. Europe
-
19420060202 Long Block 600 ACE. North America, iTCLong Block 600 ACE. North America, iTC
-
20420686022 Gasket Set, EngineGasket Set, Engine
