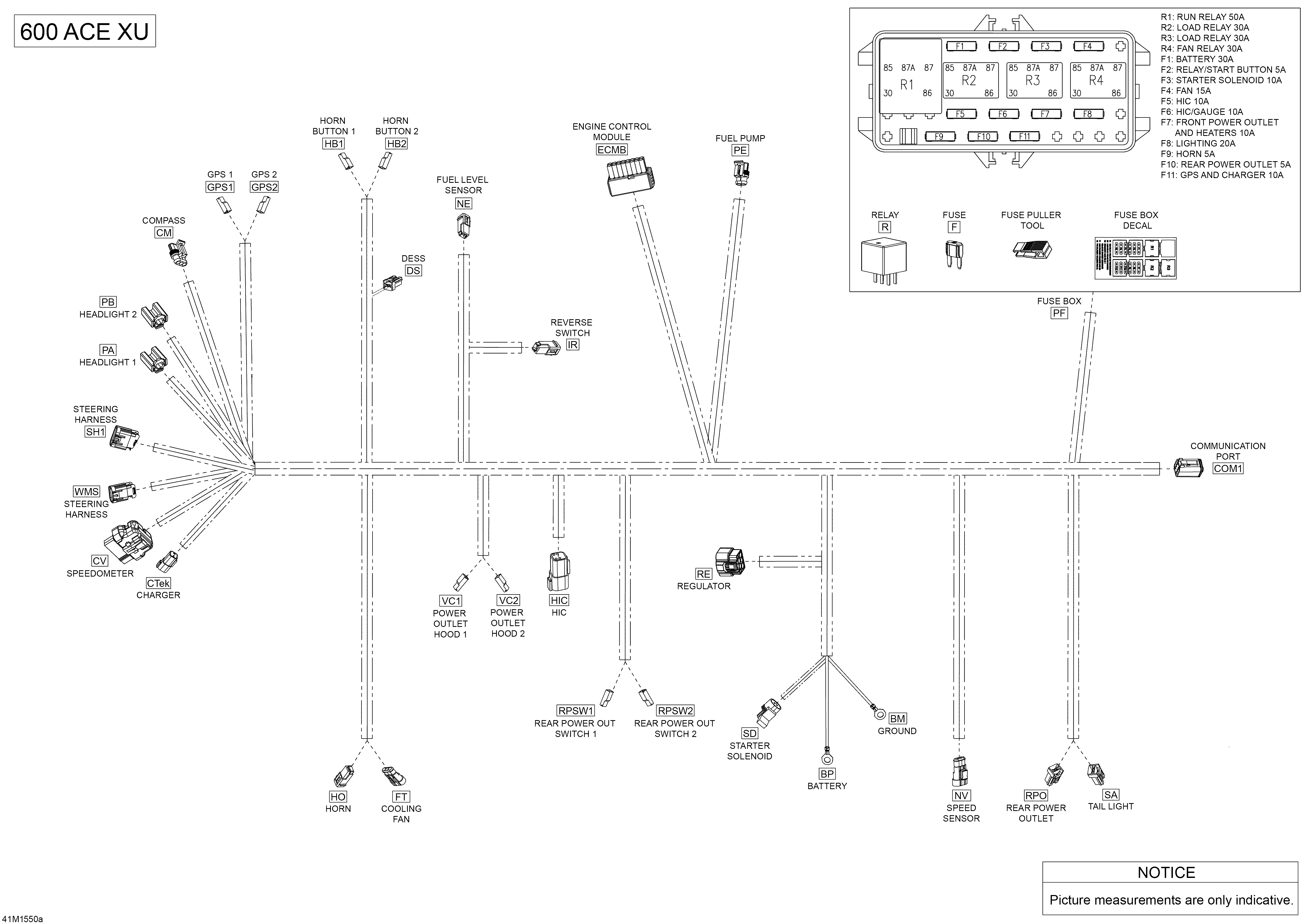

10- Electrical Harness _41M1550 для BRP Ski-Doo Skandic WT 600 ACE - 2015
-
№АртикулНазвание
-
1515177675 Main Harness. Includes 1 To WMSMain Harness. Includes 1 To WMS
-
2515175442 Tubing 6 mmTubing 6 mm
-
2409901700 Tubing 9 mmTubing 9 mm
-
2415079900 Tubing 10 mmTubing 10 mm
-
2409901800 Tubing 13 mmTubing 13 mm
-
2415080000 Tubing 16 mmTubing 16 mm
-
2409901600 Tubing 19 mmTubing 19 mm
-
2409902200 Tubing 25 mmTubing 25 mm
-
BM278000992 Open BarrelOpen Barrel
-
BP278000992 Open BarrelOpen Barrel
-
CM409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
CM278001014 Female TerminalFemale Terminal
-
CM515176621 Wire SealWire Seal
-
CM293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
COM1515175673 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
COM1515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
COM1278000632 Female TerminalFemale Terminal
-
COM1293000052 Sealing CapSealing Cap
-
CTEK278001674 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
CTEK278001672 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
CTEK515175568 Male TerminalMale Terminal
-
CV515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
CV515175802 Retainer BlockRetainer Block
-
CV515175803 Wire SealWire Seal
-
CV515175804 BlockBlock
-
CV515175805 LockLock
-
CV515175806 Female TerminalFemale Terminal
-
CV515175812 PlugPlug
-
CV710000399 Female HousingFemale Housing
-
DS515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
DS515175231 Female TerminalFemale Terminal
-
ECMB710001967 Molex Housing, 48 CircuitsMolex Housing, 48 Circuits
-
ECMB710001591 CoverCover
-
ECMB710001589 Female TerminalFemale Terminal
-
ECMB710001590 Female TerminalFemale Terminal
-
ECMB710001592 PlugPlug
-
ECMB710001593 PlugPlug
-
F710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
F710000743 Little Fuse, 7.5 AmperesLittle Fuse, 7.5 Amperes
-
F710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
F710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
F710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
F710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
FT409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FT278001014 Female TerminalFemale Terminal
-
FT515176621 Wire SealWire Seal
-
GPS1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
GPS1409010100 Female TerminalFemale Terminal
-
GPS2409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
GPS2409010100 Female TerminalFemale Terminal
-
HB1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
HB1409010100 Female TerminalFemale Terminal
-
HB2409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
HB2409010100 Female TerminalFemale Terminal
-
HIC278000739 Male Connector, 4 CircuitsMale Connector, 4 Circuits
-
HIC278000632 Female TerminalFemale Terminal
-
HIC278000738 Male Lock, 4 CircuitsMale Lock, 4 Circuits
-
HIC293000052 Sealing CapSealing Cap
-
HO515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
HO515175231 Female TerminalFemale Terminal
-
IR515176296 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
IR515175231 Female TerminalFemale Terminal
-
NE515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
NE515175232 Male TerminalMale Terminal
-
NV710000568 HousingHousing
-
NV515176164 Male TerminalMale Terminal
-
NV710000992 ClipClip
-
NV515176621 Wire SealWire Seal
-
PA515176908 Female HousingFemale Housing
-
PA515176909 TerminalTerminal
-
PB515176908 Female HousingFemale Housing
-
PB515176909 TerminalTerminal
-
PE710001132 HousingHousing
-
PE710001134 Female TerminalFemale Terminal
-
PE710001133 LockLock
-
PE710000643 SealSeal
-
PF710001026 Fuse CoverFuse Cover
-
PF415129856 Fuse Box Base Ass?yFuse Box Base Ass?y
-
PF710000836 Female TerminalFemale Terminal
-
PF710000837 Female TerminalFemale Terminal
-
PF278000999 Wire SealWire Seal
-
PF415128501 SealSeal
-
PF710000840 CapCap
-
PF710000781 Fuse PullerFuse Puller
-
PF278002172 FoamFoam
-
PF516006387 Decal, Fuse BoxDecal, Fuse Box
-
R515176775 Relay, 50 AMPRelay, 50 AMP
-
R515176774 Relay, 30 AMPRelay, 30 AMP
-
RE710000879 Housing, 3 CircuitsHousing, 3 Circuits
-
RE710000877 TerminalTerminal
-
RE710000882 CapCap
-
RE710000881 SealSeal
-
RPO515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
RPO515175232 Male TerminalMale Terminal
-
RPSW1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
RPSW1409010100 Female TerminalFemale Terminal
-
RPSW2409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
RPSW2409010100 Female TerminalFemale Terminal
-
SA515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
SA515175231 Female TerminalFemale Terminal
-
SD278001113 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
SD278001114 Female TerminalFemale Terminal
-
SH1710001929 Housing, PackardHousing, Packard
-
VC1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
VC1409010100 Female TerminalFemale Terminal
-
VC2409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
VC2409010100 Female TerminalFemale Terminal
-
WMS710001927 HousingHousing
