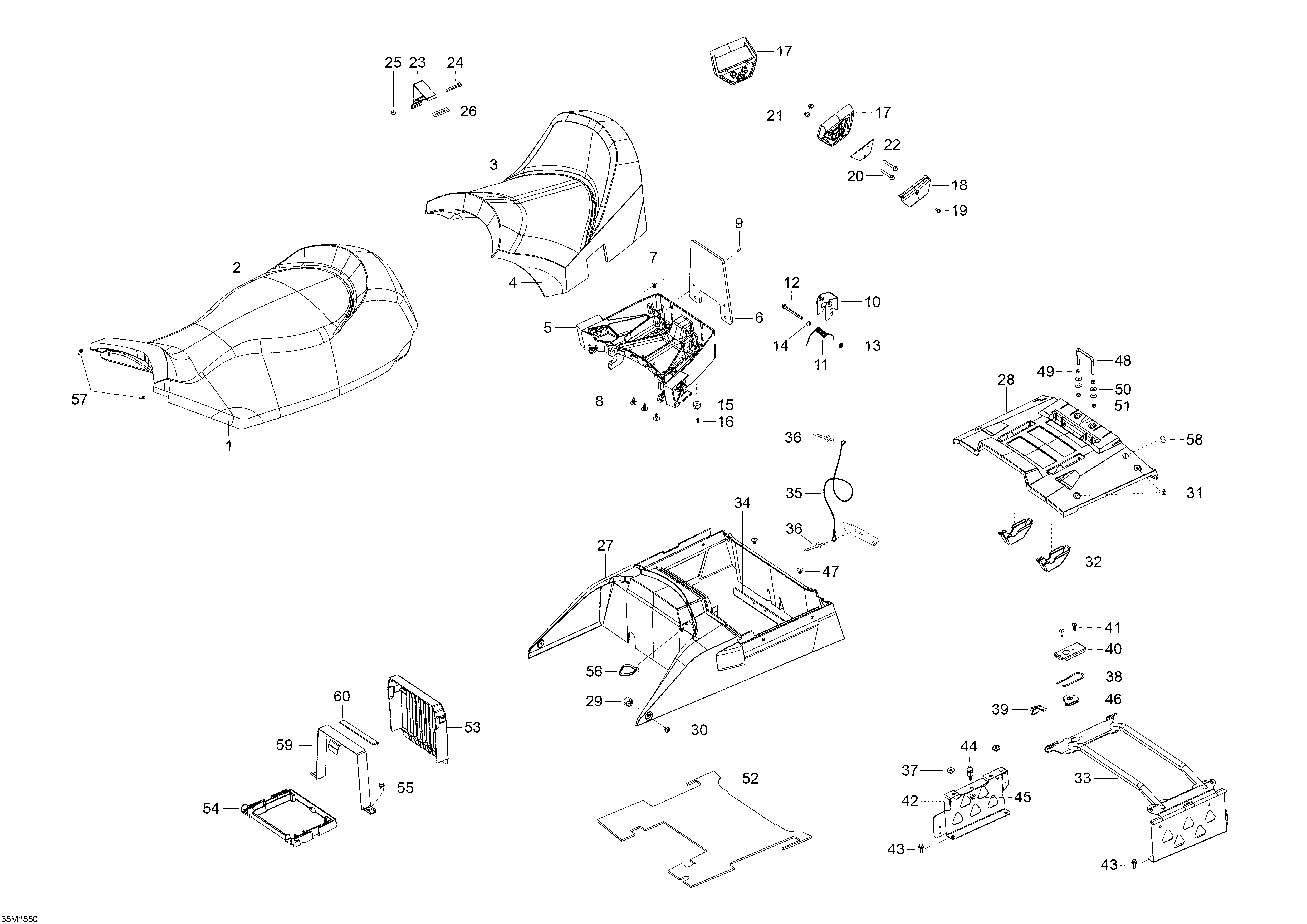

09- Seat _35M1550 для BRP Ski-Doo Skandic WT 600 ACE - 2015
-
№АртикулНазвание
-
1510005807 Front Seat FoamFront Seat Foam
-
2510005722 Cover, frontCover, front
-
3510005320 Rear Seat Cover XURear Seat Cover XU
-
4510005811 Rear Seat FoamRear Seat Foam
-
5510004816 Seat BaseSeat Base
-
6510005330 Backrest PlateBackrest Plate
-
7234062410 Flat Washer 6 mmFlat Washer 6 mm
-
8414644300 DartDart
-
9293150210 RivetRivet
-
10708000144 Latch, BlackLatch, Black
-
11708000369 SpringSpring
-
12207068044 Screw Hex. M6 X 80Screw Hex. M6 X 80
-
13732610072 Push NutPush Nut
-
14234061410 Flat Washer 6 mmFlat Washer 6 mm
-
15510006005 Stopper RubberStopper Rubber
-
16293150015 Pop Rivet 1/8''Pop Rivet 1/8''
-
17510005409 HandleHandle
-
18510005444 Handle CoverHandle Cover
-
19250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
20207686544 Hex. Flanged Screw, M8 X 65Hex. Flanged Screw, M8 X 65
-
21233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
22510005479 Support PlateSupport Plate
-
23510005139 Security LockSecurity Lock
-
24205064044 Socket Screw HD.DIN.912Socket Screw HD.DIN.912
-
25232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
26510005480 Screen PlateScreen Plate
-
27510004874 Storage Box XUStorage Box XU
-
28510005604 Cover Storage Box XU 12Cover Storage Box XU 12
-
29510005147 BushingBushing
-
30250000675 Torx Truss Screw M6 x 12Torx Truss Screw M6 x 12
-
31293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
32510004999 CoverCover
-
33510005714 Lock tubeLock tube
-
34510005156 Cable Support PlateCable Support Plate
-
35293750070 Seat Retainer CableSeat Retainer Cable
-
36390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
37605452114 PlugPlug
-
38269700017 Latch SpringLatch Spring
-
39510005072 PullerPuller
-
40510005698 Lock Pin CoverLock Pin Cover
-
41250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
42510005845 Locking PlateLocking Plate
-
43207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
44605452035 Lock PinLock Pin
-
45233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
46510005044 Lock Pin GuideLock Pin Guide
-
47293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
48510004876 Fastener PinFastener Pin
-
49250000135 Hex. Nut M6Hex. Nut M6
-
5020117 WasherWasher
-
51232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
52510005043 FoamFoam
-
53510005079 Battery CoverBattery Cover
-
54515176804 Battery SupportBattery Support
-
55207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
56605627000 Tie-RapTie-Rap
-
57250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
58572051500 CapCap
-
59510005250 Battery StrapBattery Strap
-
60605356094 Strap CoverStrap Cover
