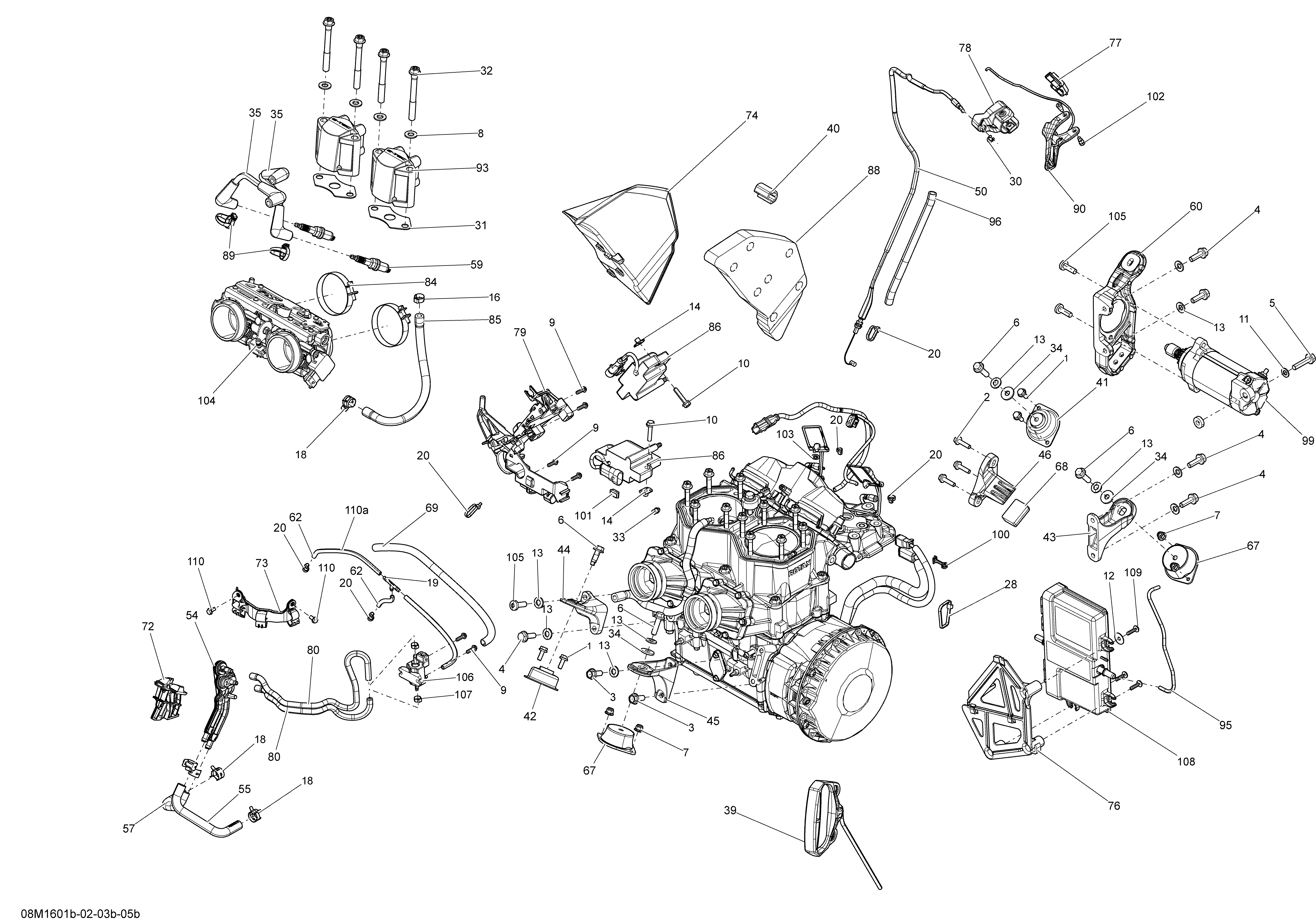

01- Engine для BRP Ski-Doo FREERIDE - 2016
-
№АртикулНазвание
-
1207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
2207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
3207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
4207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
5207583544 Hex Flanged Screw M8 X 35, Scotch GripHex Flanged Screw M8 X 35, Scotch Grip
-
6207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
6250000796 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8234001410 Flat Washer 10 mmFlat Washer 10 mm
-
9241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
10250000253 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
11250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
12250200040 Flat WasherFlat Washer
-
13250200146 Conical Spring Washer M8Conical Spring Washer M8
-
14293100003 Nut M6Nut M6
-
16293650046 Oetiker ClampOetiker Clamp
-
18293650214 Norma Spring ClampNorma Spring Clamp
-
19293710068 T-FittingT-Fitting
-
20293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
28293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
30414274500 CirclipCirclip
-
31420430930 GasketGasket
-
32420441187 Flanged Torx Screw M10 X 90Flanged Torx Screw M10 X 90
-
33420924724 Hose NippleHose Nipple
-
34503183200 Washer, YellowWasher, Yellow
-
35512060094 Ignition Cable, 177 mmIgnition Cable, 177 mm
-
39512060136 Starter GripStarter Grip
-
40512060313 ProtectorProtector
-
41512060387 Rubber MountRubber Mount
-
42512060448 Rubber MountRubber Mount
-
43512060469 Front Support, MAGFront Support, MAG
-
44512060478 Rear Support, PTORear Support, PTO
-
45512060559 Rear Support, MAGRear Support, MAG
-
46512060576 Stopper SupportStopper Support
-
50512060667 Throttle CableThrottle Cable
-
54512060692 ManifoldManifold
-
55512060694 RH Formed HoseRH Formed Hose
-
57512060695 LH Formed HoseLH Formed Hose
-
59415129484 Spark PlugSpark Plug
-
60512060714 Front Support, PTOFront Support, PTO
-
62270000374 Hose 4.3 mmHose 4.3 mm
-
62270000374 Hose 4.3 mmHose 4.3 mm
-
67512060729 Rubber MountRubber Mount
-
68512060627 StopperStopper
-
69409901700 Tubing 9 mmTubing 9 mm
-
72512060822 Manifold SupportManifold Support
-
73512060827 Hose SupportHose Support
-
74512060847 Noise ShieldNoise Shield
-
76512060858 Calibrated Module SupportCalibrated Module Support
-
77512060859 Upper HousingUpper Housing
-
78512060860 Lower HousingLower Housing
-
79512060888 SupportSupport
-
80415080200 Hose, PolyurethaneHose, Polyurethane
-
84512060943 Gemi ClampGemi Clamp
-
85512060944 Bleeder's Collector Outlet HoseBleeder's Collector Outlet Hose
-
86512060953 Ignition CoilIgnition Coil
-
88512060958 Inner Acoustic FoamInner Acoustic Foam
-
89512060993 ClampClamp
-
90512061051 Handle Ass'yHandle Ass'y
-
93512061054 Fuel InjectorFuel Injector
-
95415080100 LineLine
-
96409901700 Tubing 9 mmTubing 9 mm
-
99515177389 StarterStarter
-
100515177770 LockerLocker
-
101710000992 ClipClip
-
102732601143 Flanged ScrewFlanged Screw
-
103732610072 Push NutPush Nut
-
104420889202 Throttle BodyThrottle Body
-
105250000752 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
106512061078 Solenoid ValveSolenoid Valve
-
107293650234 Crimp ClampCrimp Clamp
-
108512060756 Calibrated ModuleCalibrated Module
-
109250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
110210251150 Hex. Flanged Screw M5 X 11Hex. Flanged Screw M5 X 11
-
110a512060930 SpringSpring
