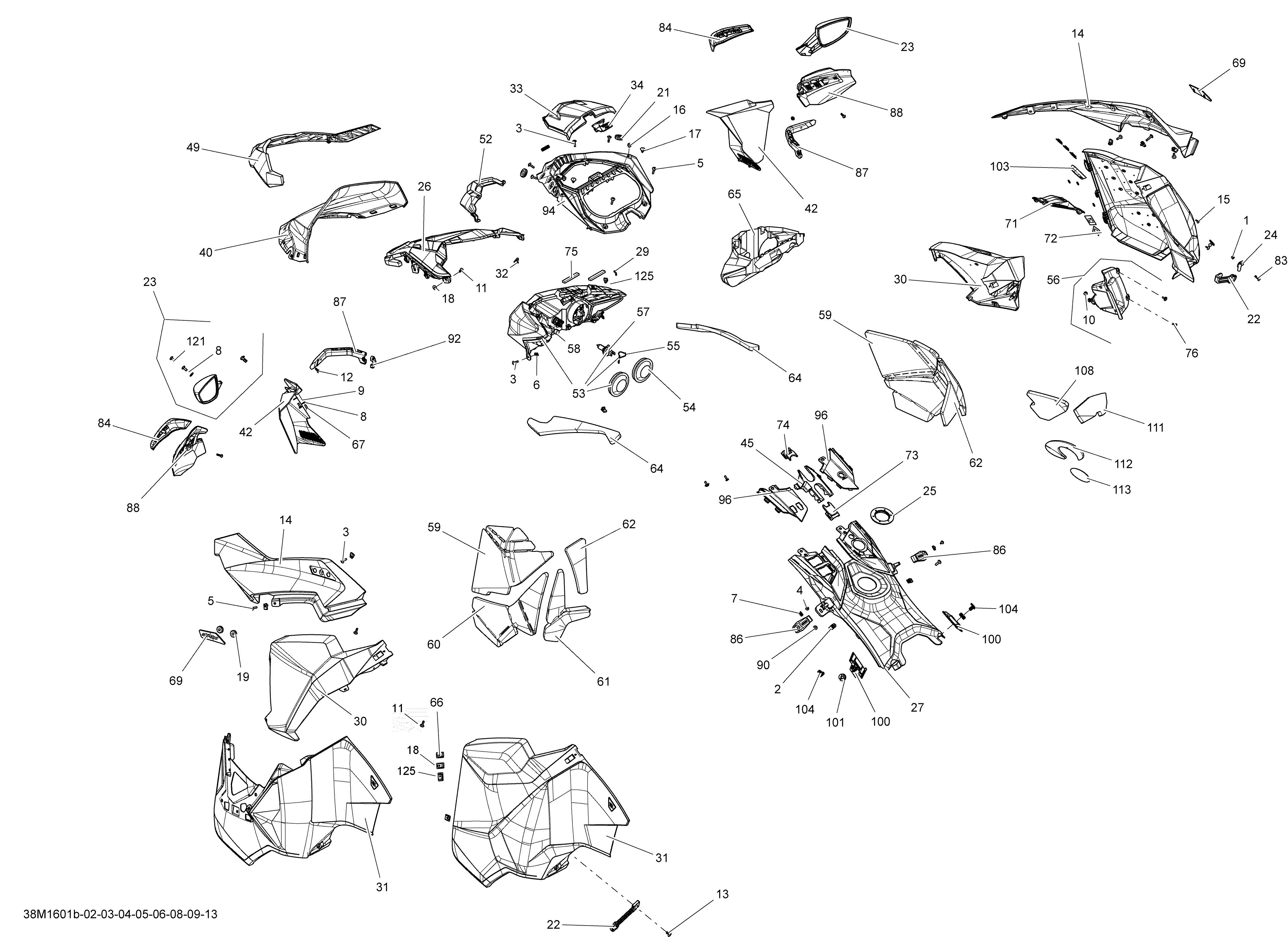

09- Hood для BRP Ski-Doo FREERIDE - 2016
-
№АртикулНазвание
-
1233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
2250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
3250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
4250000565 Hexalob Screw M4 X 10Hexalob Screw M4 X 10
-
5250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
6250100035 Jack Nut M5Jack Nut M5
-
7250100156 Weld Nut M4Weld Nut M4
-
8250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
9250200025 Washer M5Washer M5
-
10275500241 Black CapBlack Cap
-
11293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
13293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
14517305633 Red LH HoodRed LH Hood
-
14517305634 Red RH HoodRed RH Hood
-
16293830005 Rubber BumperRubber Bumper
-
17414644300 DartDart
-
18517124300 WasherWasher
-
19517302841 GrommetGrommet
-
21517303756 GrommetGrommet
-
22517303612 RH Panel Latch. E-TEC EngineRH Panel Latch. E-TEC Engine
-
22517303808 LH Panel LatchLH Panel Latch
-
23517305100 RH Mirror Ass'yRH Mirror Ass'y
-
23517305101 LH Mirror Ass'yLH Mirror Ass'y
-
24517304221 Latch Support. E-TEC EngineLatch Support. E-TEC Engine
-
25517304518 Console NutConsole Nut
-
26517305369 Red Center HoodRed Center Hood
-
27517305786 Rear ConsoleRear Console
-
29250000725 Screw M4 X 16Screw M4 X 16
-
15517305679 Red RH Panel. Panel With Handle OpeningRed RH Panel. Panel With Handle Opening
-
15517305681 Red RH Panel. Panel Without Handle OpeningRed RH Panel. Panel Without Handle Opening
-
30517305689 Red LH PanelRed LH Panel
-
31517304805 Deep Black LH Flashing PanelDeep Black LH Flashing Panel
-
32250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
33517304912 Upper Storage Access CoverUpper Storage Access Cover
-
34517304917 Cover LatchCover Latch
-
40517304931 Windshield 135mmWindshield 135mm
-
42517305737 Deflector-Air RHDeflector-Air RH
-
42517305738 Deflector-Air LHDeflector-Air LH
-
45517304970 Console SupportConsole Support
-
49517305948 SupportSupport
-
52517305807 CapCap
-
53517305762 HeadlampHeadlamp
-
54219400070 CapCap
-
55219800282 Holder BracketHolder Bracket
-
56517305060 Deep Black RH ConsoleDeep Black RH Console
-
57515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
58219800281 SpringSpring
-
59517305082 RH Upper Panel FoamRH Upper Panel Foam
-
59517305086 LH Upper Panel FoamLH Upper Panel Foam
-
60517305087 LH Center Panel FoamLH Center Panel Foam
-
61517305088 LH Lower Panel FoamLH Lower Panel Foam
-
62517305085 RH Rear Panel FoamRH Rear Panel Foam
-
62517305089 LH Rear Panel FoamLH Rear Panel Foam
-
64517305090 RH Rear Hood FoamRH Rear Hood Foam
-
64517305091 LH Rear Hood FoamLH Rear Hood Foam
-
65517305095 TrunkTrunk
-
66517305109 Rivet PlateRivet Plate
-
67250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
69517305137 RH Hood Filler PlateRH Hood Filler Plate
-
69517305138 LH Hood Filler PlateLH Hood Filler Plate
-
71517305140 RH Panel Vent GridRH Panel Vent Grid
-
72517305451 Heat ShieldHeat Shield
-
73517305148 Support Console CapSupport Console Cap
-
74517305147 Deep Black Support Console CapDeep Black Support Console Cap
-
75517305157 Seal JointSeal Joint
-
76250000725 Screw M4 X 16Screw M4 X 16
-
83250000792 Torx Screw M5 X 20. E-TEC EngineTorx Screw M5 X 20. E-TEC Engine
-
84517305588 Yellow RH CapYellow RH Cap
-
84517305589 Yellow LH CapYellow LH Cap
-
86517305279 Panel LatchPanel Latch
-
87517305290 LH ArmLH Arm
-
87517305293 RH ArmRH Arm
-
88517305291 LH DeflectorLH Deflector
-
88517305294 RH DeflectorRH Deflector
-
90250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
92517305296 BrideBride
-
94517305512 Deep Black Indicator SupportDeep Black Indicator Support
-
96517305128 LH Front ConsoleLH Front Console
-
96517305549 RH Front ConsoleRH Front Console
-
100517305722 LH Panel Clip Ass'yLH Panel Clip Ass'y
-
100517305724 RH Panel Clip Ass'yRH Panel Clip Ass'y
-
101517305723 RingRing
-
103517305731 BumperBumper
-
104517305734 PinPin
-
108517305791 FoamFoam
-
108517305799 FoanFoan
-
111517305794 FoamFoam
-
111517305800 FoamFoam
-
112517305795 FoamFoam
-
113517305796 Rubber SheetRubber Sheet
-
121250000721 Torx ScrewTorx Screw
-
125250100158 Push NutPush Nut
-
125732610072 Push Nut. For WindshieldPush Nut. For Windshield
