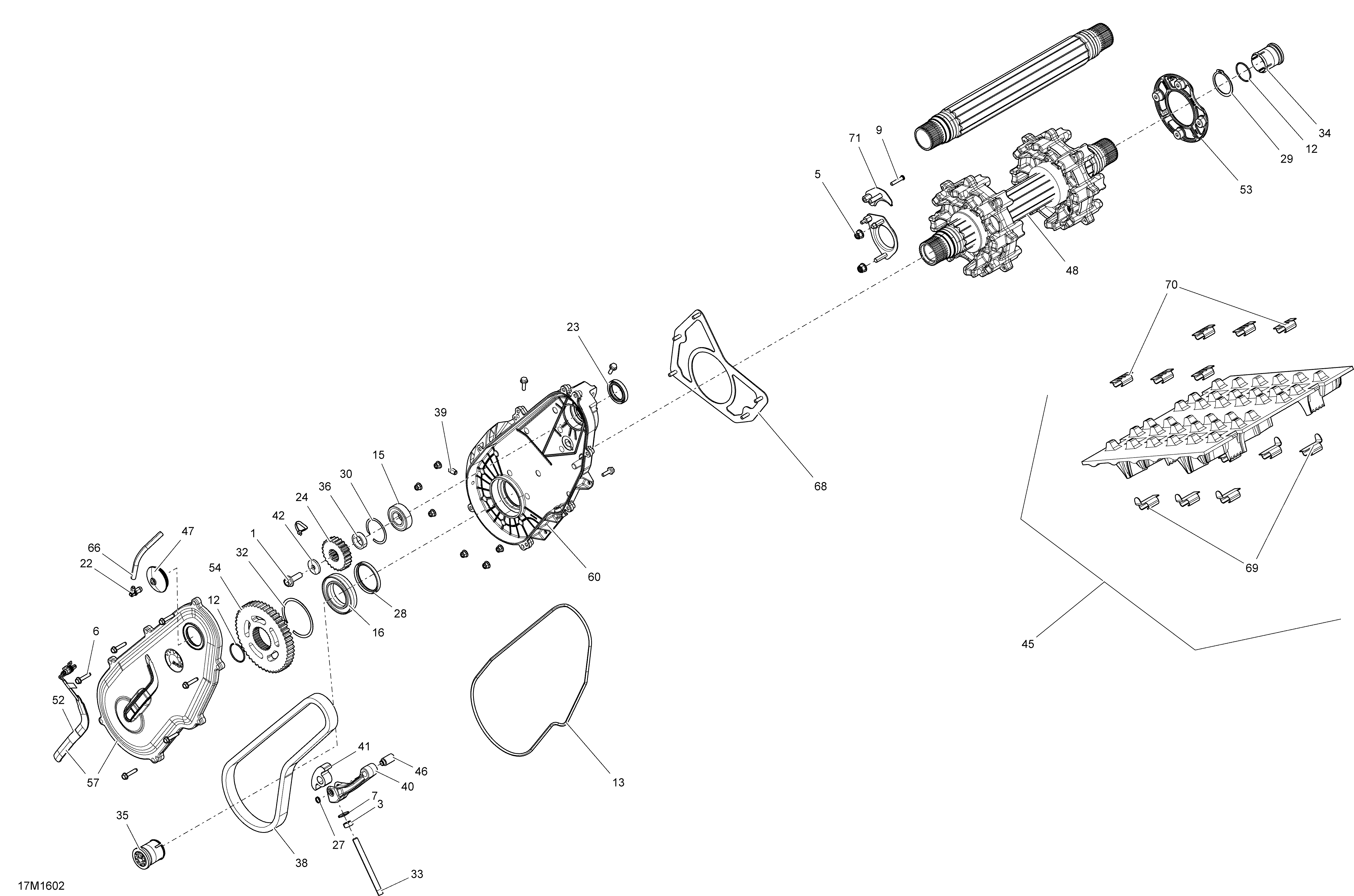

05- Drive System для BRP Ski-Doo FREERIDE - 2016
-
№АртикулНазвание
-
1207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
3232006414 Hex. Nut M10Hex. Nut M10
-
5233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6210263050 Screw-Forming HEX.HD.FL.BZNScrew-Forming HEX.HD.FL.BZN
-
7250200100 Bonded WasherBonded Washer
-
9250300031 Clinch Stud M6 X 30Clinch Stud M6 X 30
-
12293300122 O-RingO-Ring
-
13293300130 O-RingO-Ring
-
15293350055 Ball BearingBall Bearing
-
16293350059 Ball BearingBall Bearing
-
22414580700 Male ConnectorMale Connector
-
23415049300 Oil SealOil Seal
-
24504096200 Sprocket, 21 Teeth. Model N° VAGA, VAGC, VBGA, VBGB, VBGD, VCGC, VCGDSprocket, 21 Teeth. Model N° VAGA, VAGC, VBGA, VBGB, VBGD, VCGC, VCGD
-
24504091000 Sprocket, 23 Teeth. Model N° VAGB, VBGCSprocket, 23 Teeth. Model N° VAGB, VBGC
-
24504152030 Sprocket, 19 Teeth. Model N° VCGA, VCGBSprocket, 19 Teeth. Model N° VCGA, VCGB
-
27504152282 CirclipCirclip
-
28504152571 SealSeal
-
29504152572 CirclipCirclip
-
30504152576 CirclipCirclip
-
31504152581 Sprocket, 49 TeethSprocket, 49 Teeth
-
32504152582 CirclipCirclip
-
33504152602 Adjustment ScrewAdjustment Screw
-
34504152619 Magnetic CapMagnetic Cap
-
36504152628 ShimShim
-
38504152629 Drive Chain, 104 Links. Model N° VAGB, VCGA, VCGBDrive Chain, 104 Links. Model N° VAGB, VCGA, VCGB
-
38504152579 Drive Chain, 102 Links. Model N° VAGA, VAGCDrive Chain, 102 Links. Model N° VAGA, VAGC
-
38504152630 Drive Chain, 106 Links. Model N° VBGA, VBGB, VBGD, VCGC, VCGDDrive Chain, 106 Links. Model N° VBGA, VBGB, VBGD, VCGC, VCGD
-
38504152631 Drive Chain, 108 Links. Model N° VBGCDrive Chain, 108 Links. Model N° VBGC
-
39504152854 Magnetic PlugMagnetic Plug
-
40504152685 Chain TensionerChain Tensioner
-
41504152739 Slider ChainSlider Chain
-
42504152784 Spring Washer M10Spring Washer M10
-
45504153198 Track Ass'y 16'' X 146'' X 2.50''. Model N° VBGA, VBGB, VBGC, VBGD,Track Ass'y 16'' X 146'' X 2.50''. Model N° VBGA, VBGB, VBGC, VBGD,
-
45504153199 Track Ass'y 16'' X 154'' X 2.50''. Model N° VCGA, VCGB, VCGC, VCGDTrack Ass'y 16'' X 154'' X 2.50''. Model N° VCGA, VCGB, VCGC, VCGD
-
45504153293 Track Ass'y 16'' X 137'' X 2.2PSH''. Model N° VAGA, VAGCTrack Ass'y 16'' X 137'' X 2.2PSH''. Model N° VAGA, VAGC
-
45504153294 Track Ass'y 16'' X 137'' X 1.7''. Model N° VAGBTrack Ass'y 16'' X 137'' X 1.7''. Model N° VAGB
-
46504152841 Tensionner AxleTensionner Axle
-
47504152860 CapCap
-
48504153085 Drive Axle Ass'yDrive Axle Ass'y
-
52504152896 SensorSensor
-
53504152949 Housing BearingHousing Bearing
-
54504152593 Sprocket, 45 Teeth. Model N° VAGA, VAGB, VAGCSprocket, 45 Teeth. Model N° VAGA, VAGB, VAGC
-
54504152971 Sprocket, 51 Teeth. Model N° VBGCSprocket, 51 Teeth. Model N° VBGC
-
54504152581 Sprocket, 49 Teeth. Model N° VBGA, VBGB, VCGA, VCGB, VBGD, VCGC, VCGDSprocket, 49 Teeth. Model N° VBGA, VBGB, VCGA, VCGB, VBGD, VCGC, VCGD
-
57504153410 COVER ASS'YCOVER ASS'Y
-
60504153405 CHAIN CASECHAIN CASE
-
66415080200 Hose, PolyurethaneHose, Polyurethane
-
68518325816 PlatePlate
-
69415129528 Track GuideTrack Guide
-
70415129529 CleatCleat
-
71504153418 BEARING HOUSINGBEARING HOUSING
