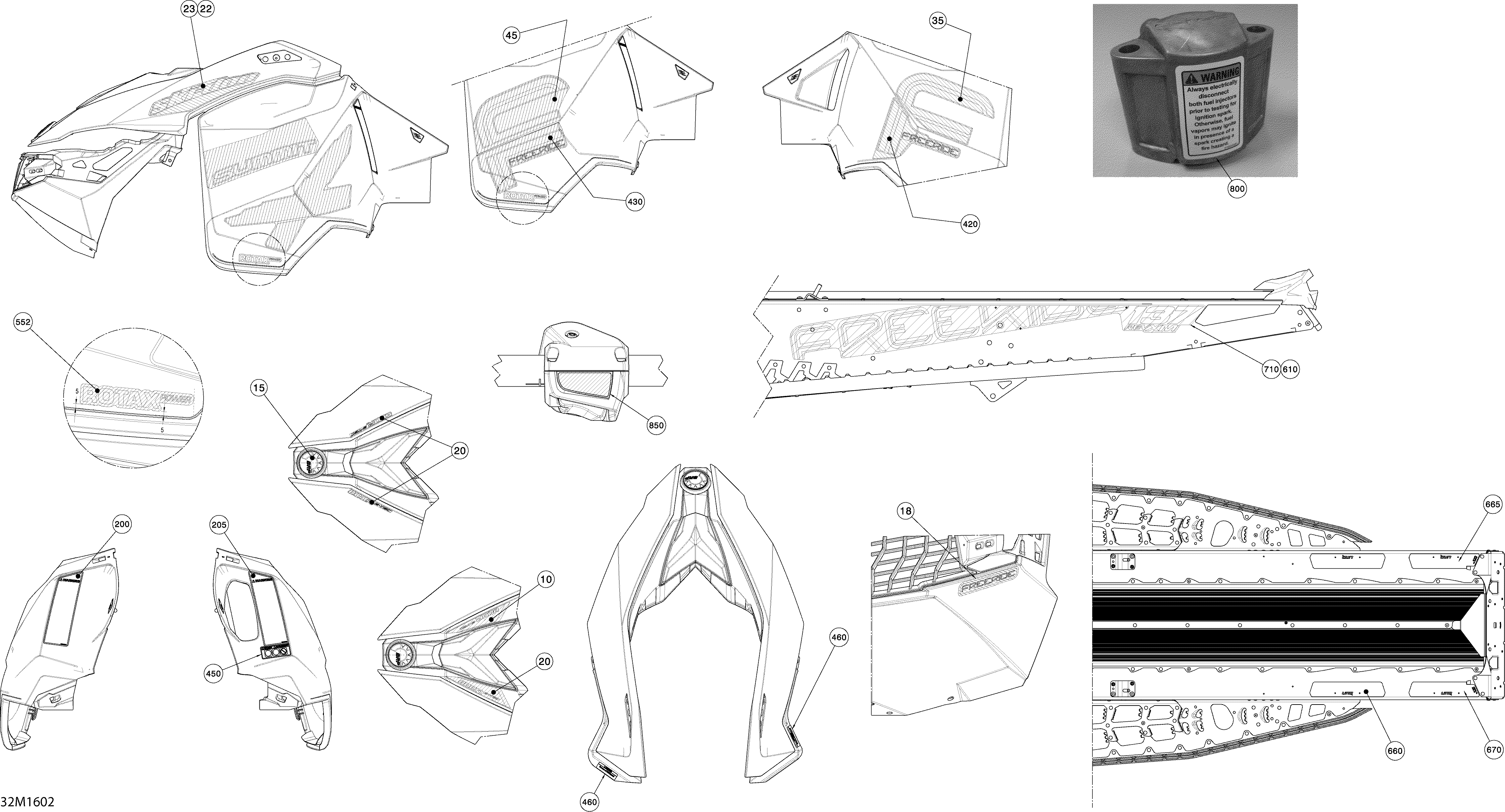

09- Decals для BRP Ski-Doo FREERIDE - 2016
-
№АртикулНазвание
-
10516007479 Hood DecalHood Decal
-
15516006888 BRP Logo, 68 mmBRP Logo, 68 mm
-
18516007431 Hood DecalHood Decal
-
20516007478 Hood DecalHood Decal
-
22516007333 RH Hood DecalRH Hood Decal
-
23516007332 LH Hood DecalLH Hood Decal
-
35516007335 RH Lateral DecalRH Lateral Decal
-
45516007334 LH Lateral DecalLH Lateral Decal
-
200516005055 Warning Decal, SecurityWarning Decal, Security
-
205516005056 Warning Decal, SecurityWarning Decal, Security
-
420516007337 RH Lower Lateral Freeride DecalRH Lower Lateral Freeride Decal
-
430516007336 LH Lower Lateral Freeride DecalLH Lower Lateral Freeride Decal
-
450516005226 Warning Decal, PictogramWarning Decal, Pictogram
-
460516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
552516007462 Decal, RotaxDecal, Rotax
-
610516007343 RH Decal, 137''RH Decal, 137''
-
610516007345 RH Decal, 146''RH Decal, 146''
-
610516007347 RH Decal, 154''RH Decal, 154''
-
660516006860 Rear Top Frame DecalRear Top Frame Decal
-
665516006859 RH Top Frame Decal, XS-XMRH Top Frame Decal, XS-XM
-
670516006858 LH Top Frame Decal, XS-XMLH Top Frame Decal, XS-XM
-
710516007342 LH Decal, 137''LH Decal, 137''
-
710516007344 LH Decal, 146''LH Decal, 146''
-
710516007346 LH Decal, 154''LH Decal, 154''
-
800516005583 Warning Decal, InjectorsWarning Decal, Injectors
-
850516007492 Decal CommodoDecal Commodo
