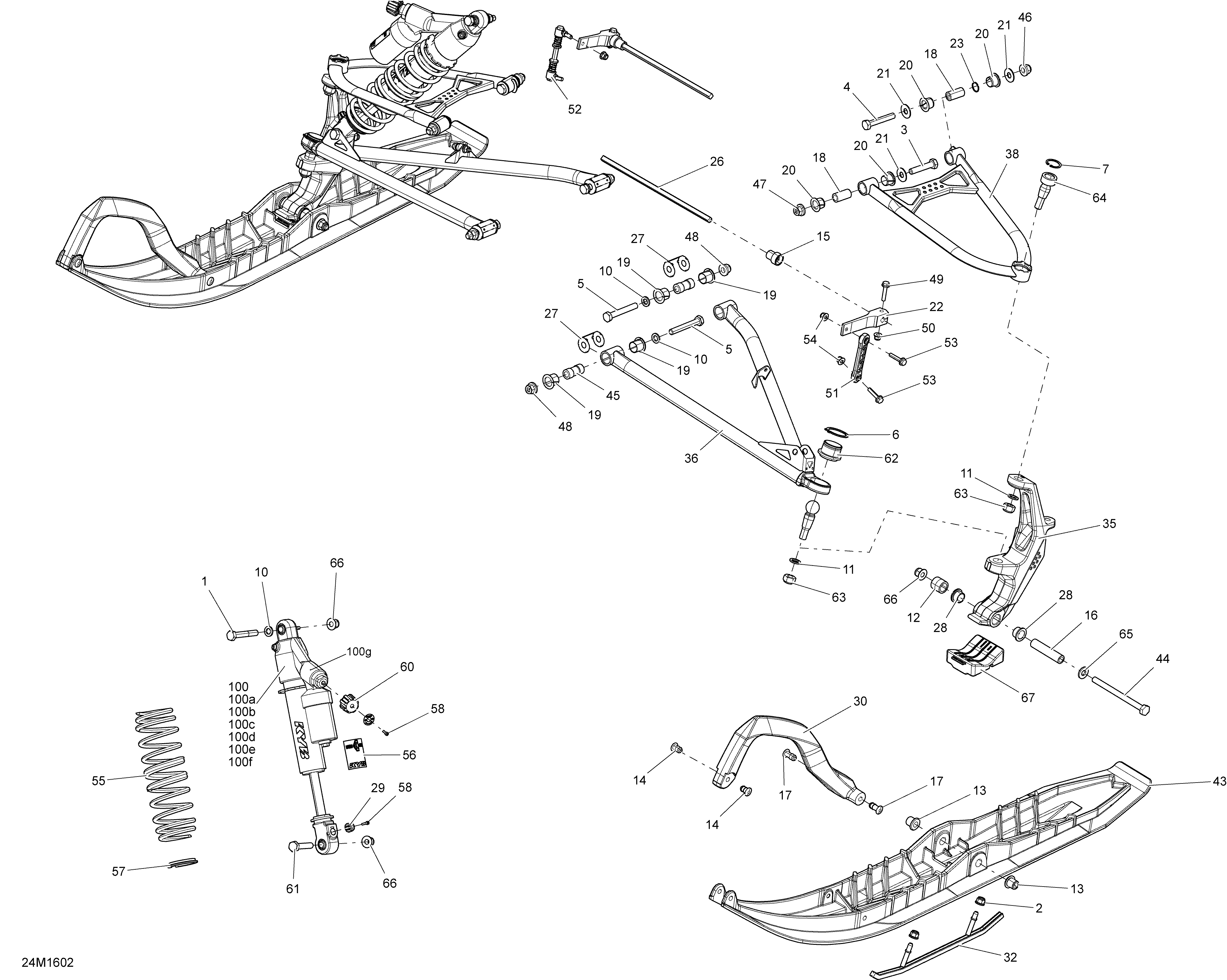

07- Front Suspension And Ski для BRP Ski-Doo FREERIDE - 2016
-
№АртикулНазвание
-
1207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
2233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
3250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
4250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
5250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
5250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
6293370035 CirclipCirclip
-
7293370070 CirclipCirclip
-
10503189564 WasherWasher
-
10503189564 WasherWasher
-
11503192491 WasherWasher
-
12503193651 SpacerSpacer
-
13505071781 CushionCushion
-
14505071812 RetainerRetainer
-
15505072786 BushingBushing
-
16506133300 SpacerSpacer
-
17505072133 RetainerRetainer
-
18505072143 BushingBushing
-
19505072208 BushingBushing
-
20505072250 BushingBushing
-
21505072392 WasherWasher
-
22505073176 Stabilisator LeverStabilisator Lever
-
23505072448 O-RingO-Ring
-
26505073609 StabilisatorStabilisator
-
27505072634 Wear PlateWear Plate
-
28505072690 Leg CushionLeg Cushion
-
29505072753 Adjustment KnobAdjustment Knob
-
30505073388 Red HandleRed Handle
-
32860201044 Carbide Runner KitCarbide Runner Kit
-
35505073882 LH Ski LegLH Ski Leg
-
35505073883 RH Ski LegRH Ski Leg
-
36505073583 Lower LH ArmLower LH Arm
-
36505073584 Lower RH ArmLower RH Arm
-
38505073588 Uper LH ArmUper LH Arm
-
38505073589 Uper RH ArmUper RH Arm
-
43505073354 Green DS Ski 2Green DS Ski 2
-
44250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
45505072214 BushingBushing
-
46250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
47250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
47250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
48250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
49207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
50233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
51505073172 Double Ball Joint LinkDouble Ball Joint Link
-
52860200811 Double Ball Joint LinkDouble Ball Joint Link
-
53207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
54233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
55505072760 Deep Black SpringDeep Black Spring
-
56516005534 Shock Adjustment DecalShock Adjustment Decal
-
57503194270 Spring StopperSpring Stopper
-
58250000644 Allen Screw M3 X 10Allen Screw M3 X 10
-
60503193033 Shock Adjuster KnobShock Adjuster Knob
-
61207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
62505073636 Ball JointBall Joint
-
63232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
64505072913 Upper Ball JointUpper Ball Joint
-
65503192496 WasherWasher
-
66233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
67505071779 Ski StopperSki Stopper
-
100505073123 LH Front ShockLH Front Shock
-
100505073124 RH Front ShockRH Front Shock
-
100a415093804 O-RingO-Ring
-
100b505070400 O-RingO-Ring
-
100c415093806 Piston RingPiston Ring
-
100d415093807 O-RingO-Ring
-
100e505070398 Air ValveAir Valve
-
100f505070399 ScrewScrew
-
100g415130165 Base ValveBase Valve
