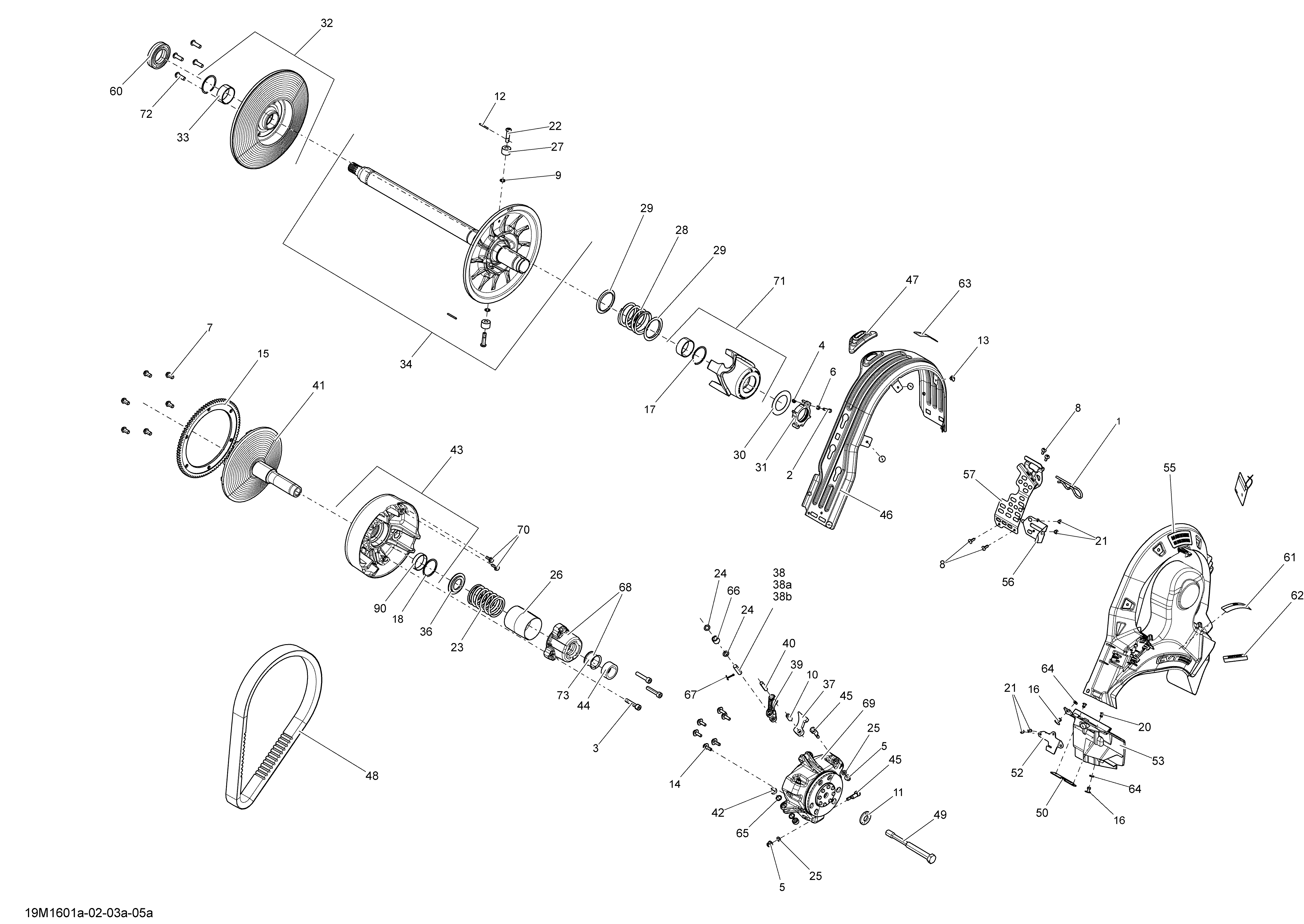

05- Pulley System для BRP Ski-Doo FREERIDE - 2016
-
№АртикулНазвание
-
1114045200 Hair PinHair Pin
-
2205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
3205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
4232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6234051410 Flat Washer M5Flat Washer M5
-
7250000533 Hex. Flange Screw M8 X 16Hex. Flange Screw M8 X 16
-
8250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
9250200009 Lock Washer 8 mmLock Washer 8 mm
-
10250400050 Spring Pin M10 X 22Spring Pin M10 X 22
-
11250200144 Conical Spring Washer M14Conical Spring Washer M14
-
12250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
13293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
14250000418 Flanged Hex. Screw M6 X 18, Scotch GripFlanged Hex. Screw M6 X 18, Scotch Grip
-
15417223739 Ring GearRing Gear
-
16293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
17293370049 CirclipCirclip
-
18293370071 CirclipCirclip
-
20390909100 Avex RivetAvex Rivet
-
21390909200 Avex RivetAvex Rivet
-
22417127294 Pivot StudPivot Stud
-
23415034900 Spring, Violet/blueSpring, Violet/blue
-
23414949500 Spring, Violet/pinkSpring, Violet/pink
-
23414689500 Spring, Blue/yellowSpring, Blue/yellow
-
24417004302 Stopper WasherStopper Washer
-
25417005600 WasherWasher
-
26417009205 GuardGuard
-
27417127016 RollerRoller
-
28417127137 Green SpringGreen Spring
-
28417127118 Blue SpringBlue Spring
-
28417127039 Black SpringBlack Spring
-
29417127116 Swivel AbutmentSwivel Abutment
-
30417127155 WasherWasher
-
31415129604 Calibration Ass'yCalibration Ass'y
-
32417127317 Sliding Flange Ass'ySliding Flange Ass'y
-
33417127318 BushingBushing
-
34417127387 Fix Flange Ass'y. Model N°: VAGBFix Flange Ass'y. Model N°: VAGB
-
34417127389 Fix Flange Ass'y. Except Model N°:VAGBFix Flange Ass'y. Except Model N°:VAGB
-
36417222312 Spring SeatSpring Seat
-
37417222508 Ramp 413. 137''Ramp 413. 137''
-
37417223098 Ramp 441. 154'' Model N°:VCGA,VCGBRamp 441. 154'' Model N°:VCGA,VCGB
-
37417223098 Ramp 441. 146'' Model N°:VBGA, VBGBRamp 441. 146'' Model N°:VBGA, VBGB
-
37417222508 Ramp 413. 154'' Model N°:VCGC, VCGDRamp 413. 154'' Model N°:VCGC, VCGD
-
37417222508 Ramp 413. 146'' Model N°:VBGC, VBGDRamp 413. 146'' Model N°:VBGC, VBGD
-
38417222594 Pin. Includes 38 To 38bPin. Includes 38 To 38b
-
38a417222595 Threaded Pin, M6Threaded Pin, M6
-
38b250000410 Socket Set Screw M6 X 16Socket Set Screw M6 X 16
-
39417222671 LeverLever
-
40417223164 Lever AxleLever Axle
-
41417223232 Fixed Flange Ass'yFixed Flange Ass'y
-
42417223271 Slider ShoeSlider Shoe
-
43417223444 Sliding Flange Ass'ySliding Flange Ass'y
-
44417223471 BushingBushing
-
45417223501 Calibration ScrewCalibration Screw
-
46417300357 Belt GuardBelt Guard
-
47417300381 GuideGuide
-
48417300391 BeltBelt
-
49417300409 TRA 7 Bolt (M14 X 153.5 mm)TRA 7 Bolt (M14 X 153.5 mm)
-
50417300421 Reinforcement PlateReinforcement Plate
-
52417300423 Front BracketFront Bracket
-
53417300430 Front SupportFront Support
-
55417300440 CVT Air Duct PulleyCVT Air Duct Pulley
-
56417300445 StopperStopper
-
57417300448 Belt Guard BracketBelt Guard Bracket
-
60504152574 Ball BearingBall Bearing
-
61516005503 Decal, EnglishDecal, English
-
62516005507 RPM Sticker, EnglishRPM Sticker, English
-
63516005509 Safety Belt Guard DecalSafety Belt Guard Decal
-
64517225900 Flat WasherFlat Washer
-
65732401030 O-RingO-Ring
-
66417222947 RollerRoller
-
67250400060 Cotter PinCotter Pin
-
68417222759 Spring Cover Ass'ySpring Cover Ass'y
-
69417223666 Governor Cup Ass'yGovernor Cup Ass'y
-
70250000416 Serrated Hex. Flange Bolt M6Serrated Hex. Flange Bolt M6
-
71417127325 Cam Ass'y. Model N°: VAGBCam Ass'y. Model N°: VAGB
-
71417127386 Cam Ass'y. Except Model N°:VAGBCam Ass'y. Except Model N°:VAGB
-
72250000707 Hex. Button Head Screw M8 X 25Hex. Button Head Screw M8 X 25
-
73417009204 BushingBushing
-
90417223086 BushingBushing
