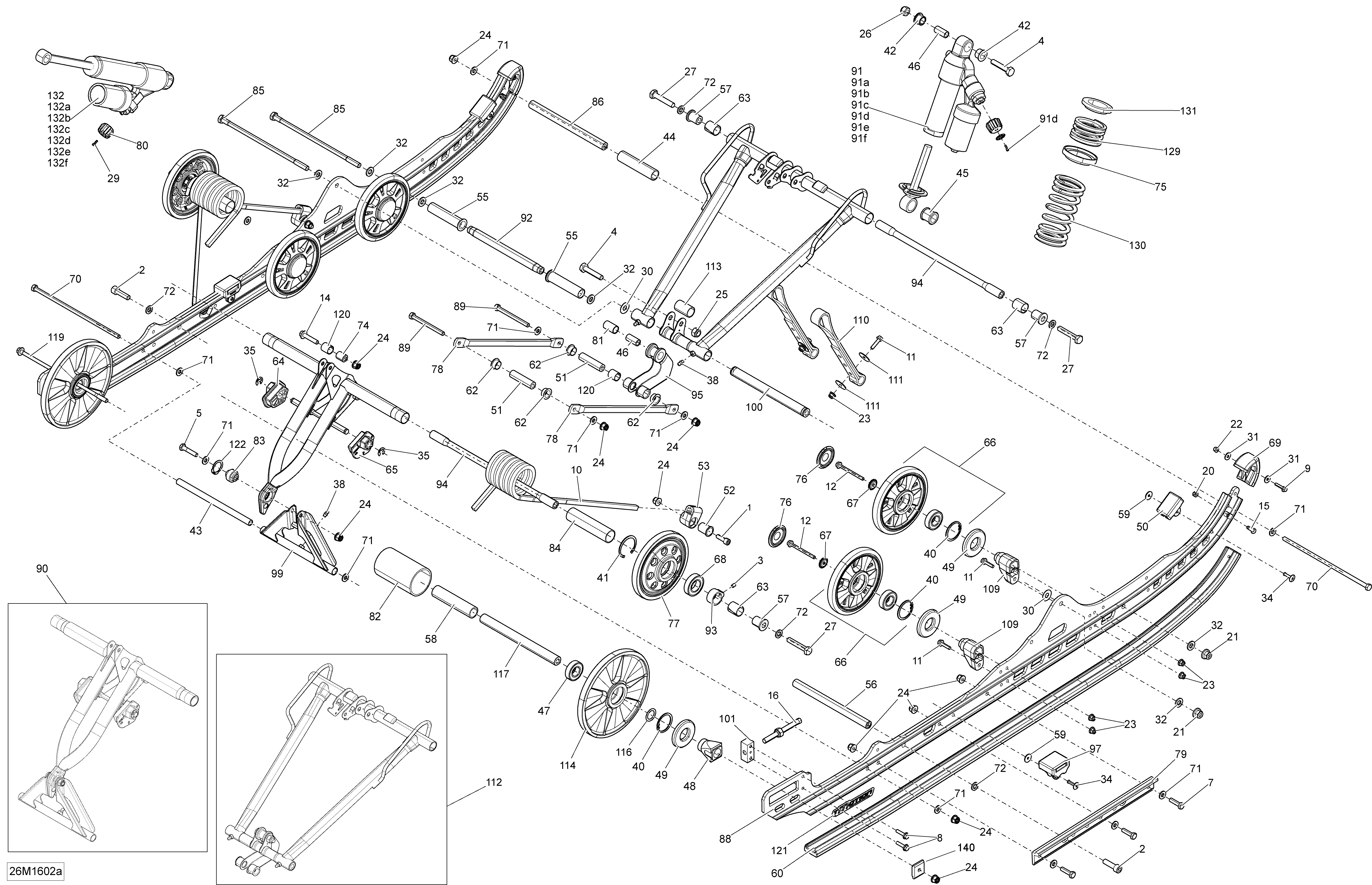

08- Rear Suspension - 146-154 для BRP Ski-Doo FREERIDE - 2016
-
№АртикулНазвание
-
1205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
2205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
3206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
4207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
5207084056 Hexagonal Screw M8 X 40Hexagonal Screw M8 X 40
-
7207183054 Hex. Cap Screw M8 X 30Hex. Cap Screw M8 X 30
-
8207562556 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
9207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
10503192136 Black LH Spring, SquareBlack LH Spring, Square
-
10503192137 Black RH Spring, SquareBlack RH Spring, Square
-
11207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
11207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
12207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
14207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
15208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
16230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
20232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
21233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
22233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
23233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
24233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
25233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
26233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
27250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
29250000644 Allen Screw M3 X 10Allen Screw M3 X 10
-
30250200032 WasherWasher
-
31250200140 WasherWasher
-
32250200143 Flat WasherFlat Washer
-
34293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
35293370013 E-CirclipE-Circlip
-
38408200700 Grease FittingGrease Fitting
-
40415129371 Retaining RingRetaining Ring
-
41415129780 Retaining RingRetaining Ring
-
42503189117 CushionCushion
-
43503189156 Pivot Arm AxlePivot Arm Axle
-
44503189265 SpacerSpacer
-
45503189271 CushionCushion
-
46503189282 BushingBushing
-
47503190396 Ball BearingBall Bearing
-
48503190428 Rear Wheel SpacerRear Wheel Spacer
-
49503190434 Labyrinth SealLabyrinth Seal
-
50503190576 Rubber StopperRubber Stopper
-
51503190643 Axle Bar (Long)Axle Bar (Long)
-
52503190754 Retainer CushionRetainer Cushion
-
53503191183 Spring SupportSpring Support
-
55503191259 Center BushingCenter Bushing
-
56503191260 Axle StrapAxle Strap
-
57503191262 BushingBushing
-
58503191263 Rear SpacerRear Spacer
-
59503191273 WasherWasher
-
60503191198 Slider Shoe 154''. 154''Slider Shoe 154''. 154''
-
60503191499 Slider Shoe 146''. 146''Slider Shoe 146''. 146''
-
62503191555 Swivel BushingSwivel Bushing
-
63503191556 Extended BushingExtended Bushing
-
64503191565 LH Cam AdjusterLH Cam Adjuster
-
65503191566 RH Cam AdjusterRH Cam Adjuster
-
66503191755 Black Wheel Ass'y, 152 mmBlack Wheel Ass'y, 152 mm
-
67503191820 Wheel Cup M6Wheel Cup M6
-
68503191982 Ball BearingBall Bearing
-
69503192299 Runner ProtectorRunner Protector
-
70503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
71503192494 WasherWasher
-
72503192496 WasherWasher
-
74503192606 Rear Shock AxleRear Shock Axle
-
75503192743 Spring SpacerSpring Spacer
-
76503192771 Black Wheel CapBlack Wheel Cap
-
77503192808 Black Wheel Ass'y, 155 mmBlack Wheel Ass'y, 155 mm
-
78503192900 Acceleration Link RodAcceleration Link Rod
-
79503193853 Black Runner ReinforcementBlack Runner Reinforcement
-
80503193033 Shock Adjuster KnobShock Adjuster Knob
-
81503193037 BushingBushing
-
82503193097 BushingBushing
-
83503193148 Spherical BearingSpherical Bearing
-
84503193218 BushingBushing
-
85503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
86503193332 Strap AxleStrap Axle
-
88503193610 Manta Green Runner 146''. 146''Manta Green Runner 146''. 146''
-
88503193612 Manta Green Runner 154''. 154''Manta Green Runner 154''. 154''
-
89503193372 Screw M8 X 90Screw M8 X 90
-
90503193419 Rear Arm Ass'yRear Arm Ass'y
-
91503194071 Center Shock. Includes 91 To 91fCenter Shock. Includes 91 To 91f
-
91A415093807 O-RingO-Ring
-
91b415093806 Piston RingPiston Ring
-
91c505070398 Air ValveAir Valve
-
91d505070399 ScrewScrew
-
91e505070400 O-RingO-Ring
-
91f415093804 O-RingO-Ring
-
92503193435 Pivot AxlePivot Axle
-
93503193439 Retaining RingRetaining Ring
-
94503193441 Upper ShaftUpper Shaft
-
95503193464 RockerRocker
-
97503193512 Rubber StopperRubber Stopper
-
99503193699 Pivot ArmPivot Arm
-
100503193702 Lower AxleLower Axle
-
101503193808 TensionerTensioner
-
109503193894 Casted SupportCasted Support
-
110503193991 Stopper StrapStopper Strap
-
111503193995 WasherWasher
-
112503194020 Front Arm Ass'yFront Arm Ass'y
-
113503194029 SpacerSpacer
-
114503194055 ROUE 200 Wheel 200ROUE 200 Wheel 200
-
116503194177 WasherWasher
-
117503194200 Rear AxleRear Axle
-
119503194265 BoltBolt
-
120505072663 Leg CushionLeg Cushion
-
121516006381 Runner DecalRunner Decal
-
122293370090 Inner CirclipInner Circlip
-
129503193479 Deep Black Spring (Short)Deep Black Spring (Short)
-
130503193065 Black Spring (Short)Black Spring (Short)
-
131503194270 Spring StopperSpring Stopper
-
132503192964 Rear Shock. Includes 132 To 132fRear Shock. Includes 132 To 132f
-
132a415093807 O-RingO-Ring
-
132b415093806 Piston RingPiston Ring
-
132c505070398 Air ValveAir Valve
-
132d505070399 ScrewScrew
-
132e505070400 O-RingO-Ring
-
132f415093804 O-RingO-Ring
-
140503194067 Slidder AxleSlidder Axle
