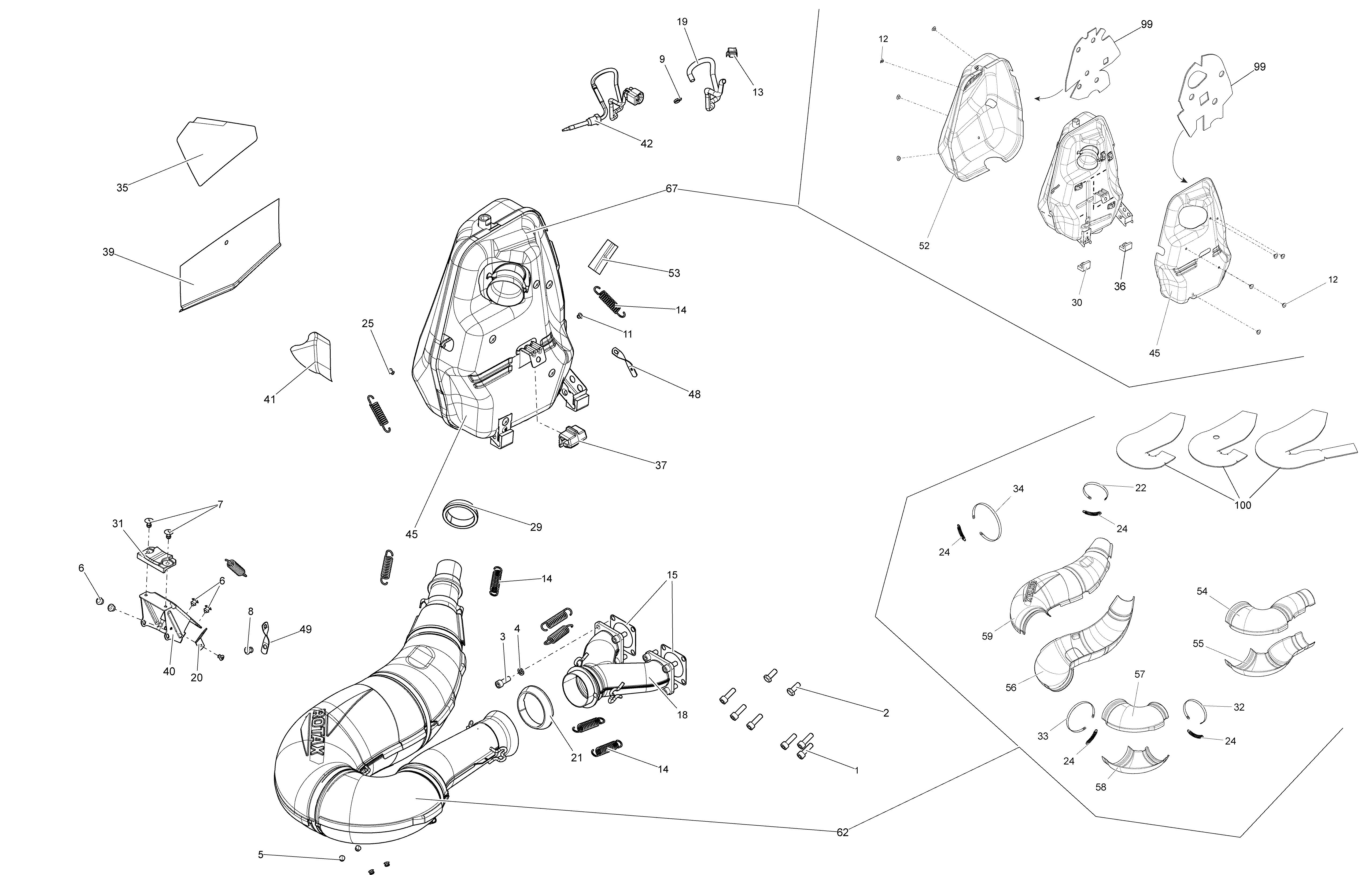

01- Exhaust System для BRP Ski-Doo GRAND TOURING - 2-STROKE - 2016
-
№АртикулНазвание
-
1514054626 Socket Head Screw M6 X 22, Scotch GripSocket Head Screw M6 X 22, Scotch Grip
-
2207182044 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
3250000414 Socket Head Screw M8 X 22Socket Head Screw M8 X 22
-
4514053953 WasherWasher
-
5293150091 Henrob RivetHenrob Rivet
-
6293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
7293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
8293150147 Hemlock RivetHemlock Rivet
-
9293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
11390909200 Avex RivetAvex Rivet
-
12390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
13414227300 ClipClip
-
14415107100 SpringSpring
-
15420850552 GasketGasket
-
18420673420 Exhaust ManifoldExhaust Manifold
-
19515175442 Tubing 6 mmTubing 6 mm
-
19515175442 Tubing 6 mmTubing 6 mm
-
20514053393 Spring BracketSpring Bracket
-
21514053487 Exhaust GasketExhaust Gasket
-
22514053499 Retaining StrapRetaining Strap
-
24514053643 SpringSpring
-
25293150144 Stavex RivetStavex Rivet
-
29514054174 Exhaust GasketExhaust Gasket
-
30514054274 Lower StopperLower Stopper
-
31514054275 BumperBumper
-
32514054408 Retaining StrapRetaining Strap
-
33514054409 Retaining StrapRetaining Strap
-
34514054410 Retaining StrapRetaining Strap
-
35514054488 Reflective SheetReflective Sheet
-
36514054496 Lower StopperLower Stopper
-
37514054606 Upper StopperUpper Stopper
-
39514054745 Reflective SheetReflective Sheet
-
40514054767 Exhaust Muffler SupportExhaust Muffler Support
-
41514054817 Heat ShieldHeat Shield
-
42514054870 Temperature SensorTemperature Sensor
-
45514054967 LH DeflectorLH Deflector
-
48514054974 Spring BracketSpring Bracket
-
49514054975 Spring BracketSpring Bracket
-
52514054985 RH DeflectorRH Deflector
-
53514054987 Heat ShieldHeat Shield
-
54514054988 Front Upper Half EnveloppeFront Upper Half Enveloppe
-
55514054989 Front Lower Half EnveloppeFront Lower Half Enveloppe
-
56514054990 Rear Lower Half EnveloppeRear Lower Half Enveloppe
-
57514054992 Front Upper Half EnveloppeFront Upper Half Enveloppe
-
58514054993 Front Lower Half EnveloppeFront Lower Half Enveloppe
-
59514055039 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
62514055065 Exhaust Tuned PipeExhaust Tuned Pipe
-
67514054970 Muffler Ass'yMuffler Ass'y
-
99514054711 RH Insulating WoolRH Insulating Wool
-
99514054299 LH Insulating WoolLH Insulating Wool
-
100514054487 Insulating WoolInsulating Wool
