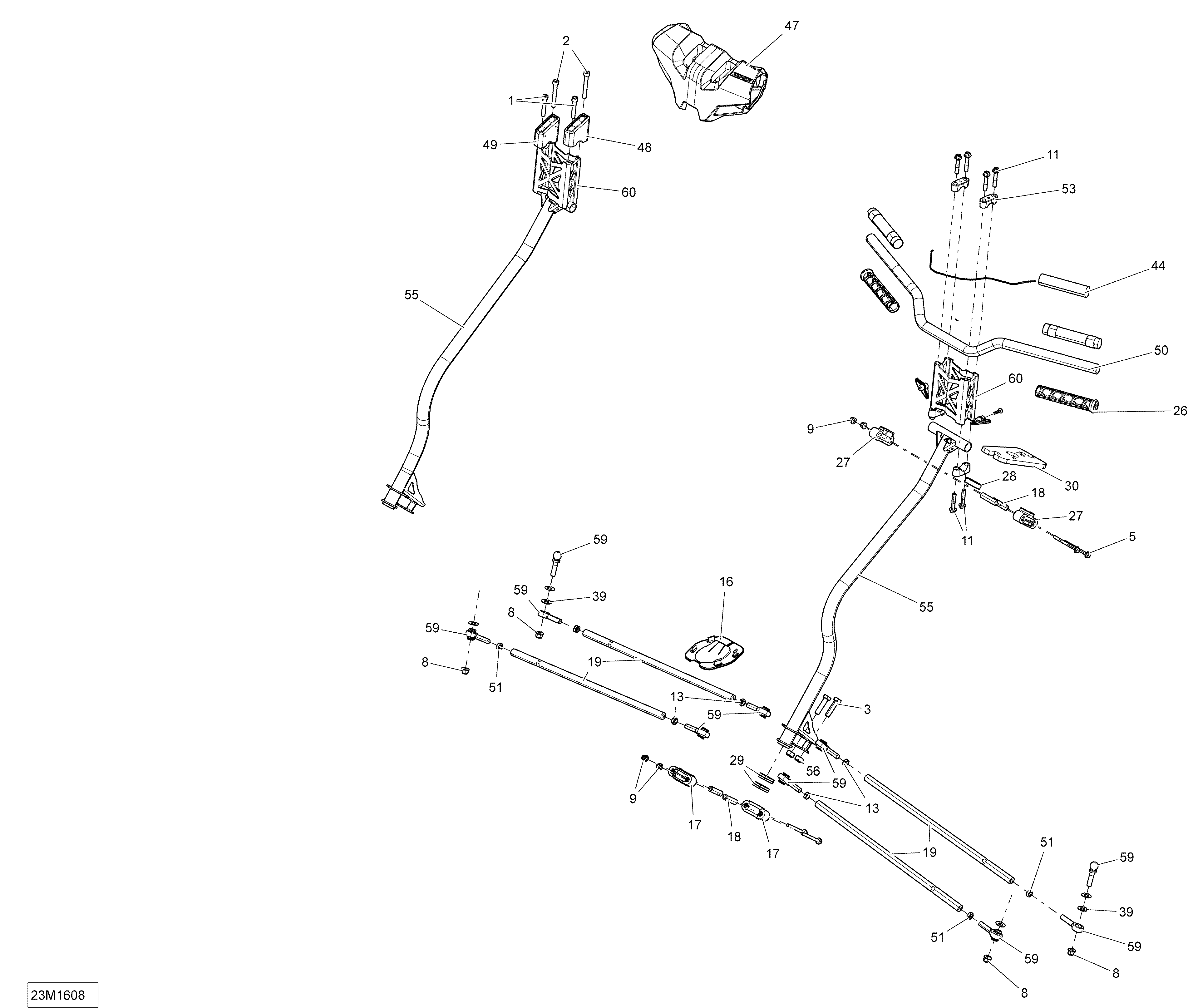

07- Steering для BRP Ski-Doo GRAND TOURING - 2-STROKE - 2016
-
№АртикулНазвание
-
1205084560 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
2205086060 Socket Head Screw M8 X 60Socket Head Screw M8 X 60
-
3207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
5207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
8233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
9233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
11250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
13250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
16506152163 PlatePlate
-
17506152217 Lower Half-HousingLower Half-Housing
-
18506152297 Housing BushingHousing Bushing
-
19506152496 Tie-RodTie-Rod
-
22506152423 InsulantInsulant
-
26506152501 GripGrip
-
27506152508 Upper Half-HousingUpper Half-Housing
-
28506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
29506152518 Lower Vibration RingLower Vibration Ring
-
39506152582 WasherWasher
-
44506152681 Heated FilmHeated Film
-
47506152721 Steering PadSteering Pad
-
48506152729 LH Handlebar SupportLH Handlebar Support
-
49506152730 RH Handlebar SupportRH Handlebar Support
-
50
-
51732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
53506152750 Steering SupportSteering Support
-
53548873704 Steering SupportSteering Support
-
55506152839 Tube Main WeldTube Main Weld
-
56233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
59506152081 LH Thread Ball JointLH Thread Ball Joint
-
59506152684 RH Thread Ball JointRH Thread Ball Joint
-
60506152759 Handlebar Extension 115Handlebar Extension 115
