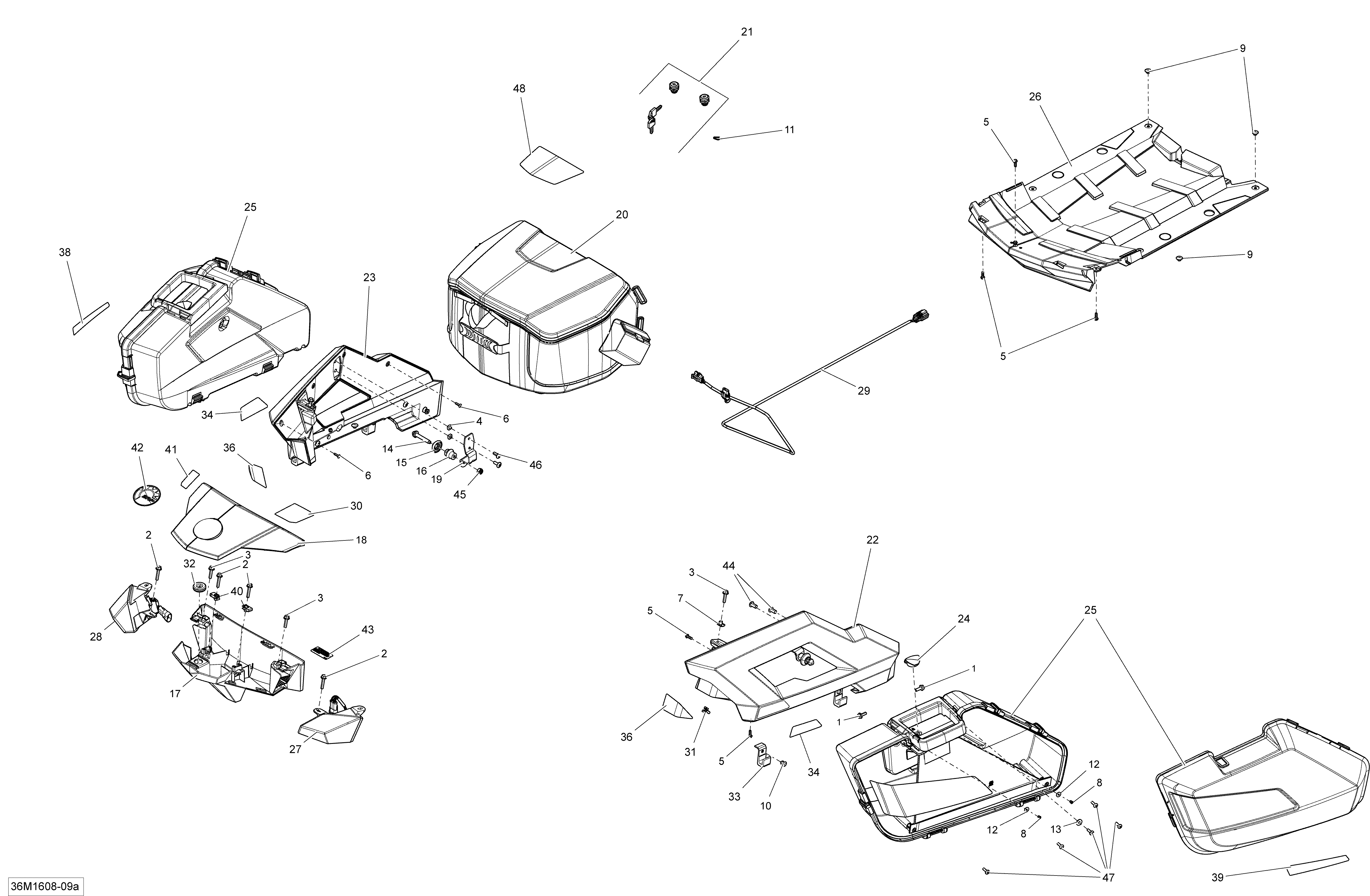

09- Luggage Rack для BRP Ski-Doo GRAND TOURING - 2-STROKE - 2016
-
№АртикулНазвание
-
1207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
2207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
3207662584 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
4232862412 Square Nut M6Square Nut M6
-
5241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
6250000294 Torx Screw K40 X 16Torx Screw K40 X 16
-
7293100003 Nut M6Nut M6
-
8293150006 Pop Rivet 1/8''Pop Rivet 1/8''
-
9293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
10293150147 Hemlock RivetHemlock Rivet
-
11293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
12391301000 WasherWasher
-
13391301600 WasherWasher
-
14511000337 Suitcase StudSuitcase Stud
-
15511000358 Rubber BumperRubber Bumper
-
16511000423 Stud NutStud Nut
-
17511000530 Rack Ass'yRack Ass'y
-
18511000545 CoverCover
-
19511000580 Saddle Bag Lug SupportSaddle Bag Lug Support
-
20860200174 Rear Travel BagRear Travel Bag
-
21511000599 LockLock
-
22511000631 RH Arm Ass'yRH Arm Ass'y
-
23511000632 LH Arm Ass'yLH Arm Ass'y
-
24511000639 Black Sealing CapBlack Sealing Cap
-
25511001077 RH Suit CaseRH Suit Case
-
26511000861 Radiator CoverRadiator Cover
-
27515176849 RH Tail Light Ass'yRH Tail Light Ass'y
-
28515176850 LH Tail Light Ass'yLH Tail Light Ass'y
-
29515178022 HarnessHarness
-
30516004603 Warning Decal, SecurityWarning Decal, Security
-
31517302785 ClipClip
-
32517303756 GrommetGrommet
-
33518325618 Support PlateSupport Plate
-
34520000729 Red RH Rear ReflectorRed RH Rear Reflector
-
34520000730 Red LH Rear ReflectorRed LH Rear Reflector
-
36520000731 Red RH Rear ReflectorRed RH Rear Reflector
-
36520000732 Red LH Rear ReflectorRed LH Rear Reflector
-
38520000756 Red LH Rear ReflectorRed LH Rear Reflector
-
39520000757 Red RH Rear ReflectorRed RH Rear Reflector
-
40250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
41516006912 Warning DecalWarning Decal
-
42219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
43516005523 Warning DecalWarning Decal
-
44250000751 Torx Screw M8 X 16Torx Screw M8 X 16
-
45232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
46250000721 Torx ScrewTorx Screw
-
47250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
48516007293 DecalDecal
