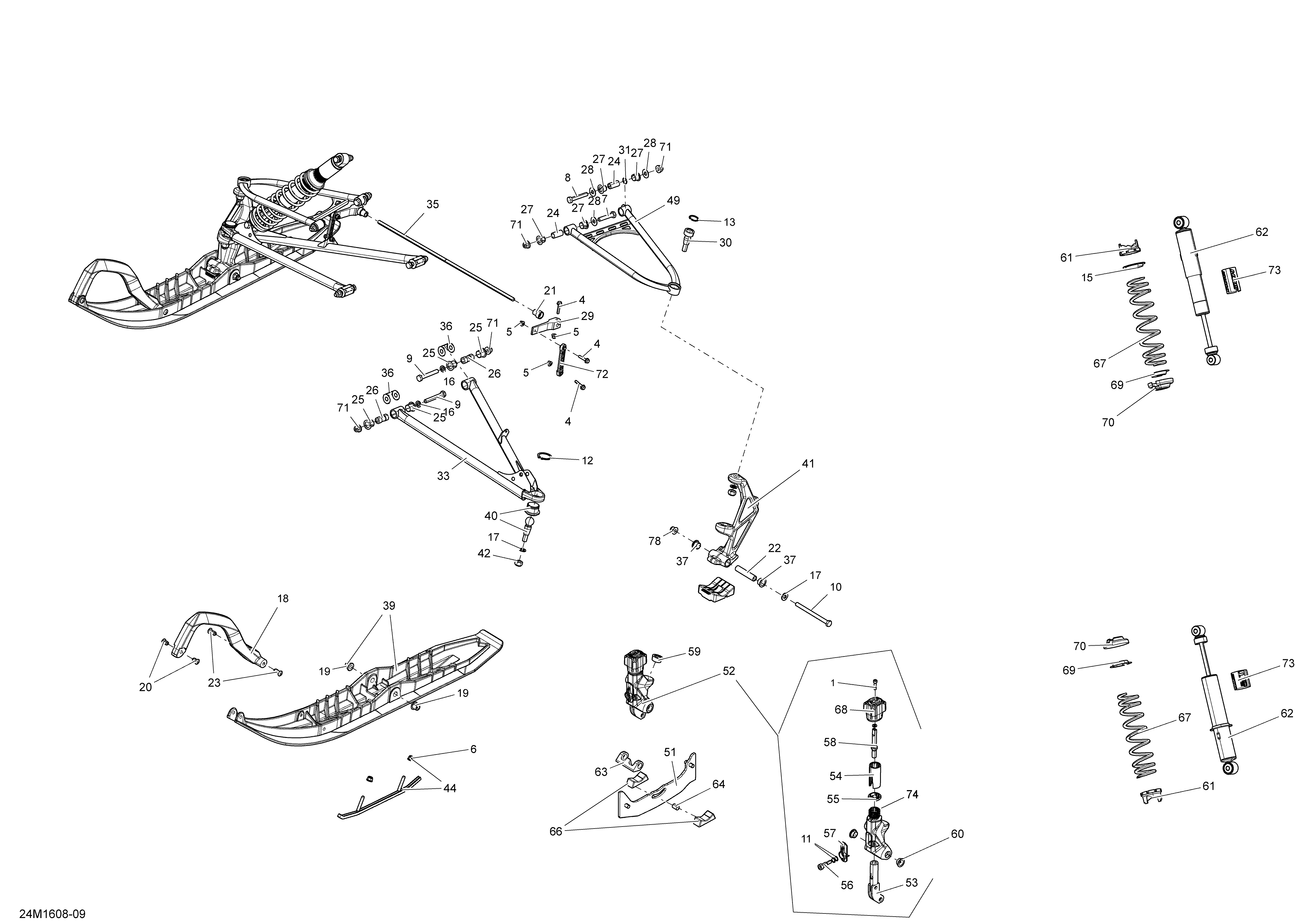

07- Front Suspension And Ski для BRP Ski-Doo GRAND TOURING - 2-STROKE - 2016
-
№АртикулНазвание
-
1250000925 Socket Head Screw M6 X 25, Scotch GripSocket Head Screw M6 X 25, Scotch Grip
-
2207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
3207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
4207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
5233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
8250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
9250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
10250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
11293300013 O-RingO-Ring
-
12293370035 CirclipCirclip
-
13293370070 CirclipCirclip
-
15503187500 Spring GuideSpring Guide
-
16503189564 WasherWasher
-
17503192491 WasherWasher
-
18505070963 Black HandleBlack Handle
-
19505071781 CushionCushion
-
20505071812 RetainerRetainer
-
21505072445 BushingBushing
-
22506133300 SpacerSpacer
-
23505072133 RetainerRetainer
-
24505072143 BushingBushing
-
25505072208 BushingBushing
-
26505072209 BushingBushing
-
27505072250 BushingBushing
-
28505072392 WasherWasher
-
29505072446 Stabilisator LeverStabilisator Lever
-
30505072913 Upper Ball JointUpper Ball Joint
-
31505072448 O-RingO-Ring
-
33505073420 Black LH Lower Arm. Except Sport PackageBlack LH Lower Arm. Except Sport Package
-
33505072665 Black LH Lower Arm. Sport PackageBlack LH Lower Arm. Sport Package
-
33505073426 Black RH Lower Arm. Except Sport PackageBlack RH Lower Arm. Except Sport Package
-
33505072664 Black RH Lower Arm. Sport PackageBlack RH Lower Arm. Sport Package
-
35505072444 StabilisatorStabilisator
-
36505072634 Wear PlateWear Plate
-
37505072690 Leg CushionLeg Cushion
-
39505072443 Pilot Ski SL Ass'yPilot Ski SL Ass'y
-
40505073636 Ball JointBall Joint
-
41505073807 Black LH Ski LegBlack LH Ski Leg
-
41505073808 Black RH Ski LegBlack RH Ski Leg
-
42232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
44860201043 Round Carbide RunnerRound Carbide Runner
-
49505073416 RH Upper Arm 42''. Except Sport PackageRH Upper Arm 42''. Except Sport Package
-
49505073463 RH Upper Arm 42''. Sport PackageRH Upper Arm 42''. Sport Package
-
49505073462 LH Upper Arm 42''. Sport PackageLH Upper Arm 42''. Sport Package
-
49505073412 LH Upper Arm 42''. Except Sport PackageLH Upper Arm 42''. Except Sport Package
-
51860201178 Carbide Runner KitCarbide Runner Kit
-
52505073789 Black LH SupportBlack LH Support
-
53505073761 TipTip
-
54415130043 Repair KitRepair Kit
-
55415130043 Repair KitRepair Kit
-
56505073767 ScrewScrew
-
57415130043 Repair KitRepair Kit
-
58505073771 ShaftShaft
-
59505073772 GrommetGrommet
-
60505073773 BushingBushing
-
61505073625 Adjustment CamAdjustment Cam
-
62505073235 Front ShockFront Shock
-
63505073779 Ski StopperSki Stopper
-
64505073782 PinPin
-
66505073788 Ski StopperSki Stopper
-
67505072119 Deep Black SpringDeep Black Spring
-
68415130043 Repair KitRepair Kit
-
69706200785 CapCap
-
70706200881 Spring StopperSpring Stopper
-
71250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
72505072204 Double Ball Joint LinkDouble Ball Joint Link
-
73516005533 Shock Decal, McShock Decal, Mc
-
74505073785 SpringSpring
