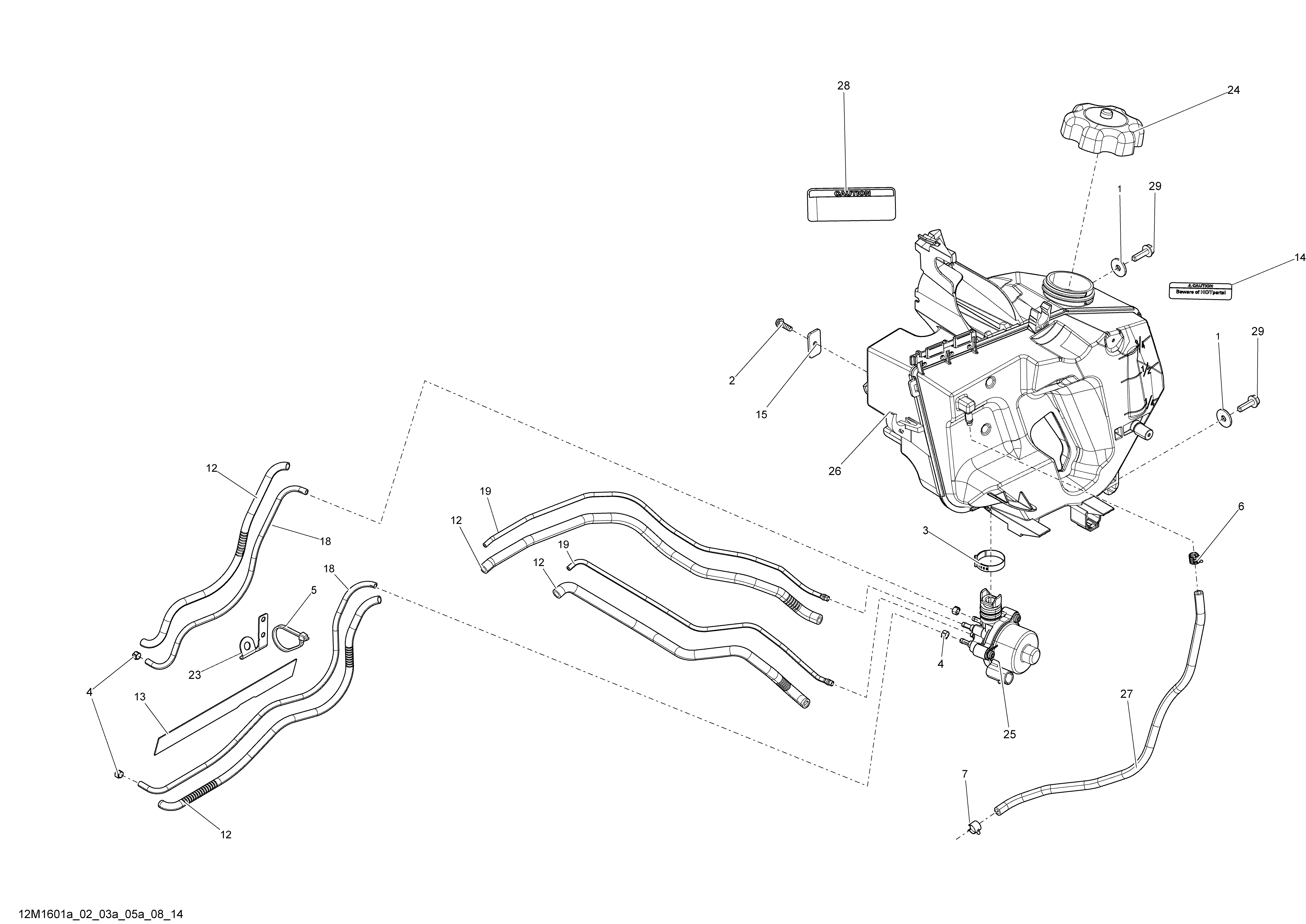

02- Oil System для BRP Ski-Doo GRAND TOURING - 2-STROKE - 2016
-
№АртикулНазвание
-
1224061201 Flat WasherFlat Washer
-
2241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
3293650099 Crimp ClampCrimp Clamp
-
4293650100 Oetiker ClampOetiker Clamp
-
5293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
6414420700 Spring ClampSpring Clamp
-
7414554800 Spring ClampSpring Clamp
-
12515175442 Tubing 6 mmTubing 6 mm
-
13516004648 Protection DecalProtection Decal
-
14516005280 Caution Decal, Hot Parts. TundraCaution Decal, Hot Parts. Tundra
-
15519000179 BracketBracket
-
18519000182 Hose 3.5 mmHose 3.5 mm
-
19519000184 Hose 2.5 mmHose 2.5 mm
-
23519000245 BracketBracket
-
24519000273 CapCap
-
25519000305 Oil PumpOil Pump
-
26519000311 Oil TankOil Tank
-
27415080200 Hose, PolyurethaneHose, Polyurethane
-
28516007443 Warning DecalWarning Decal
-
29250000768 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
