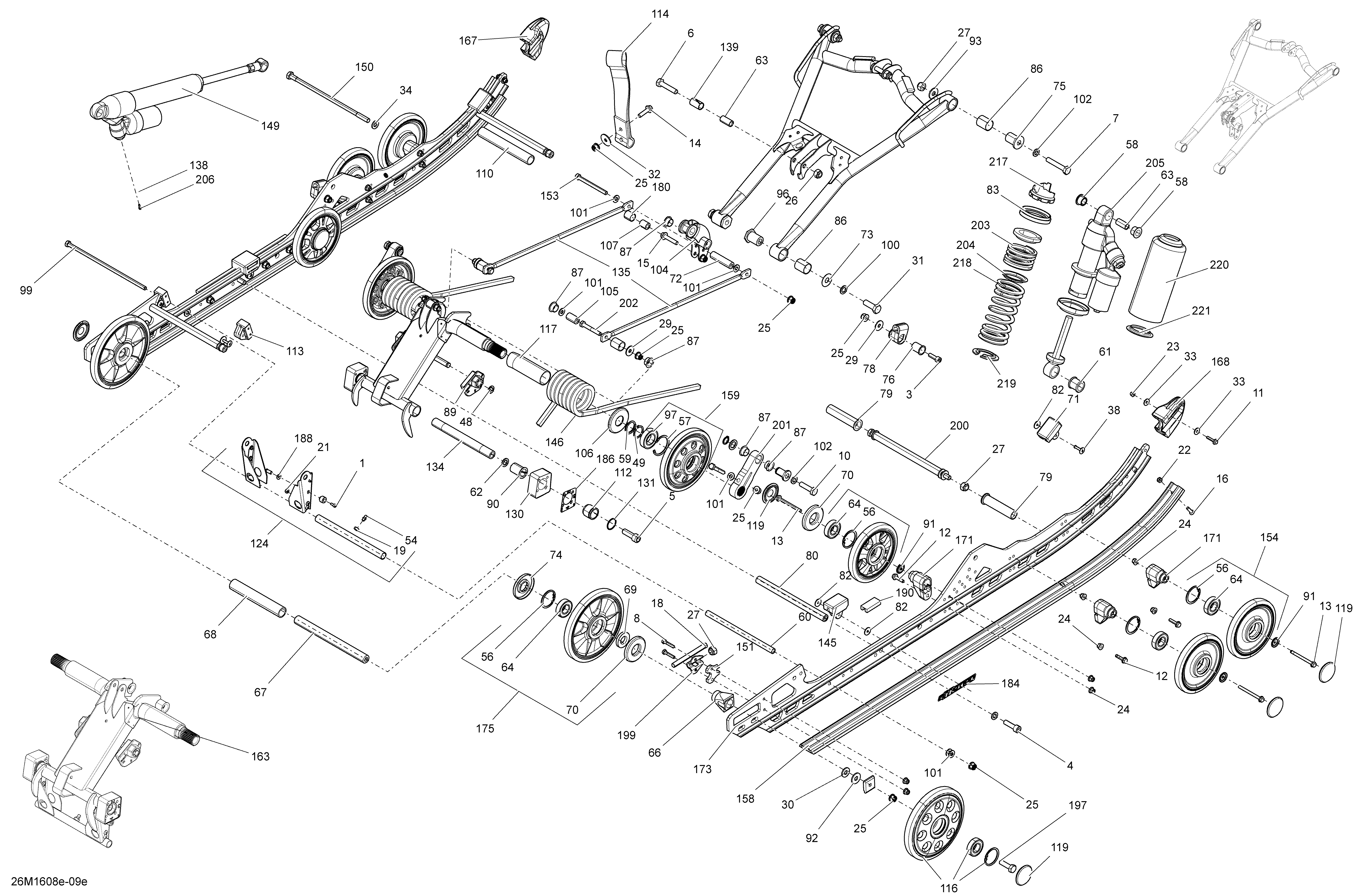

08- Rear Suspension для BRP Ski-Doo GRAND TOURING - 2-STROKE - 2016
-
№АртикулНазвание
-
1205041060 Socket Head Screw M4X 10Socket Head Screw M4X 10
-
3205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
4205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
5205523554 Socket Head Screw M12 X 35Socket Head Screw M12 X 35
-
6207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
7207006056 Hex. Cap Screw M10 X 60Hex. Cap Screw M10 X 60
-
8207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
10207204056 Cap Screw Hex. M10 X 40Cap Screw Hex. M10 X 40
-
11207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
12207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
13207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
14207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
15207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
16208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
18230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
19232061404 Hexagonal Nut M6Hexagonal Nut M6
-
21232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
22232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
23233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
24233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
25233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
26233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
27233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
29234082410 Flat Washer 8 mmFlat Washer 8 mm
-
30234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
31250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
32250200128 Flat Washer 8 mmFlat Washer 8 mm
-
33250200140 WasherWasher
-
34250200143 Flat WasherFlat Washer
-
38293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
38390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
48293370013 E-CirclipE-Circlip
-
49293370080 Retaining RingRetaining Ring
-
54408200700 Grease FittingGrease Fitting
-
56415129371 Retaining RingRetaining Ring
-
57415129780 Retaining RingRetaining Ring
-
58503189117 CushionCushion
-
59503189146 Axle SpringAxle Spring
-
60503189156 Pivot Arm AxlePivot Arm Axle
-
61503189271 CushionCushion
-
62503189276 WasherWasher
-
63503189282 BushingBushing
-
64503190396 Ball BearingBall Bearing
-
66503190428 Rear Wheel SpacerRear Wheel Spacer
-
67503190429 Rear AxleRear Axle
-
68503190430 SpacerSpacer
-
69503190432 WasherWasher
-
70503190434 Labyrinth SealLabyrinth Seal
-
71503190576 Rubber StopperRubber Stopper
-
72503190643 Axle Bar (Long)Axle Bar (Long)
-
73503190656 WasherWasher
-
74503190682 Labyrinth SealLabyrinth Seal
-
75503190698 AxleAxle
-
76503190754 Retainer CushionRetainer Cushion
-
78503191183 Spring SupportSpring Support
-
79503191259 Center BushingCenter Bushing
-
80503191260 Axle StrapAxle Strap
-
82503191273 WasherWasher
-
83503191281 Spring SpacerSpring Spacer
-
86503191554 BushingBushing
-
87503191555 Swivel BushingSwivel Bushing
-
89503191566 RH Cam AdjusterRH Cam Adjuster
-
89503191565 LH Cam AdjusterLH Cam Adjuster
-
90503191640 CushionCushion
-
91503191820 Wheel Cup M6Wheel Cup M6
-
92503191910 WasherWasher
-
93503191926 WasherWasher
-
96503191966 Lower AxleLower Axle
-
97503191982 Ball BearingBall Bearing
-
99503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
100503192491 WasherWasher
-
101503192494 WasherWasher
-
102503192496 WasherWasher
-
104503192531 RockerRocker
-
105503192555 Axle BarAxle Bar
-
106503192592 Labyrinth RingLabyrinth Ring
-
107503192606 Rear Shock AxleRear Shock Axle
-
110503192678 SpacerSpacer
-
112503192749 Guide BlockGuide Block
-
113503192750 Rubber StopperRubber Stopper
-
114503192360 Stopper StrapStopper Strap
-
116503192766 Deep Black Wheel Ass'y, 180 mmDeep Black Wheel Ass'y, 180 mm
-
117503192767 BushingBushing
-
119503192771 Black Wheel CapBlack Wheel Cap
-
124503192823 Pivot Arm Ass'yPivot Arm Ass'y
-
130503192919 RH Cam BlockRH Cam Block
-
130503192918 LH Cam BlockLH Cam Block
-
131503192921 O-RingO-Ring
-
134503192981 Lower ShaftLower Shaft
-
135503193005 Link RodLink Rod
-
139503193037 BushingBushing
-
145503193101 Rubber StopperRubber Stopper
-
146503193538 Black RH Spring, SquareBlack RH Spring, Square
-
146503193539 Black LH Spring, SquareBlack LH Spring, Square
-
149503193646 Rear Shock HPG Ass'yRear Shock HPG Ass'y
-
150503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
151503193250 SpacerSpacer
-
153503193372 Screw M8 X 90Screw M8 X 90
-
154503193376 Deep Black Wheel Ass'y, 147 mmDeep Black Wheel Ass'y, 147 mm
-
158503193449 Black Slider Shoe 137''Black Slider Shoe 137''
-
159503193451 Black Wheel Ass'y 165 mmBlack Wheel Ass'y 165 mm
-
163503193617 Rear Arm Ass'yRear Arm Ass'y
-
167503193724 LH ProtectorLH Protector
-
168503193725 RH ProtectorRH Protector
-
171503193894 Casted SupportCasted Support
-
172503193971 Front Arm Ass'yFront Arm Ass'y
-
173503193960 Black Runner 137''Black Runner 137''
-
175503194050 Deep Black Wheel Ass'y, 180 mmDeep Black Wheel Ass'y, 180 mm
-
180505072663 Leg CushionLeg Cushion
-
184516004755 Runner DecalRunner Decal
-
186516004901 RH Block Sticker DecalRH Block Sticker Decal
-
186516004900 LH Block Sticker DecalLH Block Sticker Decal
-
188517225900 Flat WasherFlat Washer
-
190572084800 Reinforcement StopperReinforcement Stopper
-
197250000817 Hex Screw With Nilon Patch, M10 X 35Hex Screw With Nilon Patch, M10 X 35
-
199503192583 TensionerTensioner
-
200503193435 Pivot AxlePivot Axle
-
201503193069 Link Ass'yLink Ass'y
-
202207085586 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
205503193444 Central ShockCentral Shock
-
217505073625 Adjustment CamAdjustment Cam
-
218503193067 Black Spring (Short)Black Spring (Short)
-
218503193837 Black Spring (Short)Black Spring (Short)
-
219706200881 Spring StopperSpring Stopper
-
220503193663 ProtectorProtector
-
221503191872 Spring GuideSpring Guide
